11. Maintenance and Inspection
160

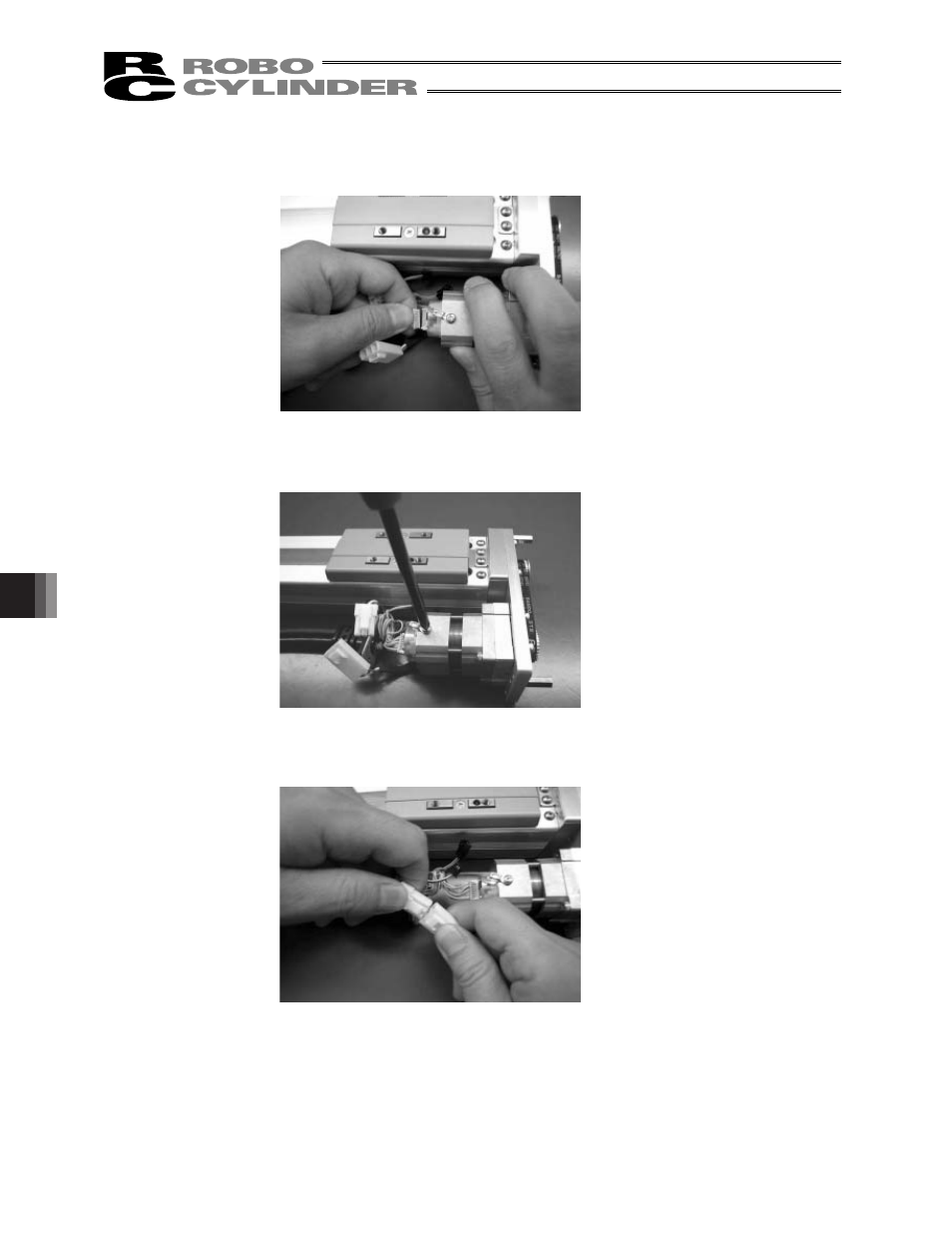

13) Install the attached cables.
�
While holding the motor with one hand, insert the encoder cable.
(The photograph bellow shows the motor (Encoder by IAI).)
�
Install a grounding wire using a Phillips driver.
�
Plug the cables into the motor.
�
If the actuator has a brake, also plug in the brake connector.
