11. Maintenance and Inspection
157

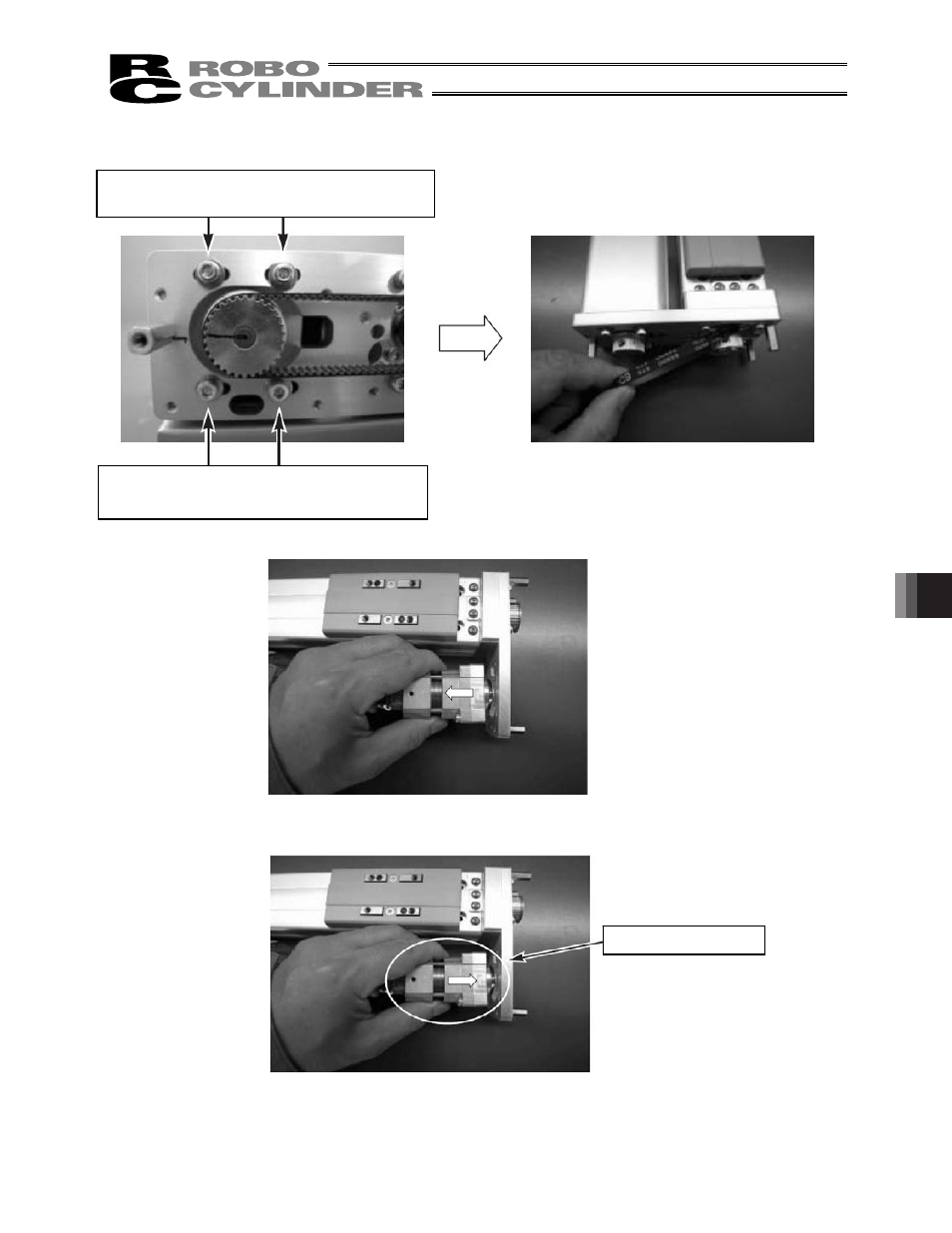

7) Loosen the motor-unit affixing bolts using an Allen wrench of 2.5 mm across flats. Slide the motor, and loosen
and remove the belt. After the belt has been removed, remove the motor-unit affixing bolts.
8) Take out the motor.
9) Install the replacement motor. Loosely tighten the motor-unit affixing bolts.
Motor-unit affixing bolts
(Use an Allen wrench of 2.5 mm across flats.)
Motor-unit affixing bolts
(Use an Allen wrench of 2.5 mm across flats.)
Replacement motor
