11. Maintenance and Inspection
98

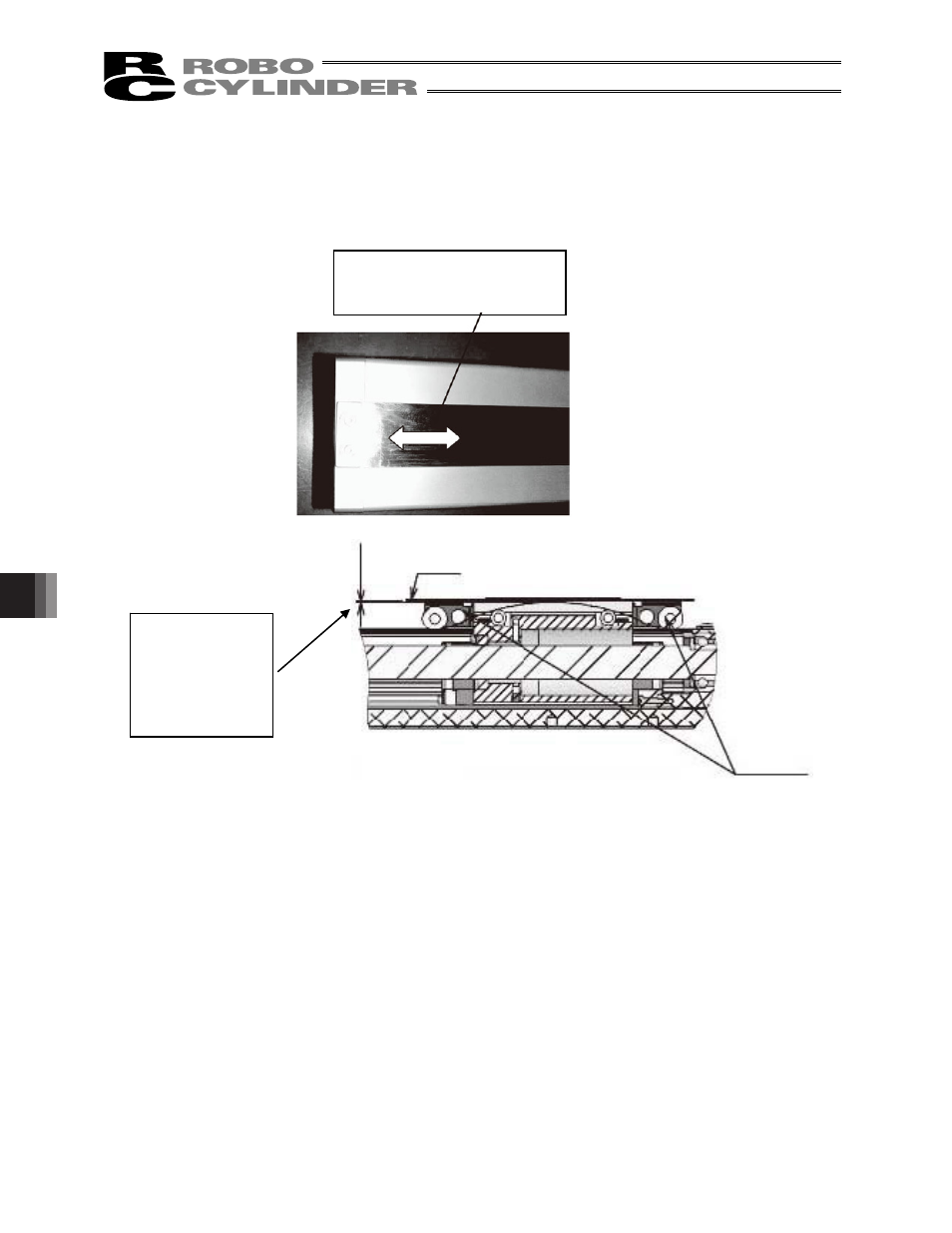

5) Adjust the tension of the stainless sheet.
[1]Pass a scale or other flat object over the front and rear roller assemblies and move the loosened side of the
stainless sheet in the directions of the arrows until the clearance between the stainless sheet and scale
becomes approx. 1 mm. Be sure to visually confirm that the stainless sheet is not contacting any location
other than the rollers.
[2] When the stainless sheet has been properly positioned, tighten the screws on the loose end to a level that
the stainless sheet no longer moves.
[3] Move the slider and check the tension of the stainless sheet along the entire stroke.
Move the stainless sheet in the
directions of the arrows to adjust
the tension.
(1
)
Make adjustment
so that the
clearance between
the stainless sheet
and scale becomes
approx. 1 mm.
Scale
Roller assemblies
