11. Maintenance and Inspection
147

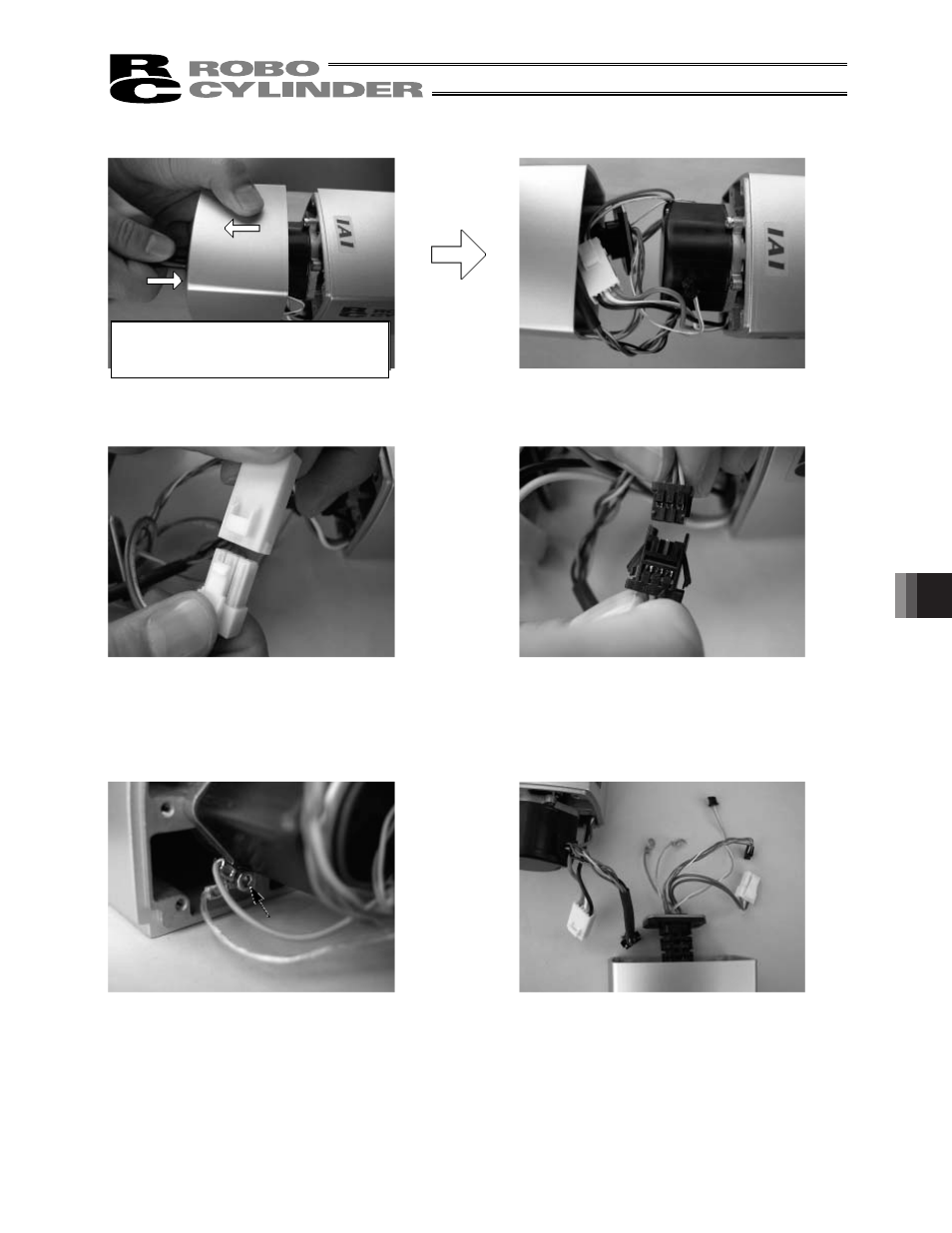

3) Pull out the motor-end cap.
4) Remove the attached cables.
�
Pull out the motor connector.
�
Pull out the encoder connector.
* If the actuator is equipped with a brake, pull out the brake connector.
�
Remove the attached cables.
�
Remove the bolts affixing the
grounding and shield wires using an
Allen wrench of 2.5 mm across flats.
Push in the cable end while pulling
out the motor-end cap.
