5. Installation
52
[RCS3(P) (CR)]
[SA8] [SS8]

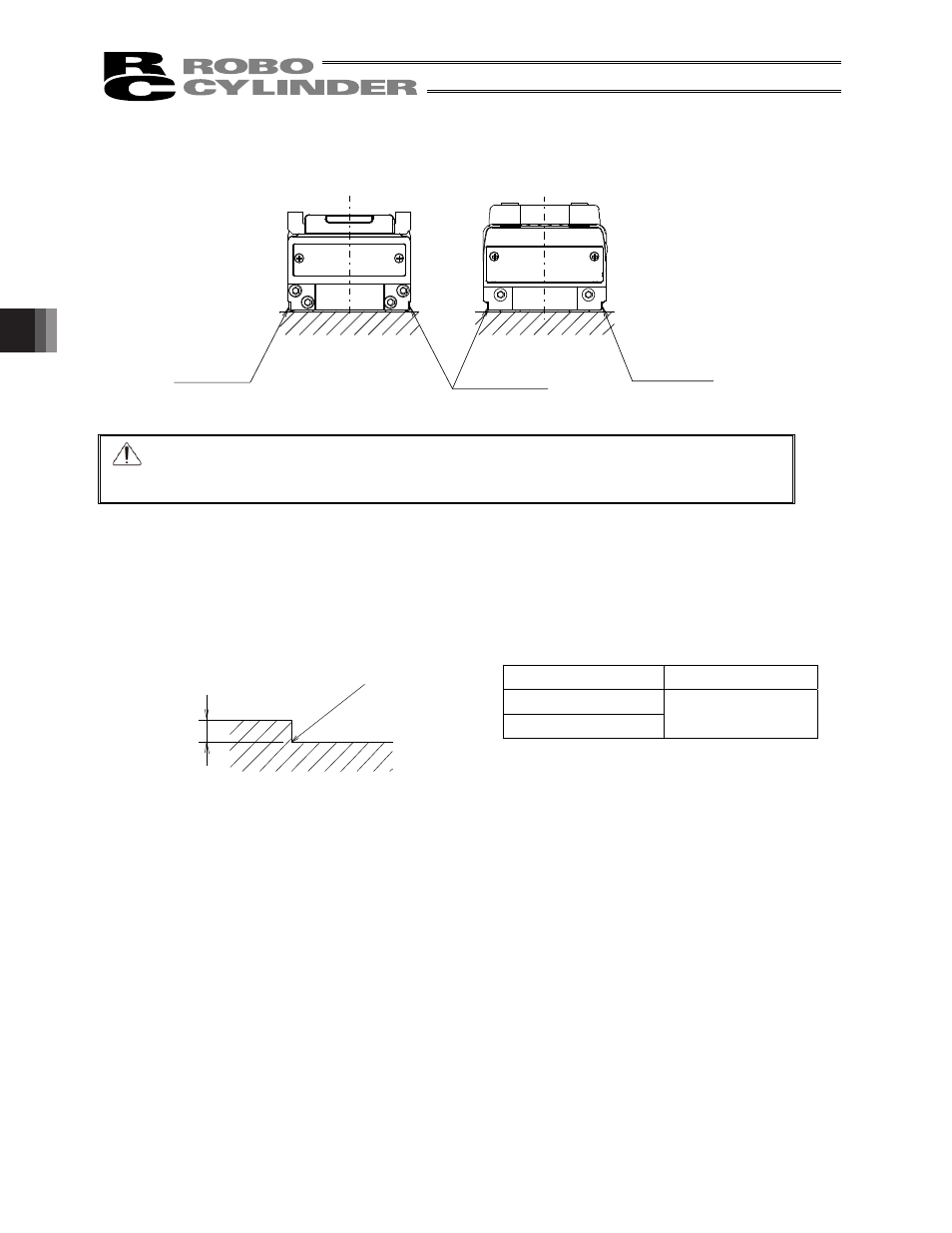

Caution: As shown above, the side faces of the base provide the reference planes for
slider travel. When precision is required, use these surfaces as the reference
planes for mounting.
When using the base as the reference planes for mounting the actuator to the machine frame, follow the
machining dimensions shown below.
A
Model Dimension A [mm]
RCS3(P) (CR)-SA8
RCS3(P) (CR)-SS8
2 to 4.5 or less
(side face of the base)
Reference plane
(side face of the base)
Reference plane
(side face of the base)
Reference plane
R0.3 or less
