7. Setting the Home
63

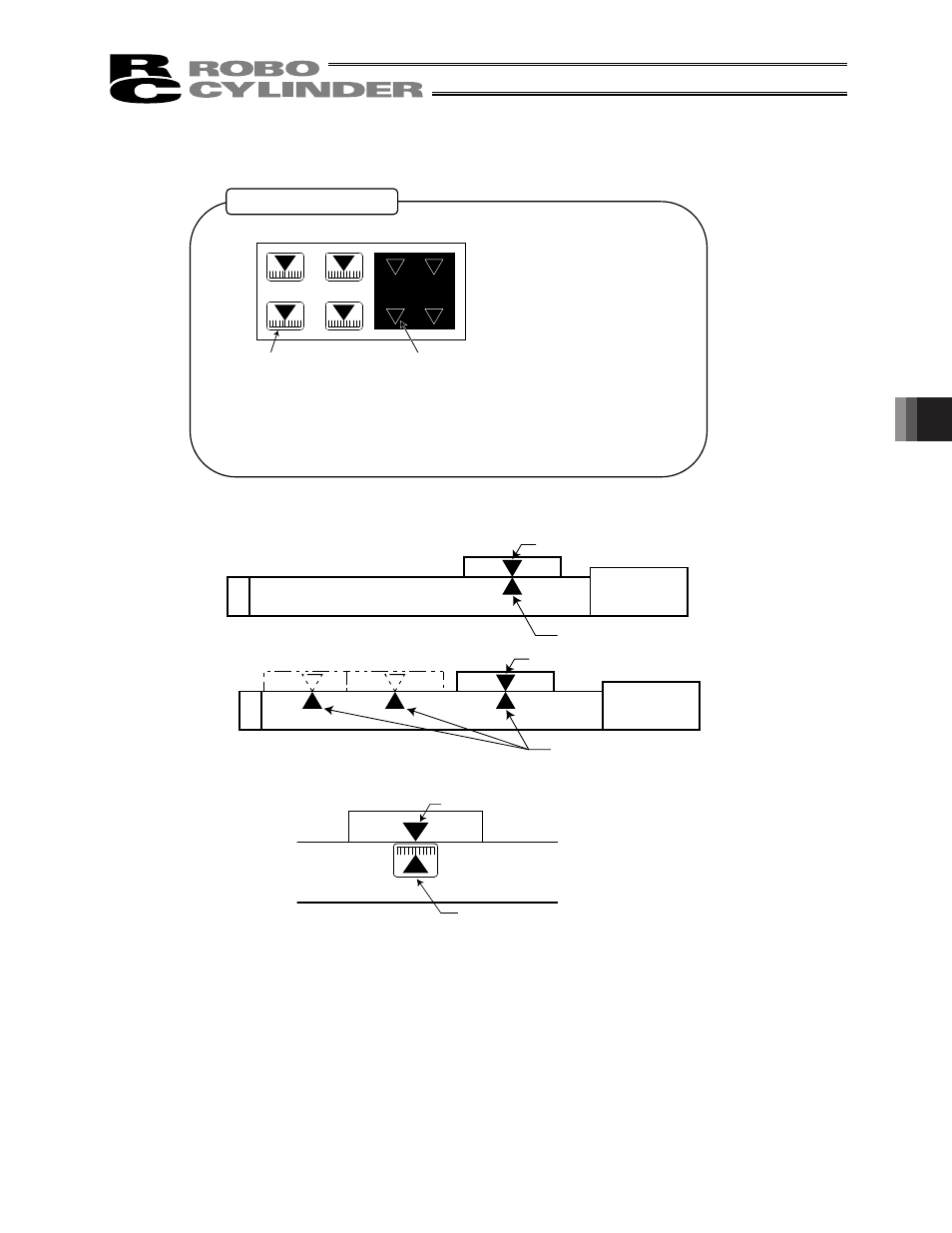

7.4 How to Use the Home Mark
� Please affix these marks to the actuator as home markers as needed.
Home mark sticker
Home mark scale x 4 Home mark x 4
(Scale: 1 mm graduation mark, 10 mm width)
� Peel off the marks from the base sheet.
Note 1. Every mark has sticky back.
2. Remove smear and stain from the surface.
3. Avoid label or nameplate as a marking location.
Example of Use
[1] Attach the seals as a guide for the direction of actuator home.
[2] Attach the seals as a guide for stop positions
[3] Attach the seals as a guide for position deviation check.
� Attach the two seals while the actuator is stopped at its home.
Contents of sticker
On the slider
On the base
Motor
Motor
On the slider
x 1 sheet
At home on the base
At stop positions on the base
On the slider
