8. SampleSlit for Position
Adjustment
70

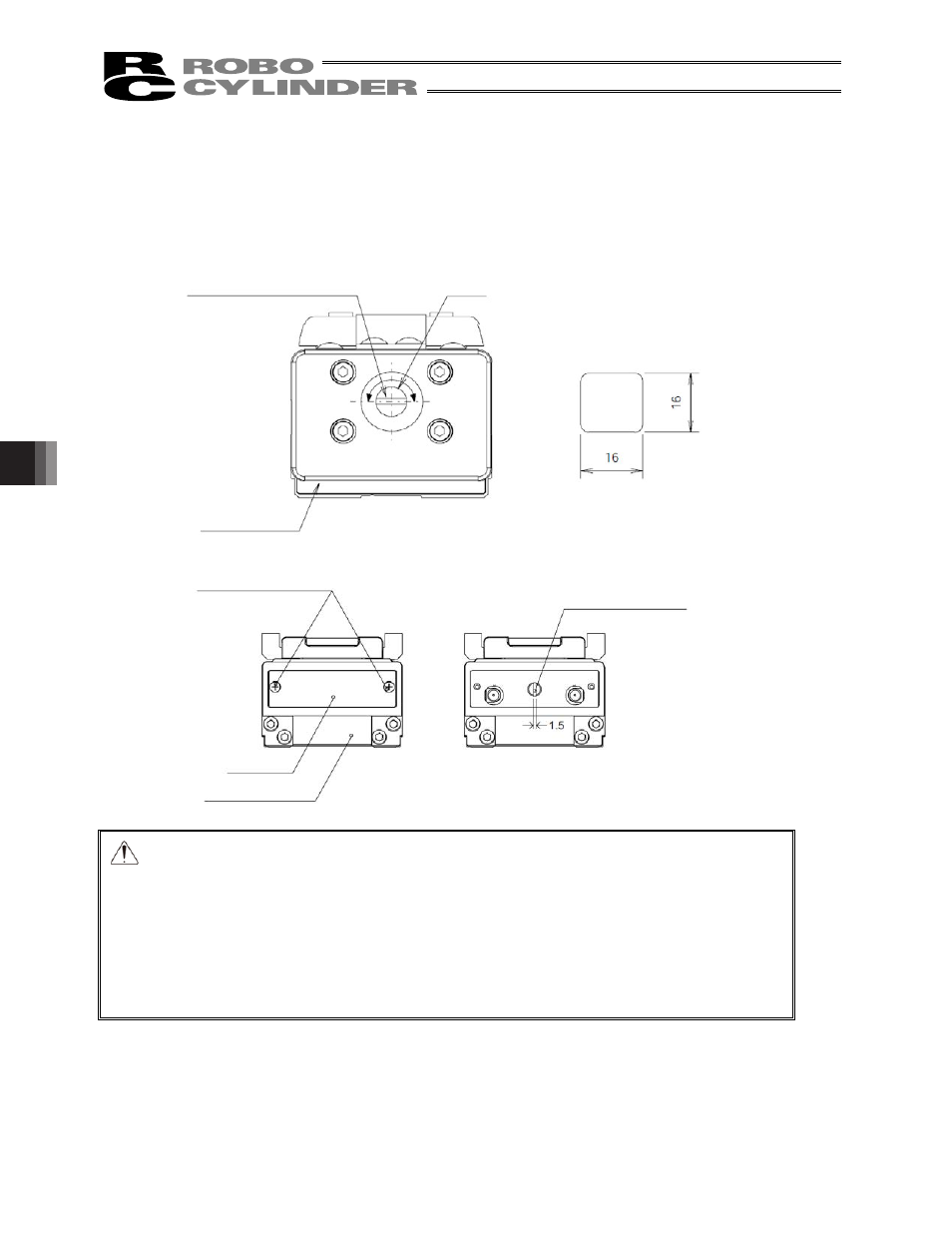

� 8 hole Slit for position adjustment.
Front cover
Supplied seal
For position
adjustment
8. Slit for Position Adjustment
A hole is provided in the front cover on the counter-motor side, with a slit machined on the ball screw shaft.
Use this slit if you want to fine-tune the slider position (for direct teaching, etc.).
Insert a screwdriver with an outer diameter of �8 mm or less into the slit, and turn the driver.
[RCS2 (CR)]
[RCS3(P)(CR)]
Caution: Be sure to operate the slit when the servo is off.
Do not insert a finger or object in this hole while the slider is moving, as it is very
dangerous.
While the slit is not in use, attach the supplied seal or equivalent to cover the hole.
If the hole remains exposed, a finger or object may enter accidentally, creating a
very dangerous situation.
With the cleanroom specification, leaving this hole open may cause dust and other
particles inside the actuator to escape through the hole and affect the cleanliness of
the operating room.
Cross-recessed countersunk
head screw M3x5
End face cover
� 8 slot for automatic
adjustment
Front bracket
