Run Batch Tab
The Run Batch tab contains an information area for batch statistics, a
microtiter plate image, plate command buttons, and XYP command
buttons and settings.

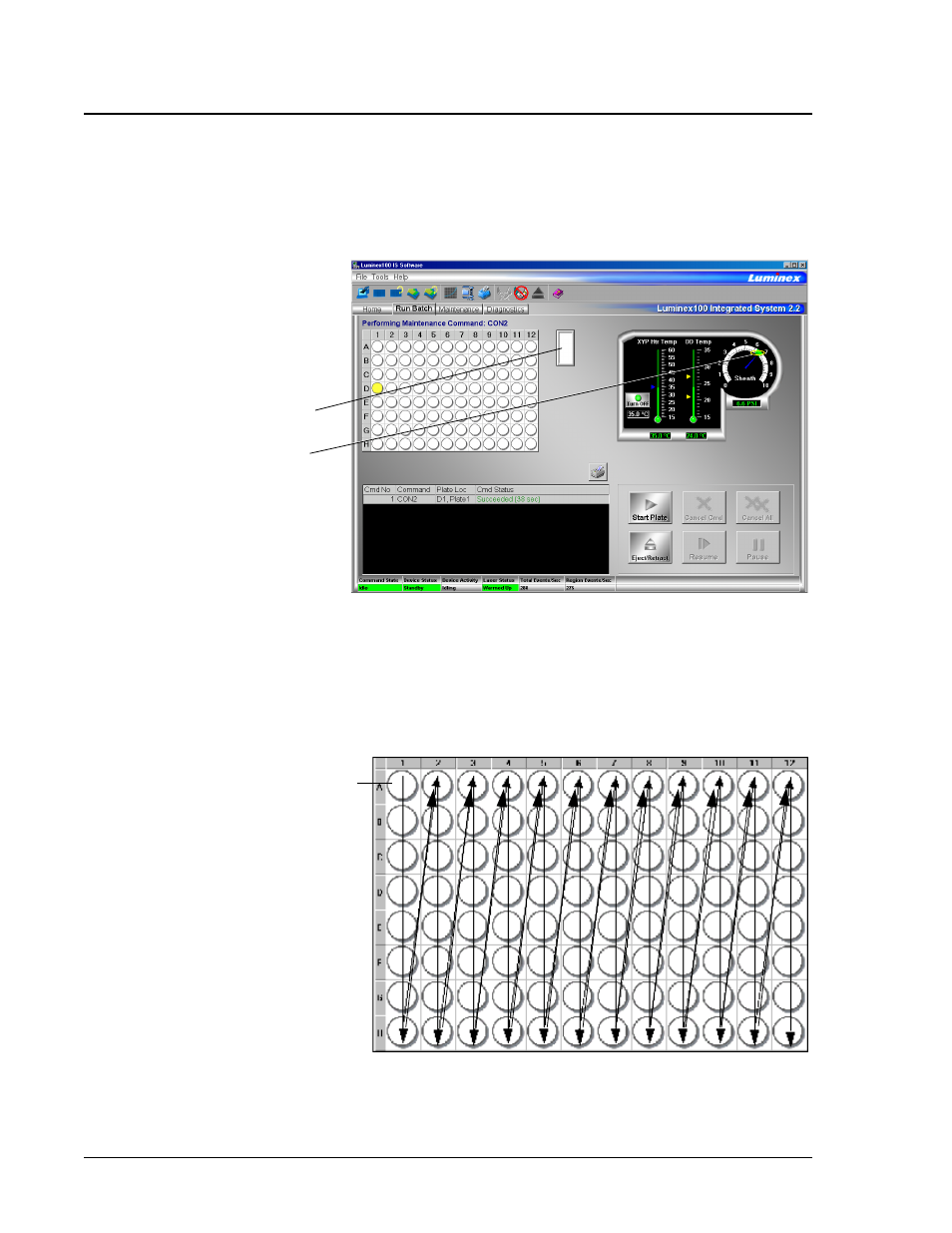

Figure 39. Run Batch Tab
Microtiter Plate
The Run Batch tab has an image representing the microtiter plate
where you place the samples. The system analyzes sample from
wells on the microtiter plate vertically, from top-to-bottom within the
column and left-to-right after each column, as shown below.
Figure 40. Microtiter Plate Image
Reservoir
Pressure
Range
Start
