Luminex 100 IS User Manual Version 2.1 x MAP Technology
5 - 12 PN 89-00002-00-061 Rev. A
Sheath Filter Behind the left door, the service panel houses a sheath filter. This
filter removes particles greater than 10 microns in diameter from the
sheath fluid.

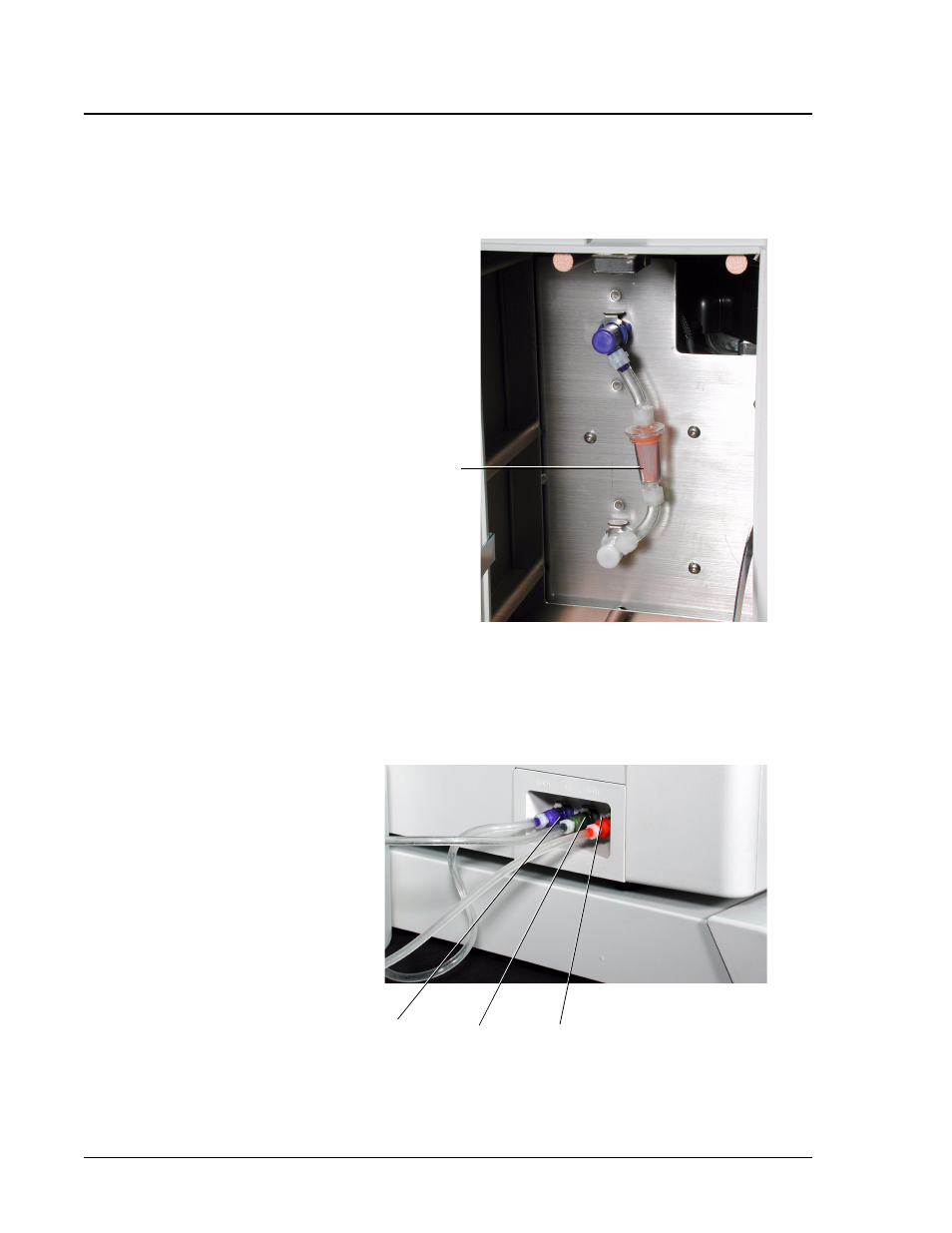

Figure 19. Sheath Filter
Air, Waste, and
Sheath Fluid
Connectors
Located on the side of the instrument, these connectors couple
directly to the sheath and waste fluid containers. The air connector is
green, the sheath fluid connector is blue, and the waste fluid
connector is orange.
Figure 20. Air, Waste, and Sheath Fluid Connectors
Sheath filter
Sheath fluid
connector
(blue) Waste
connector
(orange) Air connector
(green)
