8. Plug in the XYP instrument and the Luminex 100 analyzer.
Install the XYP
Instrument
Reservoir
The XYP instrument reservoir is used for maintenance functions in
the Luminex 100 analyzer.
‹ To install the XYP instrument reservoir:
1. Turn on the XYP instrument, the Luminex 100 analyzer, and the
PC. Wait for the Luminex 100 IS software to start.
2. Enter the lot numbers and target information (found in
Certificate of Quality) for the calibrators and system controls, if
necessary. Click the Apply and Save button. If there is
information in the database, the system does not require you to
enter the information. Click Done.
3. Click the Eject/Retract button to eject the plate holder.
4. Insert the reservoir in the upper right corner of the plate holder.

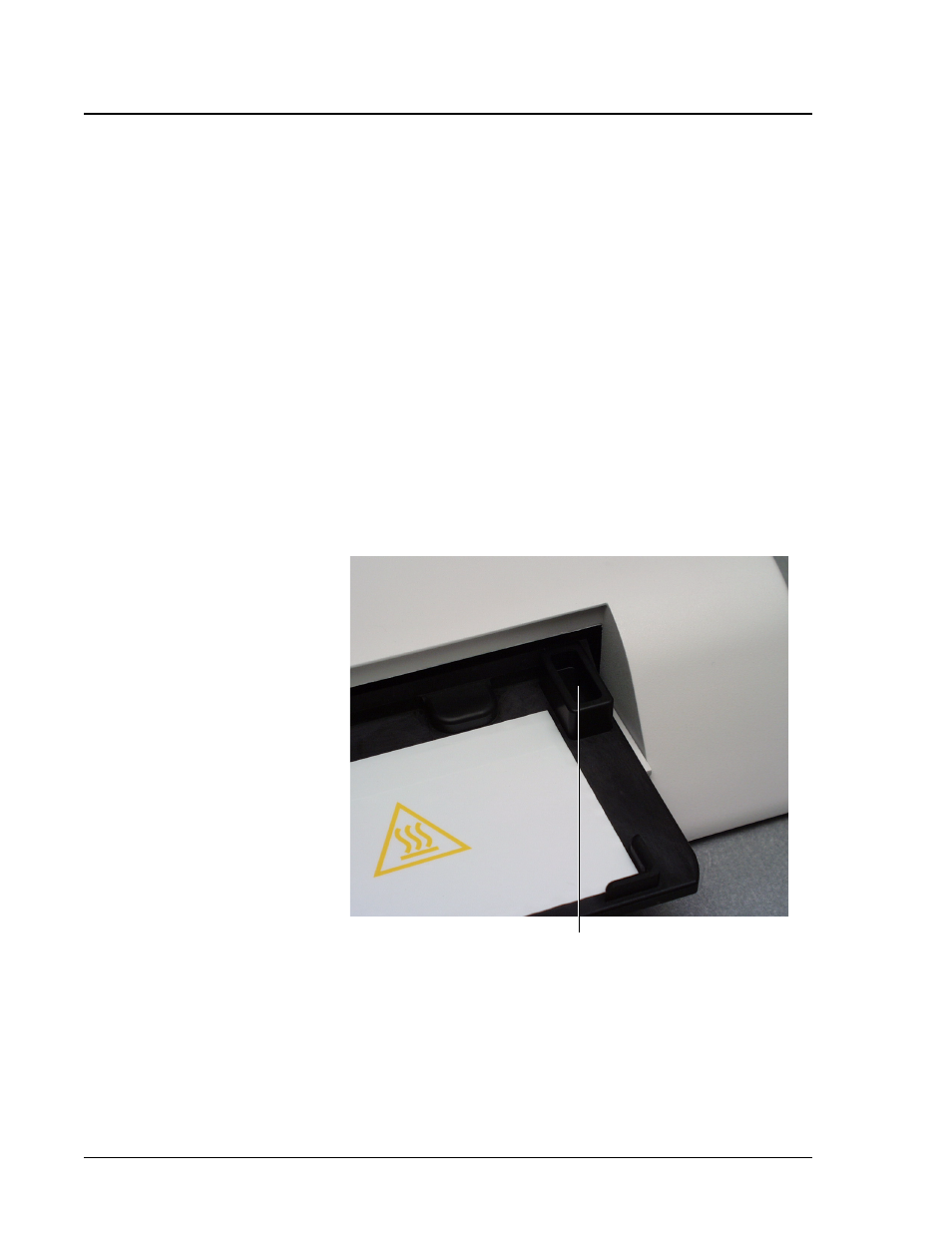

Figure 10. The XYP Instrument Reservoir
5. Click the Eject/Retract button to retract the plate holder.
Install the XYP
Instrument Heater
Block (Optional)
Use the XYP instrument heater block as required by your assay kit
instructions. When not in use, you can store the XYP instrument
The XYP instrument reservoir
