Installation – Luminex 100 IS User Manual, Version 2.1 User Manual
Page 168
Luminex 100 IS User Manual Version 2.1
x
MAP Technology
A - 2
PN 89-00002-00-061 Rev. A
•
Waste line tubing (orange fitting)
•
Sheath fluid line (blue fitting)
•
Air line (green fitting)
•
Sheath fluid intake line (white fitting)
•
Power cord
•
Screwdriver

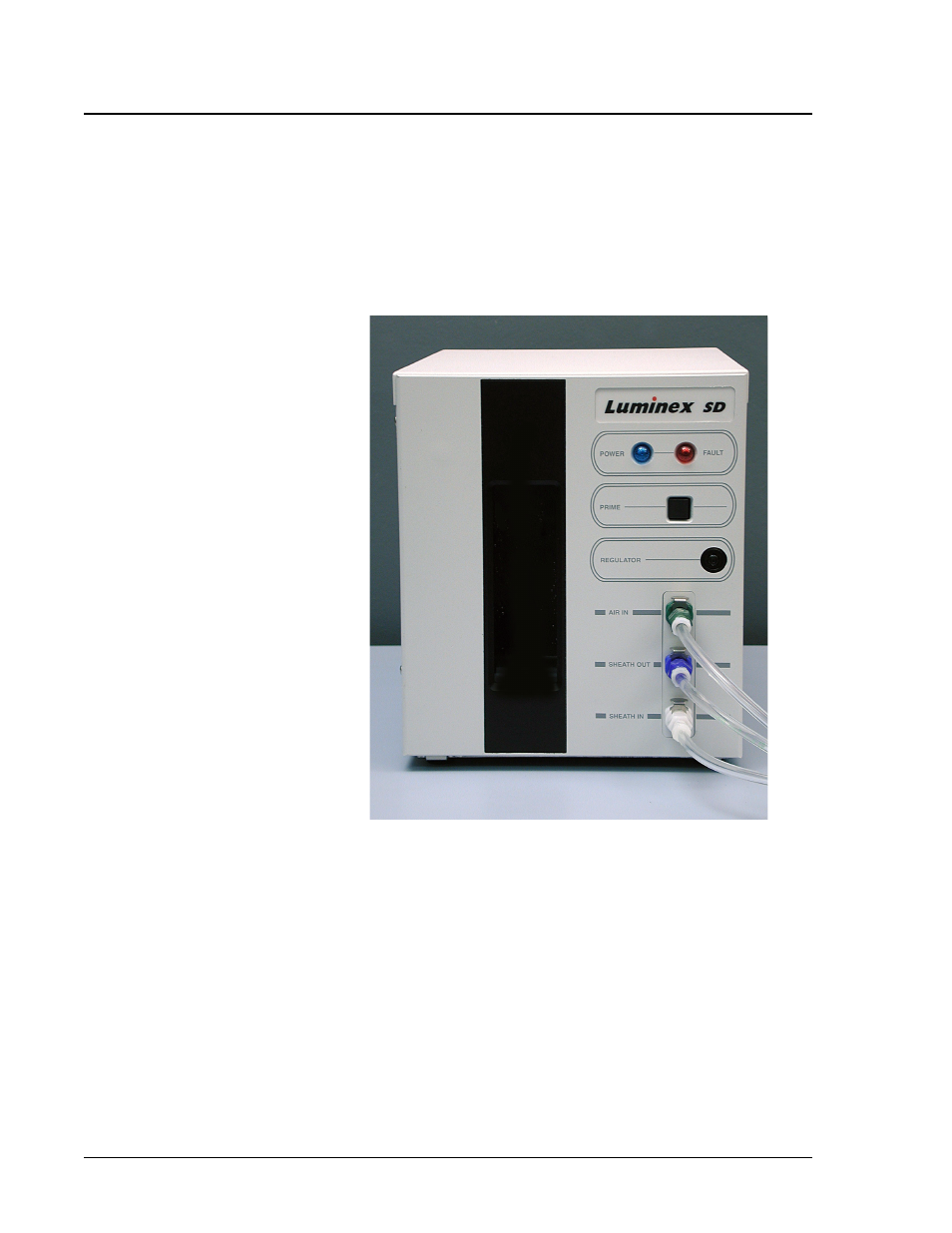

Figure 96. Sheath Delivery System Device
Installation
To install the SD system:
1. Start with the original Luminex sheath fluid and waste containers
connected to the Luminex 100 analyzer. Check that the sheath
fluid container is filled to just below the air intake valve.
2. Make sure the Luminex 100 analyzer and the IS 2.1 software are
running.
