x MAP Technology The System
PN 89-00002-00-061 Rev. A 5 - 9

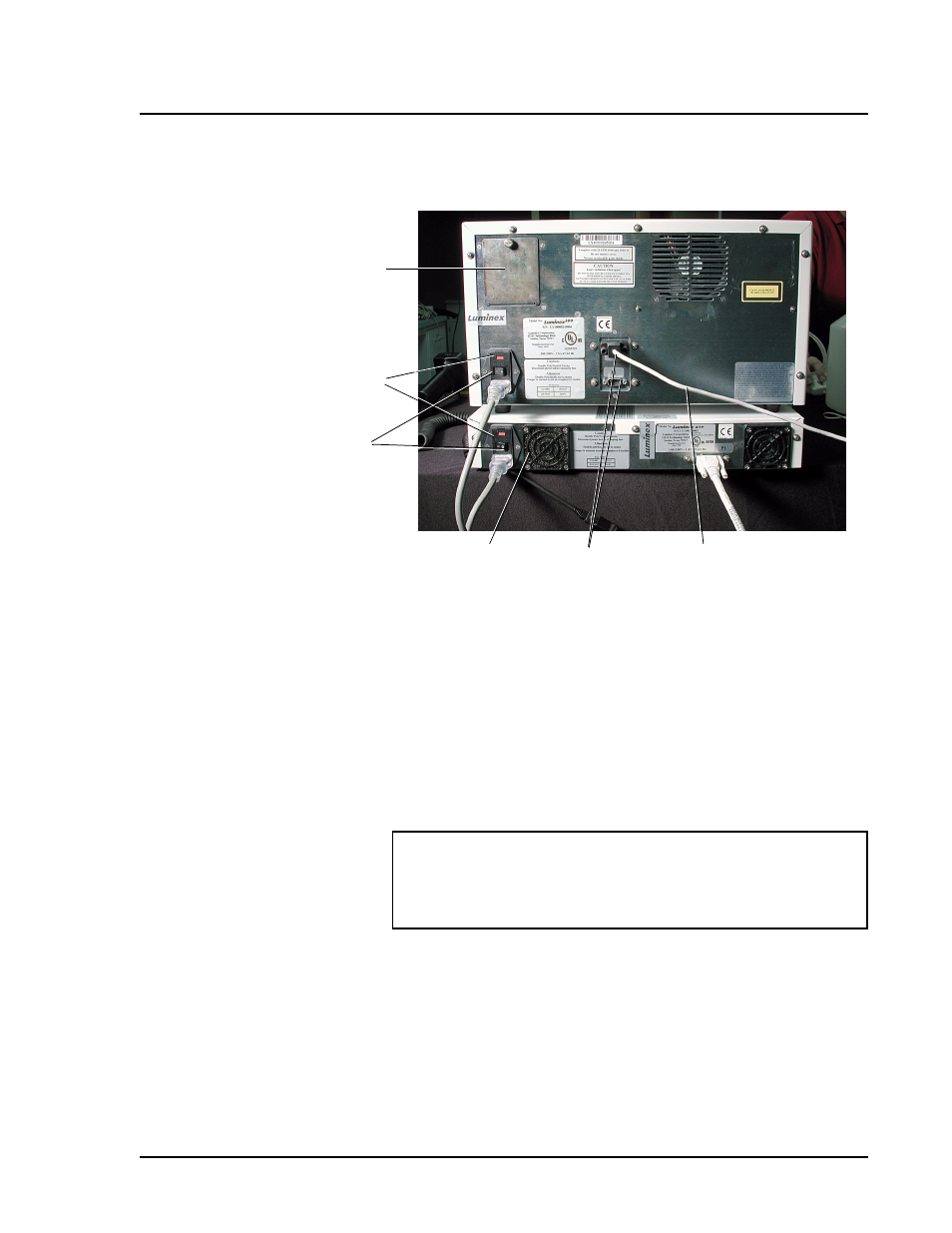

Figure 14. Back of the Luminex 100 Analyzer and XYP Instrument
Fluidics
Sample Arm The Sample Arm transports the sample from the sample tube to the
cuvette. Upon operation, the carriage drops automatically to the
microtiter well for sample retrieval.
XYP Instrument
Sample Probe
A stainless steel Sample Probe acquires a sample. A shorter probe is
provided for shipping and troubleshooting.
Cheminert ® Fitting This fitting may be disconnected to allow replacement of the Sample
Probe as necessary.
This guides the Sample Probe into the XYP instrument.
Communications
ports (DB9) Luminex 100 analyzer
ventilation filter (on bottom) XYP instrument
ventilation filter
Power input
module
Power switch
Air intake filter
access door
Warning: During operation, this system contains exposed moving
parts that result in puncture hazard. Risk of personal injury is
present. Keep hands and fingers away from the Sample Probe.
The shield should be in place.
