x MAP Technology Installation
PN 89-00002-00-061 Rev. A 4 - 3
Refer to the documentation that came with your PC to determine
if changing the voltage selection switch is required, and for
instructions on changing the switch setting.
9. Place the PC to the right of the Luminex 100 and XYP
instruments.
10. Place the monitor on top of the PC and connect the monitor cable
to the PC.

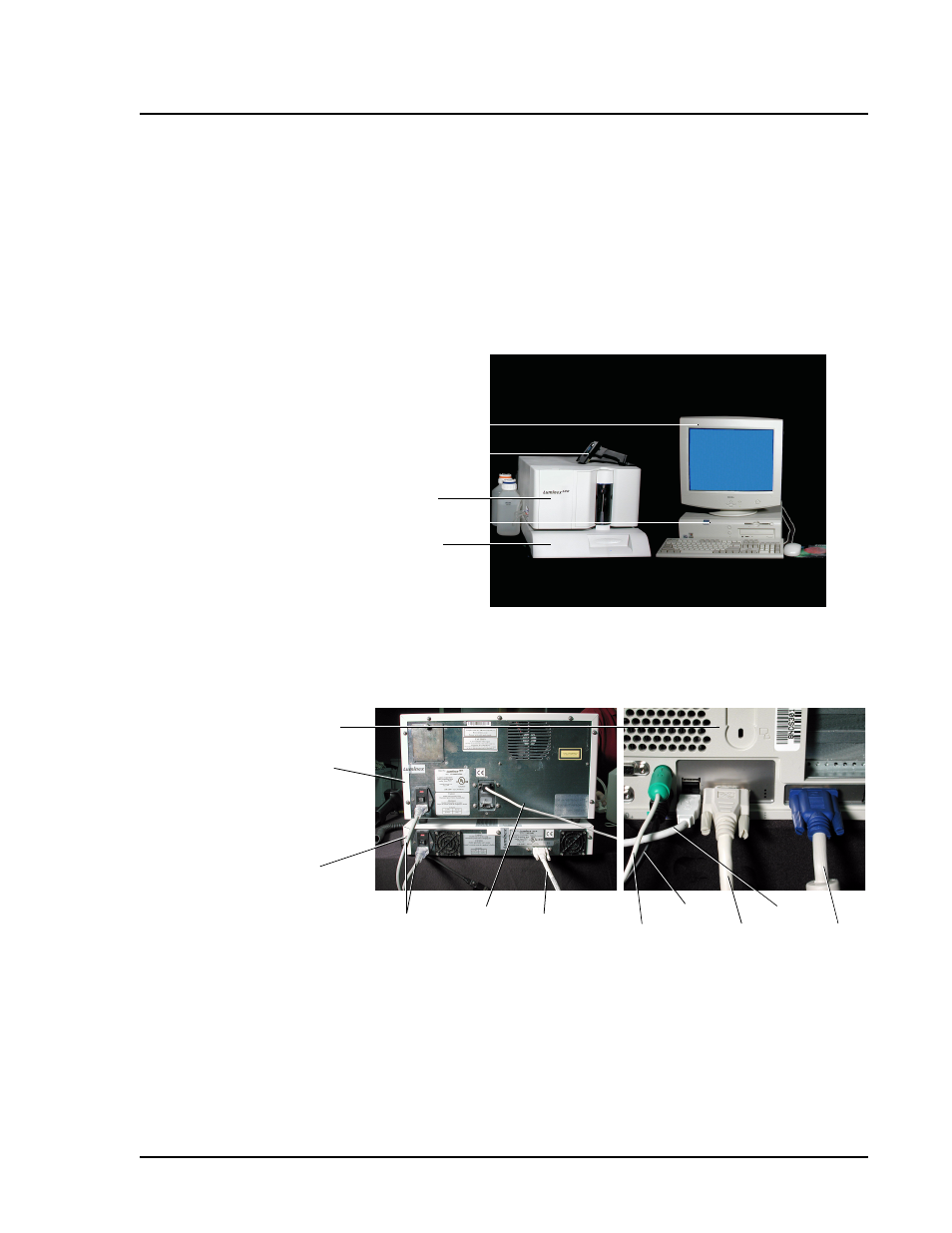

Figure 3. Luminex 100 IS Setup
11. Connect the Luminex 100 analyzer and the XYP instrument
communications cables to the PC. See the illustration below.
Figure 4. Luminex 100 IS Connections
Note: Do not place the PC or
monitor on top of the Luminex
100 analyzer.
Monitor
Barcode
Reader
100 analyzer
Computer
XYP instrument
Mouse
cable Serial
cable
Y-cable USB cable
Monitor
cable
USB
cable
to PC
Power cords Serial cable
to PC
100 analyzert
XYP instrument
PC
