12. Select the XCF16P device in the chain, then right click in the main window and

select Program. In the Programming Properties pop-up window only the ‘Erase
Before Programming’ and the ‘Verify’ options should be selected.

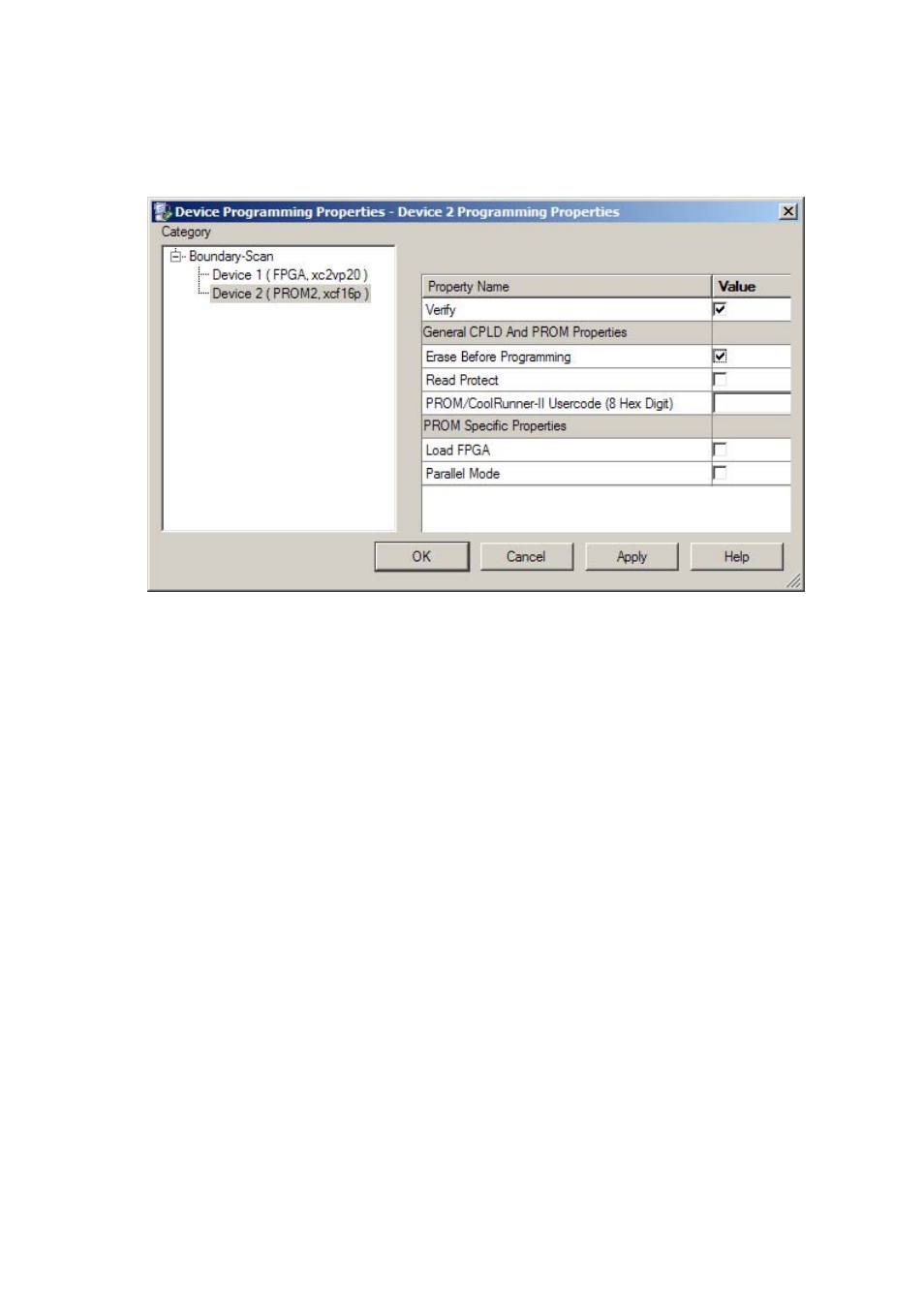

Figure 79 - Device Programming Properties

13. You'll now be back at the boundary scan diagram.
14. Select the XCF16P device and right click and select "Program" from the pop-

up menu.

15. Click ‘OK’ to begin programming which should take approximately 2 minutes to

complete.

16. The banner “Program Succeeded” should appear in the main window.
