Eclipse Upgrade Reference Manual
Clear-Com Communication Systems
Page 69 of 155
Part Number: 810377Z Rev 6

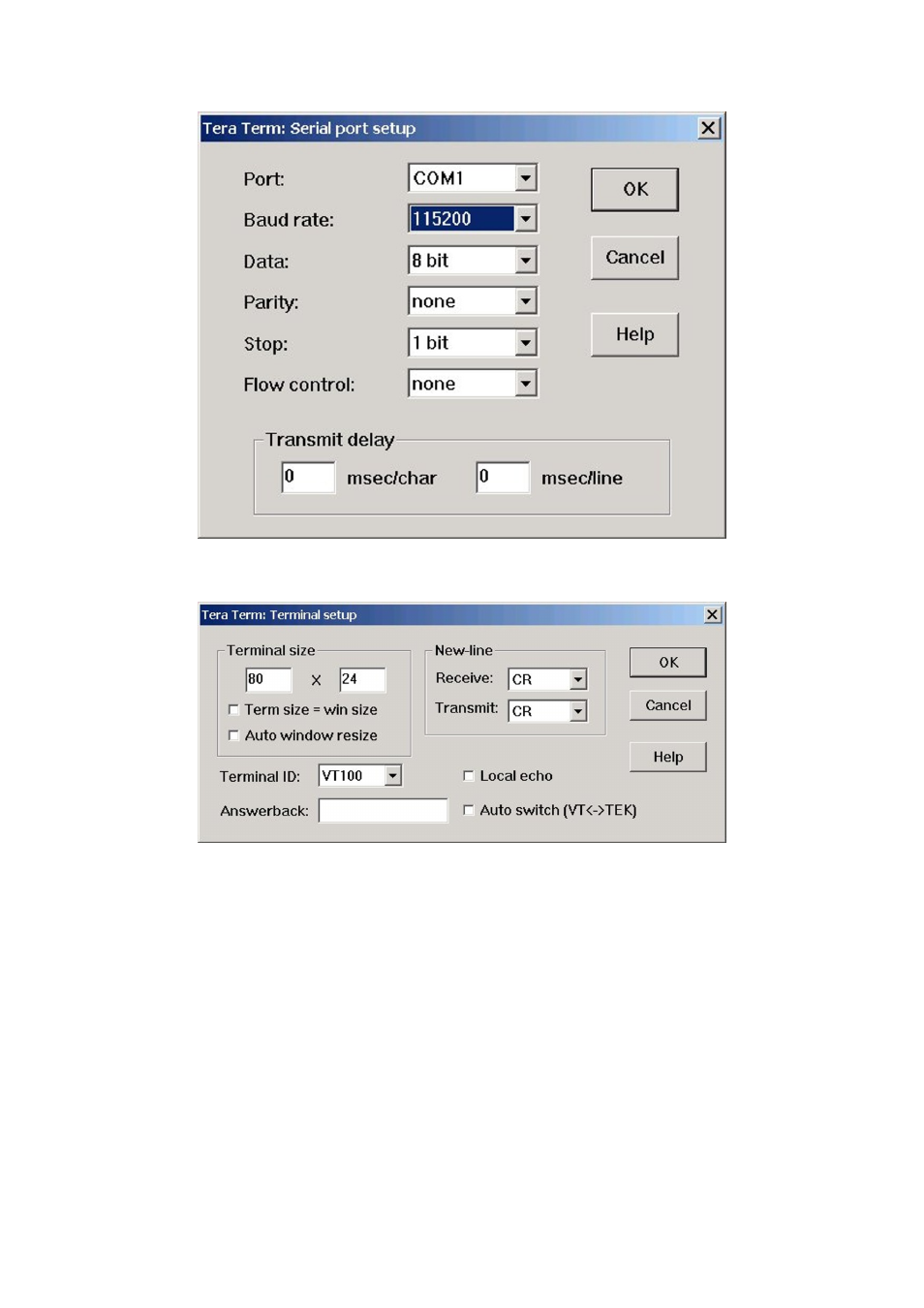

Figure 64 - TeraTerm Serial Port Setup
Figure 65 - TeraTerm Terminal Emulation
3. Open the E-32/E-Pico case.
4. There are two MVX cards built into the motherboard. As such, there are two
three-pin connectors, one for each MVX card. They are labelled H8FP1 and
H8FP2. Don't confuse these two three-pin connectors with the identical (but
differently labelled) three-pin connectors which are used to upload new
application code.
5. Connect the MVX-A16 lead to one of the H8FP connectors.
6. Run TeraTerm and if necessary hit return a few times.
7. You should now read the version information in the TeraTerm window.
8. Repeat with the second MVX card, to get its version information.
