InstallCD\3rd_Party_Software\FlashMagicFlashMagic.exe
3. Latest hex file to load - Found on the Eclipse Installation CD-ROM:
InstallCD\Omega-Median\710756Z - Tel-14 Application\710756Z.hex
12.3.2 Procedure
1. Install FlashMagic
2. Connect the PC to the Serial Programming port of the Tel14 processor card.
(Figure 21)

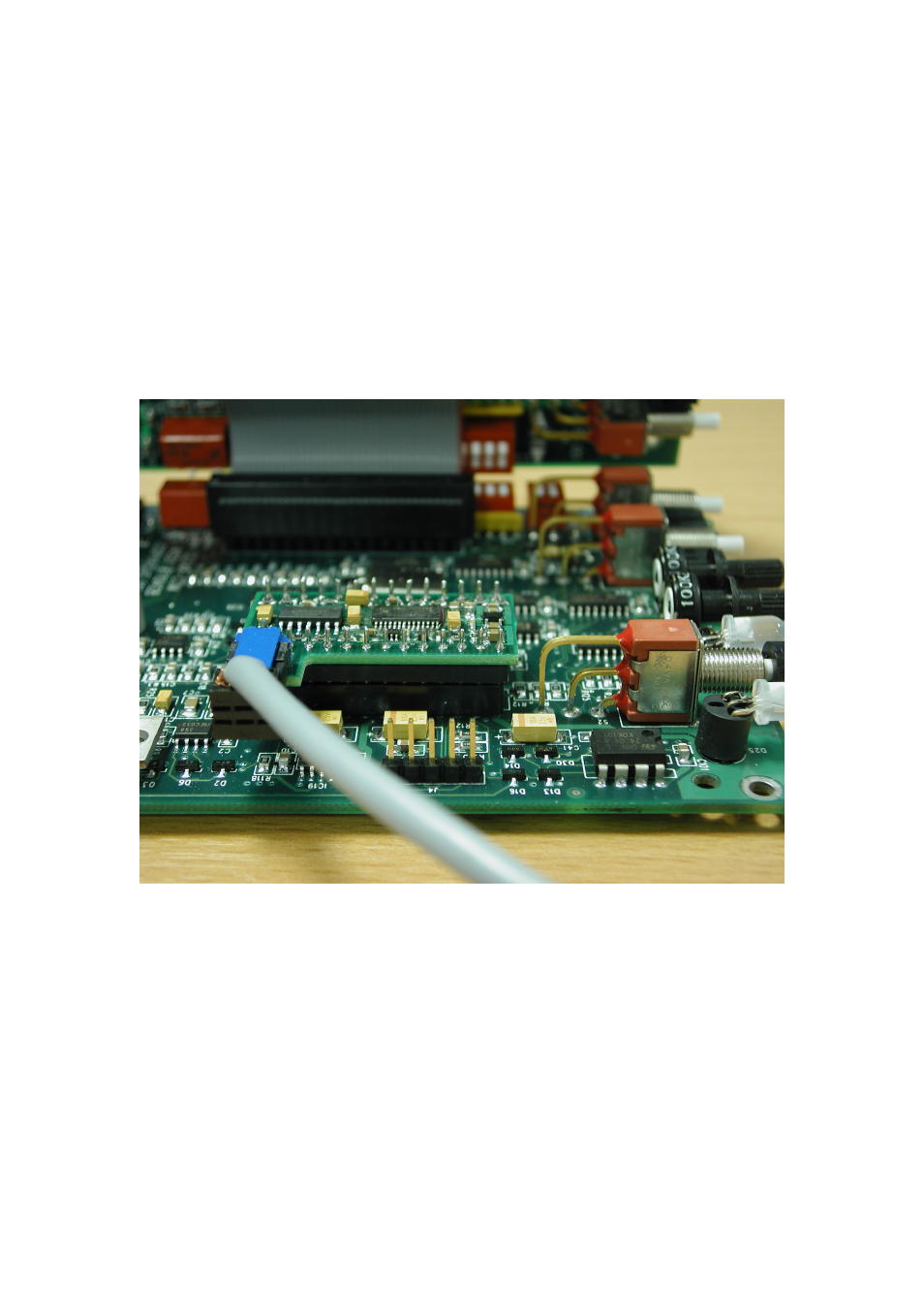

Figure 102 - Processor module with serial cable attached
NOTE: For correct connector orientation the wires must exit the plug on the top side
as shown.
3. Power up the Tel-14
4. Start FlashMagic
5. Configure FlashMagic; the screenshot has a number of "boxes" which are
numbered (purple numbers) from 1 to 5
