Eclipse Upgrade Reference Manual
Clear-Com Communication Systems
Page 131 of 155
Part Number: 810377Z Rev 6
14.4 Appendix D – Eclipse-Pico/E-32 Configuration Card DIP Switch Settings
See 1.1 – figures 6 & 7 above for switch locations.

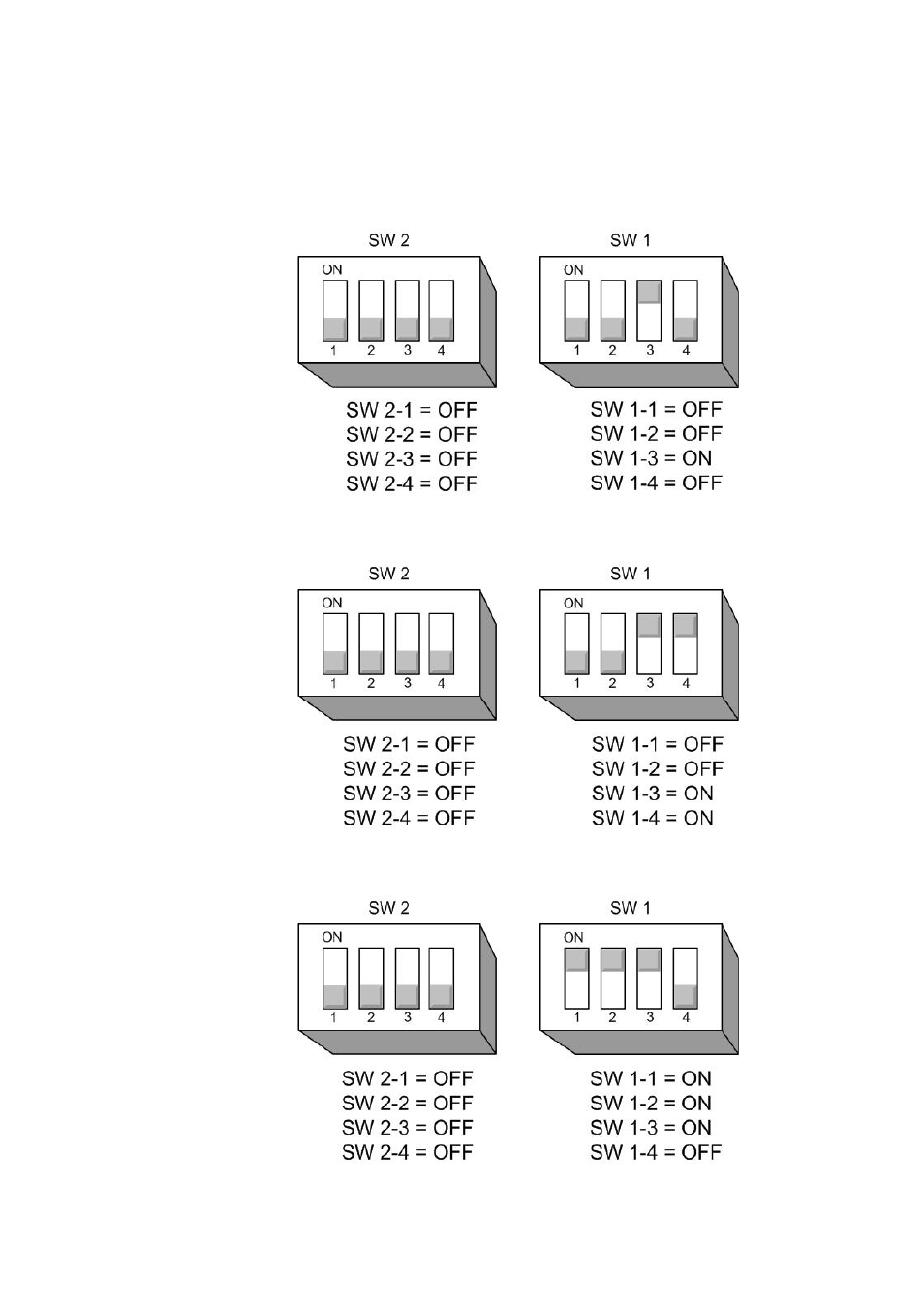

Figure 117 - DIP Switches on Configuration Card – Default Settings
Figure 118 - DIP Switches on Configuration Card – Test Mode
Figure 119 - DIP Switches on Configuration Card – Watchdog Enable
