4.2 Eclipse-PiCo / E32 Boot ROM
4.2.1 Required Equipment
1. 2 MBit PROM device – ST M27W201 or equivalent.
2. PROM Programming unit.
3. PROM programming software appropriate for the unit.
4. Appropriate ‘S’ record file for Eclipse-PiCo / E32 Configuration Card boot.
InstallCD\ E-Pico E-32\ 710633Z – Boot PROM\710633Z.s
4.2.2 Upgrade Steps
1. Ensure that the PROM device to be programmed is empty.
2. Program the PROM device with the appropriate file according to the
instructions for the PROM programmer being used.
3. Confirm that the checksum of the programmed device matches that detailed in
the Eclipse release notes.
4. Remove the existing PROM device from the configuration card.
5. Insert the newly programmed PROM device taking care to ensure the correct
polarity of the device.
6. Observe static procedures.

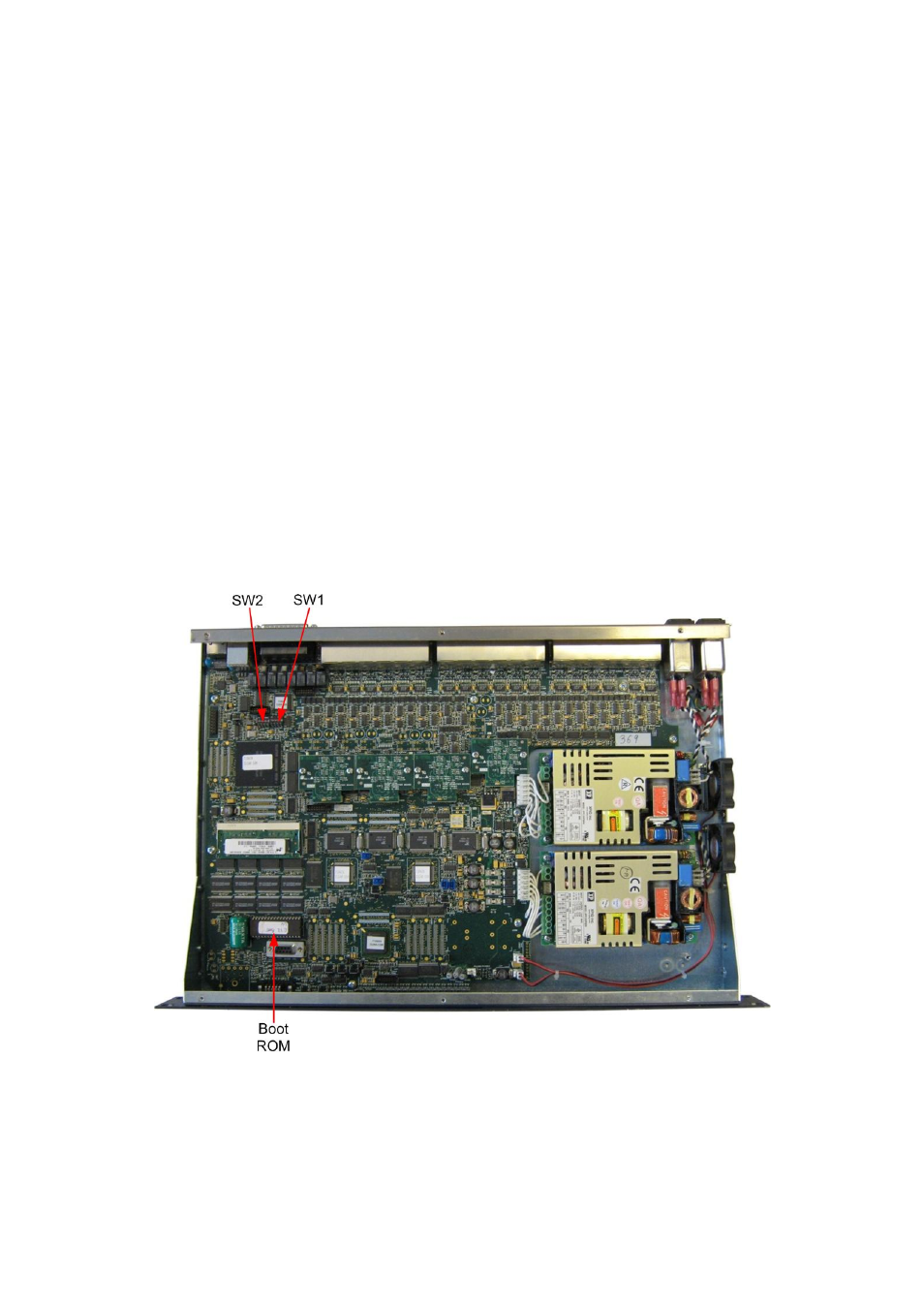

Figure 21 - E-32 Main Board
