Page 81
Eclipse Upgrade Reference Manual
Clear-Com Communication Systems
Page 81 of 155
Part Number: 810377Z Rev 6

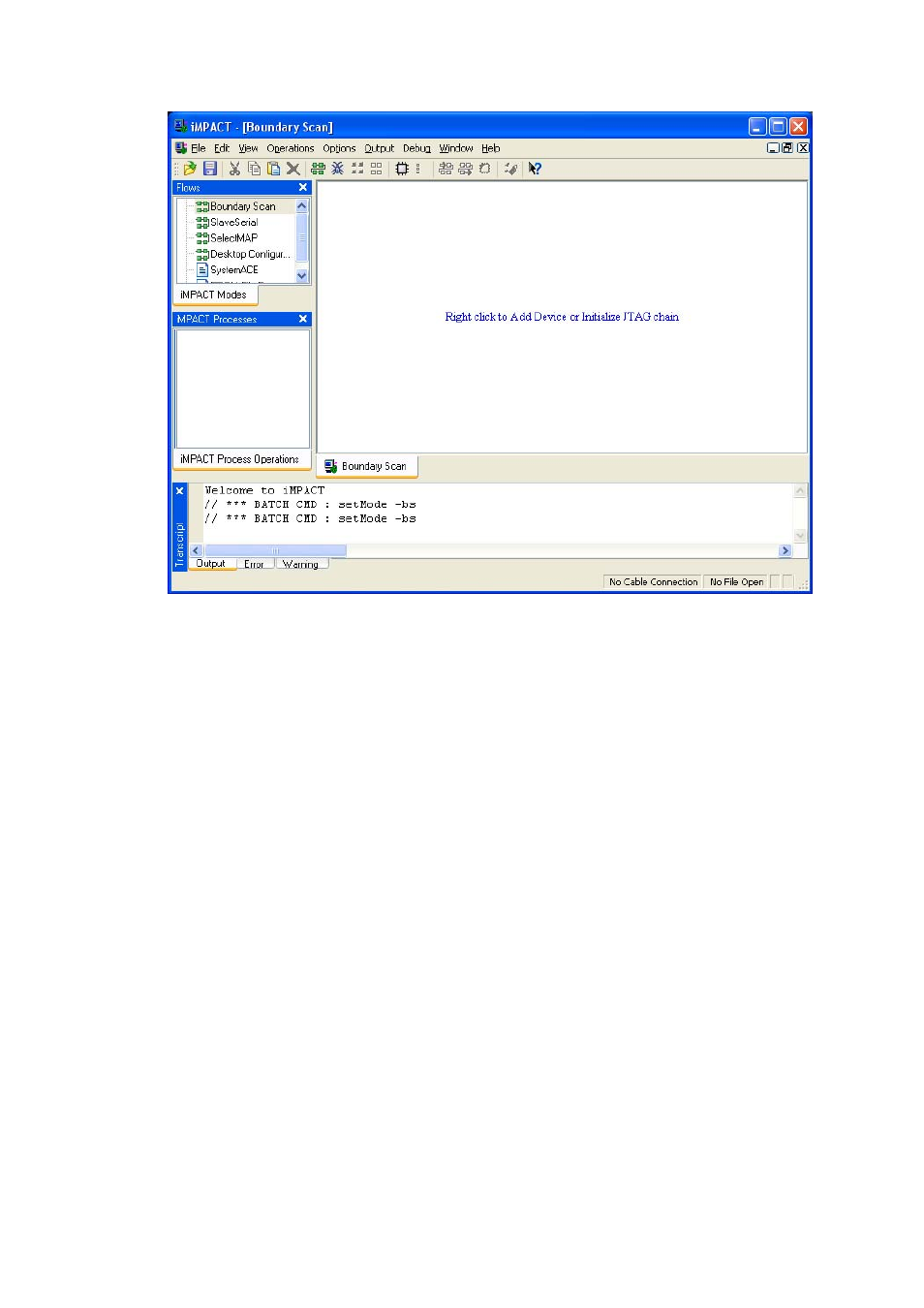

Figure 77 - IMPACT Boundary Scan Start Screen
6. Right click in the main window and select ‘Initialise Chain’ / Ctrl+ I.
7. If the cable is connected correctly the application will connect and a Xilink chip
chain will be shown (note: picture below does not show the correct device
chain) – else a cable connection warning will be given.
