4. Configure the FDT as follows:
Select Device
: H8S/2318F
Select Port
: COM1 (change to match a COM
port present on the PC)
CPU Frequency
: 20.00000 Mhz
Connection
:
Boot
mode
Recommended Speed
: 38400
Protection
:
Automatic
Messaging
:
Advanced

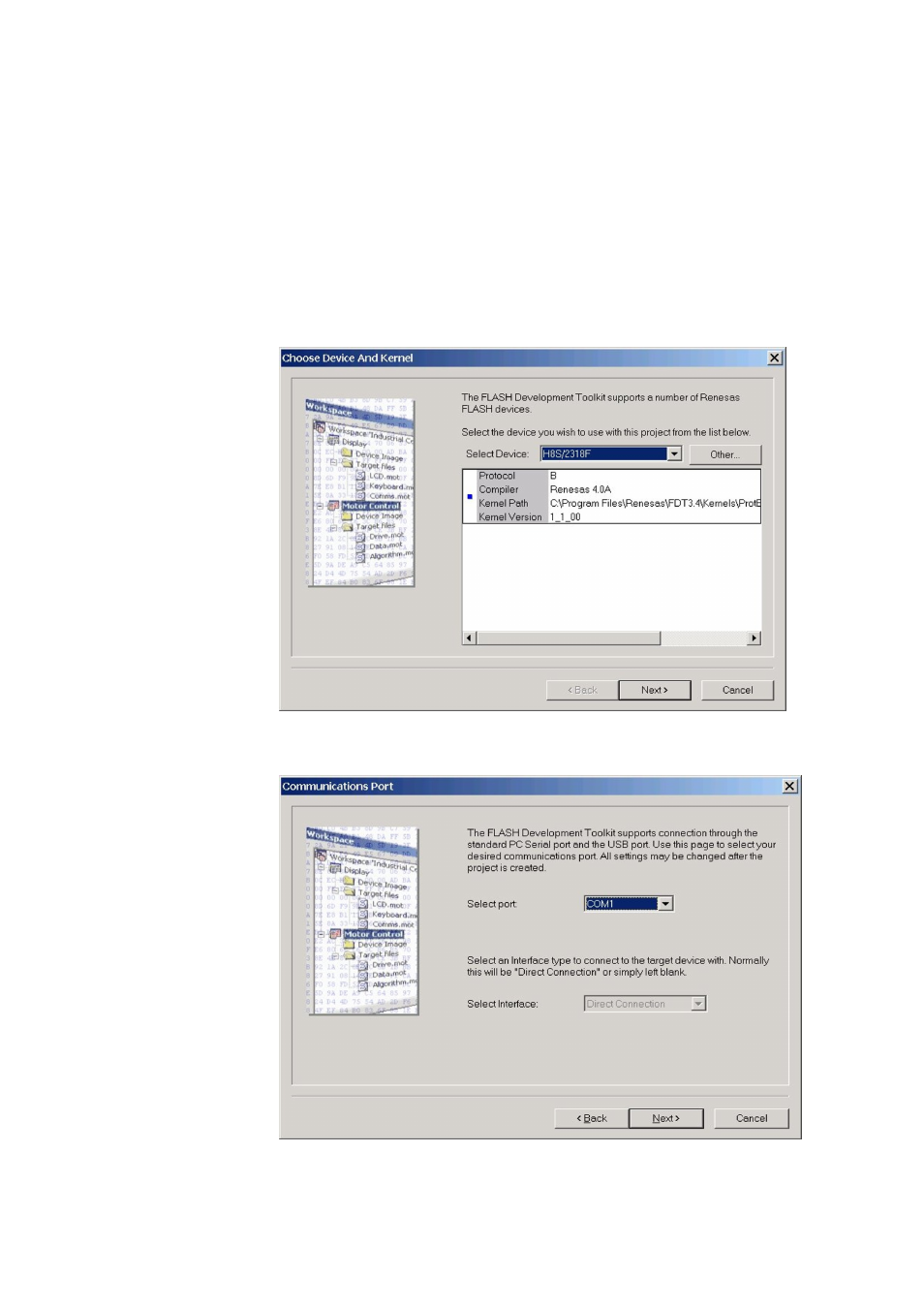

Figure 44 - Select Device Type
Figure 45 - Select Port
