E DITING M ULTI T AGS V LINX F IELDBUS G ATEWAY M ANAGER U SER M ANUAL
P AGE 72
T
HE
C
OLORS
T
AB

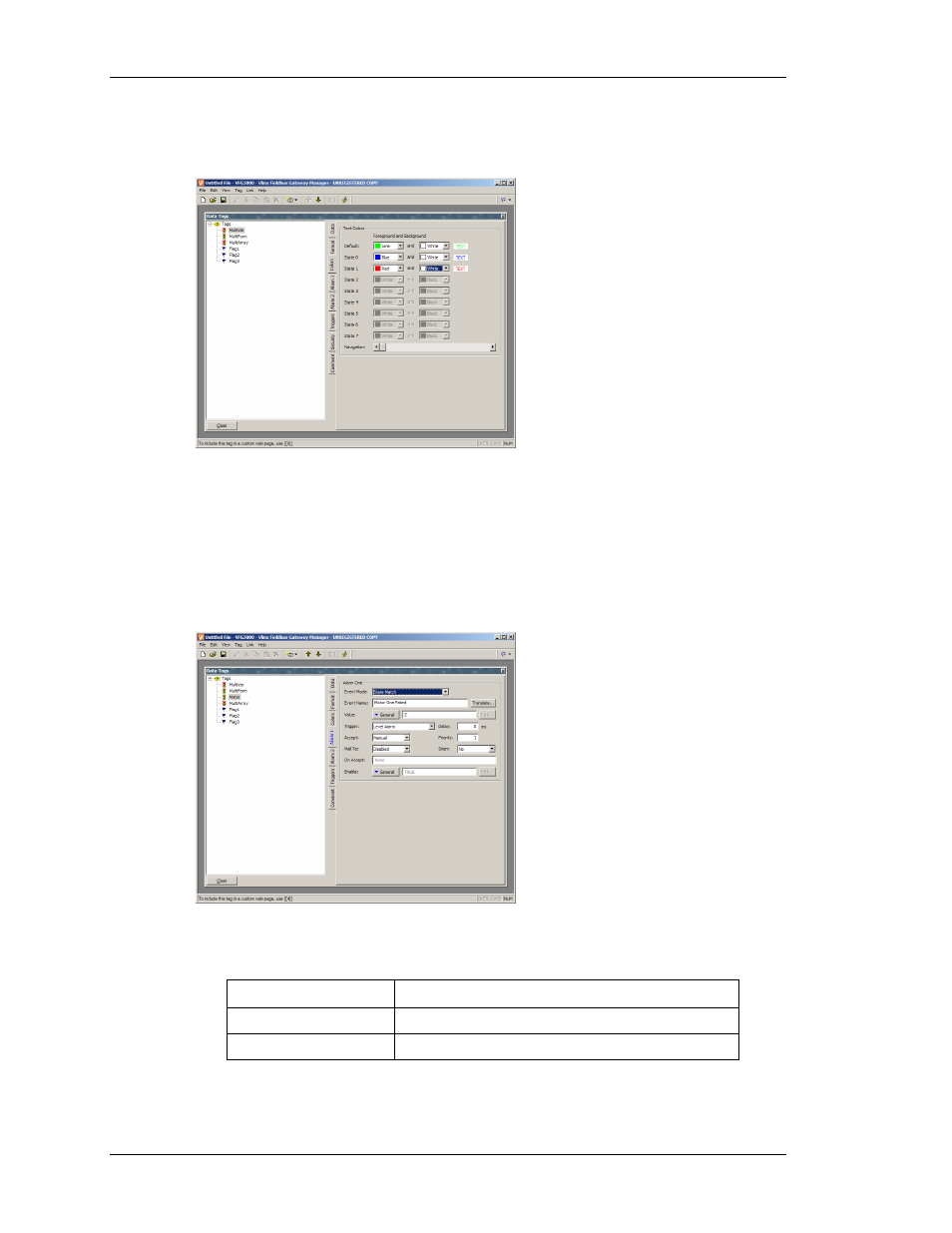

The Colors tab of a multi tag contains the following properties…
• The various color pairs are used to specify how the tag should be displayed when
it is each of the states specified on the Format tab. As with the Format tab, the
Navigation slider can be used to up and down the list of color pairs when more
than eight states have been defined.
T HE A LARM T ABS
Each Alarm tab of a multi variable or formula contains the following properties...
• The Event Mode property is used to indicate the logic that will be used to decide
whether the alarm should activate. The table below lists the available modes.
M ODE A LARM WILL ACTIVATE WHEN …
State Match The value of the tag is equal to the alarm’s Value.
State Mismatch The value of tag is not equal to the alarm’s Value.
• The Value property is used to define the comparison data for the alarm.
