C ONFIGURING A V IRTUAL HMI P RIMITIVE D ESCRIPTIONS
R EVISION 1 P AGE 121

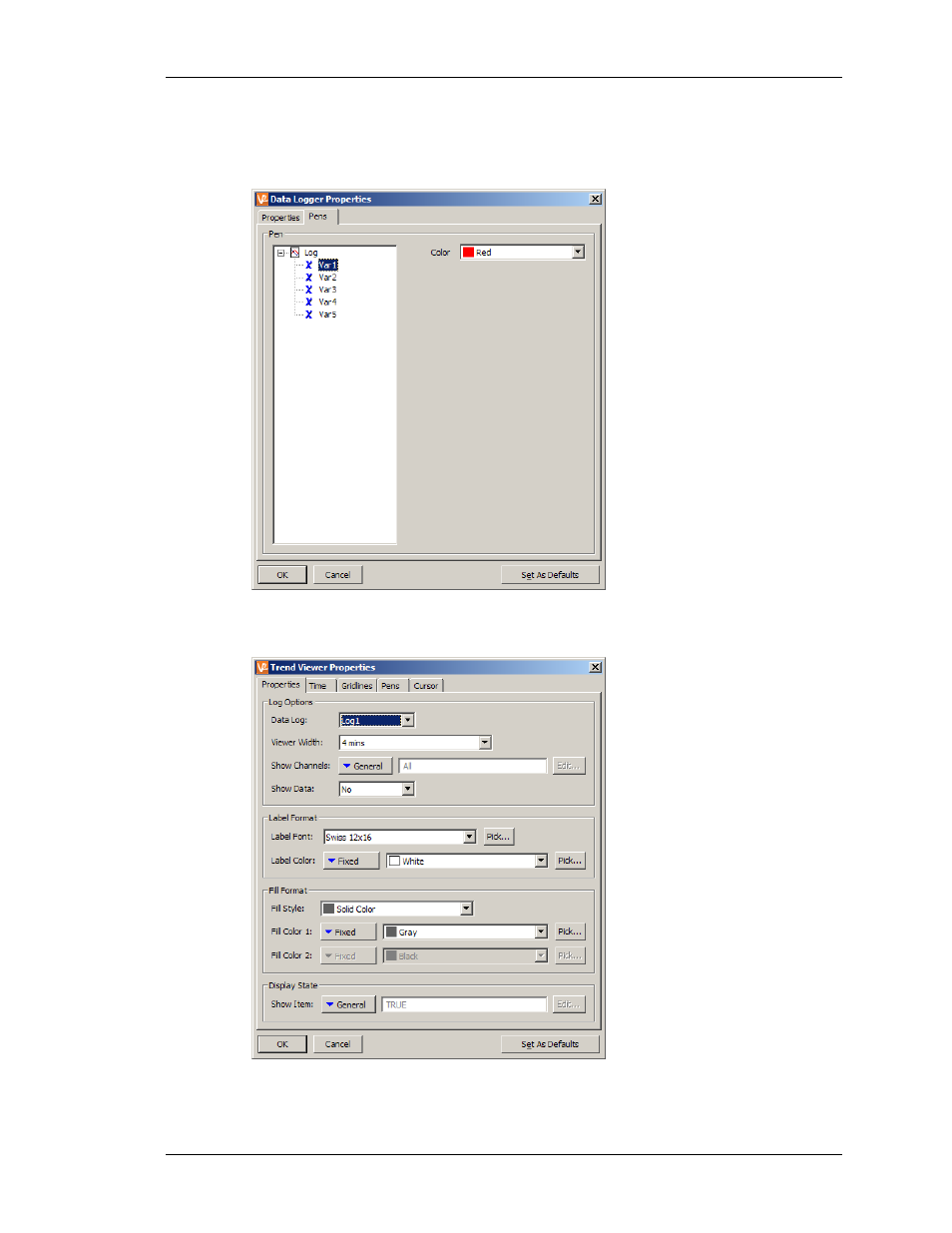

The Pens page provides a way to change the color of the trace for each tag present in the data
log. Select the tag to get the corresponding color. The color is changed via the drop down
window. More colors are available at the end of the list.
The trend viewer primitive is similar, but includes more pages. The first page of the
properties is shown below…
