lowest number of major divisions is one, in which case large tick-mark will be
drawn at the ends of the scale, but not along its length. This property is only
available when the scale is fixed.
• The Minor Divisions property is used to indicate into how many minor divisions
each major division should be divided. Smaller tick-marks are drawn at each
division. Selecting a value of one for this property will disable minor divisions.
• The minimum and maximum are tags or expressions the scale will follow to
define the number of major division required. The Counts per Major Division is
the number of unit between each major division. For example, if the counts is 10,
the maximum 100 and the minimum 20. The full scale is 80 (100-20), therefore
there will be 8 major divisions.
• The Show Item property defines if the primitive should be displayed or not
depending of the expression.
The Color page defines the fill pattern and line style of the scale.
T
HE
F
IXED
T
EXT
P
RIMITIVE
The Fixed Text primitive is used to add unchanging text to a page. The text is
displayed in a specified font and color, and with a specified justification. The text
can also be translated for international applications.

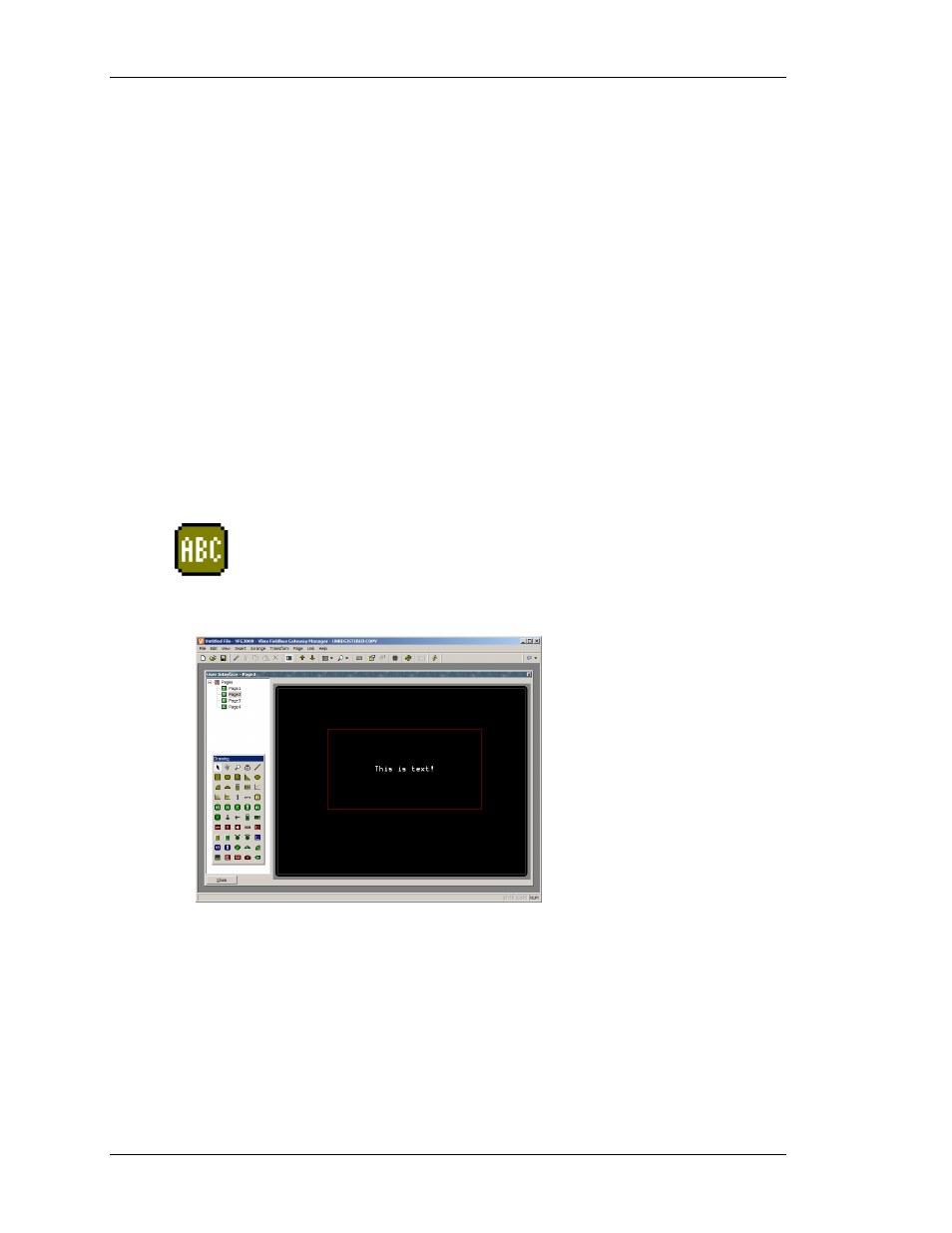

When the text is created, a cursor will appear, allowing the text to be entered…
The text editor supports cutting, pasting and all the other options normally found within a
Windows editor. The editor will also configure the keyboard to use the appropriate Input
Method Editor for the currently selected default language.
Note that only the default language text can be edited directly. Other versions of the text must
be edited via the properties dialog box, which is accessed by selecting the primitive and
pressing
Alt+Enter , or by selecting the Properties command from the Edit menu…
