P RIMITIVE D ESCRIPTIONS V LINX F IELDBUS G ATEWAY M ANAGER U SER M ANUAL
P AGE 128

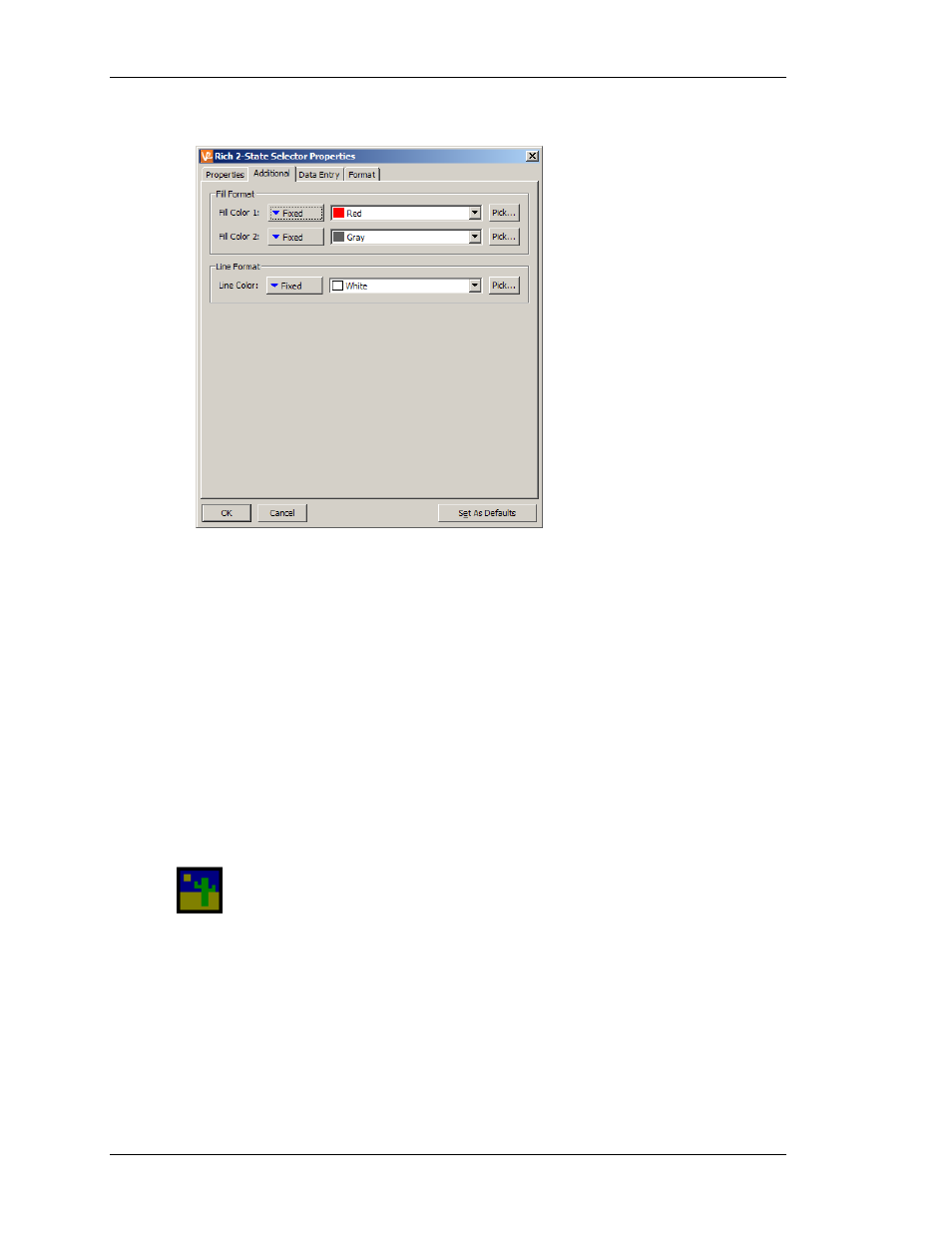

The second tab contains additional formatting information…
• The Fill Color 1 property is used to define the color of the rectangular portion of
the selector that moves in order to indicate the tag state. The Fill Color 2
property is used to define the color of the rest of the primitive.
• The Line Format property is used to define the color of the various lines that are
used to draw the primitive. These include the circle around the selector, and the
four lines that define the rectangle within the primitive.
The fourth page defines a number of properties specific to data entry. These are as defined for
the tag text primitives, and you should refer to that section for details. The fourth page defines
the label and format to be used for the primitive, and is as defined for flag tags or multi-state
tags, depending on which type of selector is being configured. You are once again referred to
the chapter of Tags for information on the various formatting options.
T HE P ICTURE P RIMITIVE
The Picture primitive is used to display one of a number of images, based upon
an optional data value. The images may be manipulated in various ways, and may
be moved within the primitive according to internal or external data values.
The primitive provides exhaustive facilities for displaying bitmaps, JPEG picture, or metafiles
images from Fieldbus Gateway Manager’s extensive image library or from third-party clipart
providers. Five separate tabbed pages control the various options.
