C ONFIGURING A V IRTUAL HMI P RIMITIVE D ESCRIPTIONS
R EVISION 1 P AGE 131

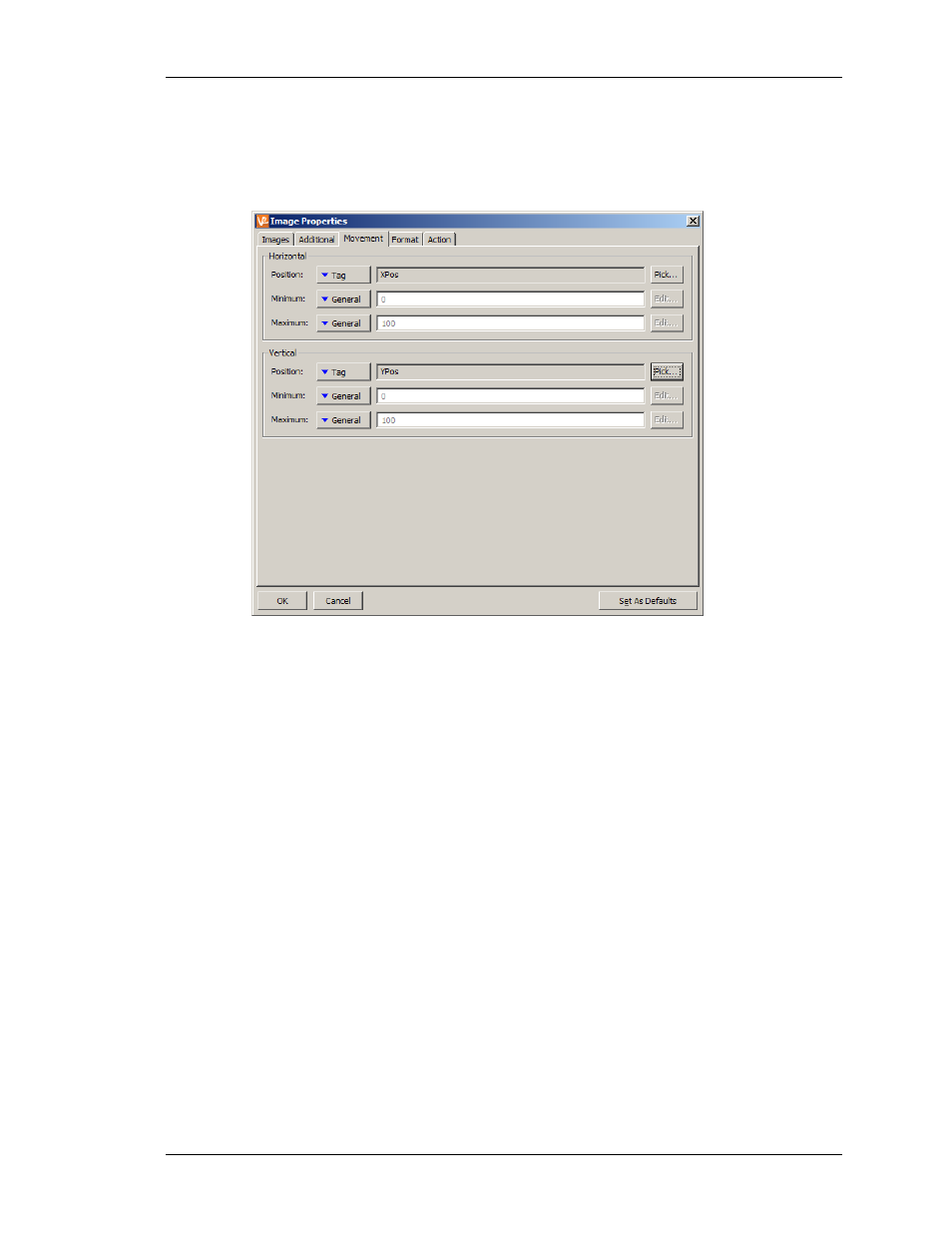

The now-reduced image can be moved within the whole primitive by defining values to
control its horizontal and vertical position. These values are defined together with minimum
and maximum limits that specify the values corresponding to the extremes of the image’s
movement within the primitive’s bounding rectangle…
In this example, setting XPos to 0 will place the image at the left of the primitive, while
setting it to 100 will place it at the far right. Similar behavior in respect of the up and down
limits of the primitive can be obtained via the value stored in
YPos .
