C ONFIGURING A V IRTUAL HMI U SING D EFAULT S ETTINGS
R EVISION 1 P AGE 91
In the example above, holding the primitive will raise MotorSpeed by 1 until it reaches 100.
T HE U SER D EFINED A CTION
This action is used to do anything else you desire! The options are shown below…
• The On Pressed property is used to define the action to be performed when the
primitive is pressed. This action may invoke any of the functions from the
Function Reference or the data modification operators described in the Writing
Actions section, or it may run a program.
• The On Auto-Repeat property is not currently supported.
• The On Released property is not currently supported.

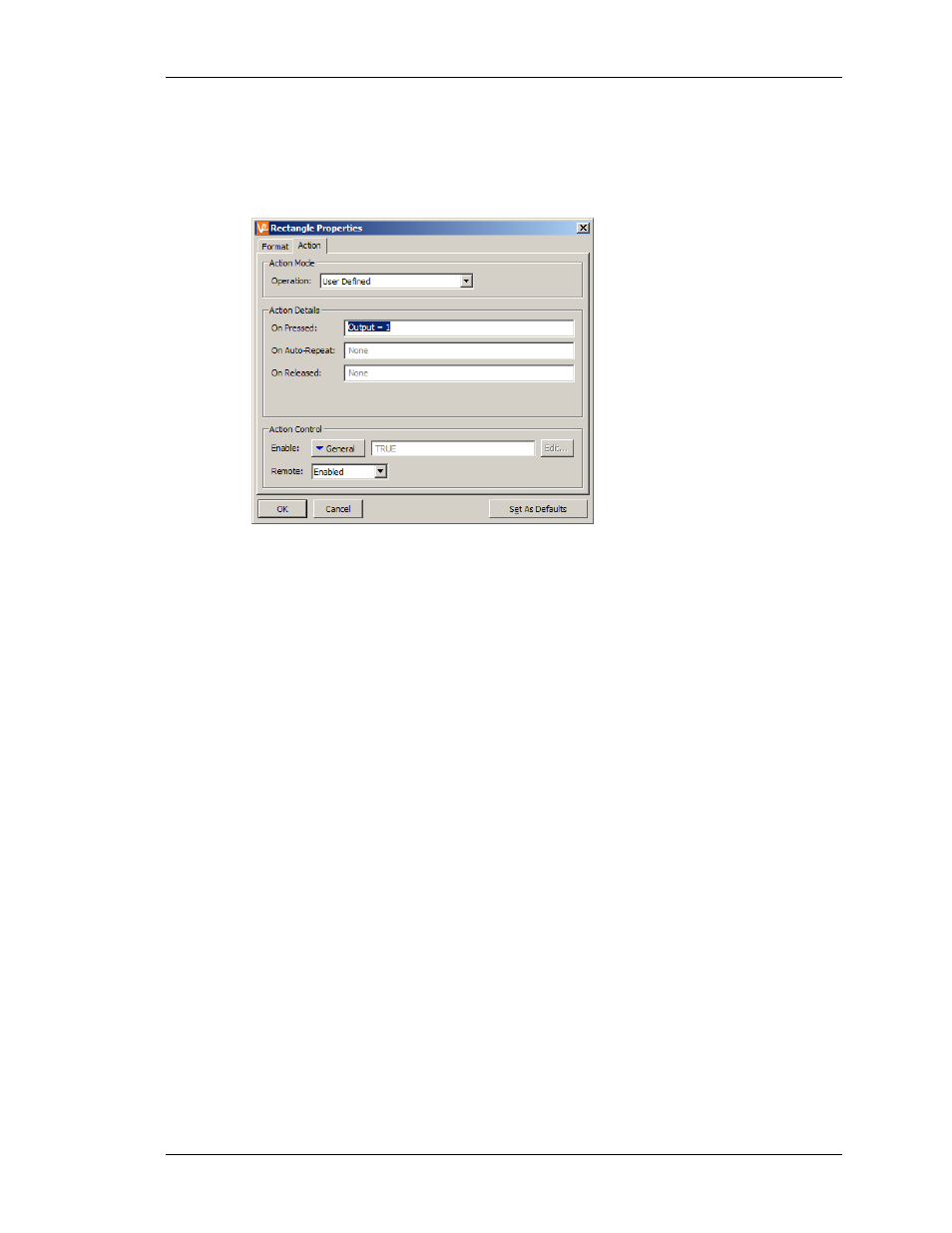

In the example above, a user-defined action is used to implement a momentary pushbutton.
U
SING
D
EFAULT
S
ETTINGS
The dialog box used to edit the properties of each type of primitive has a button in its bottom
right-hand corner labeled Set As Defaults. This button can be used to save the current settings
of certain properties of the primitive as the default settings to be used when creating a new
primitive. The same function can be performed by selecting the Save As Defaults command
from the Edit menu, or by pressing the
Ctrl+E key combination. Note that not all properties
are included in the default settings—only those that refer to formatting, as opposed to the
underlying data presented by the primitive, are saved. The default settings can be applied to
the currently selected primitive or primitives by using the Apply Defaults command from the
Edit menu, or by pressing the
Ctrl+L key combination.
P
RIMITIVE
D
ESCRIPTIONS
The sections below describe each primitive found in the drawing toolbox.
