C ONFIGURING A V IRTUAL HMI P RIMITIVE D ESCRIPTIONS
R EVISION 1 P AGE 95

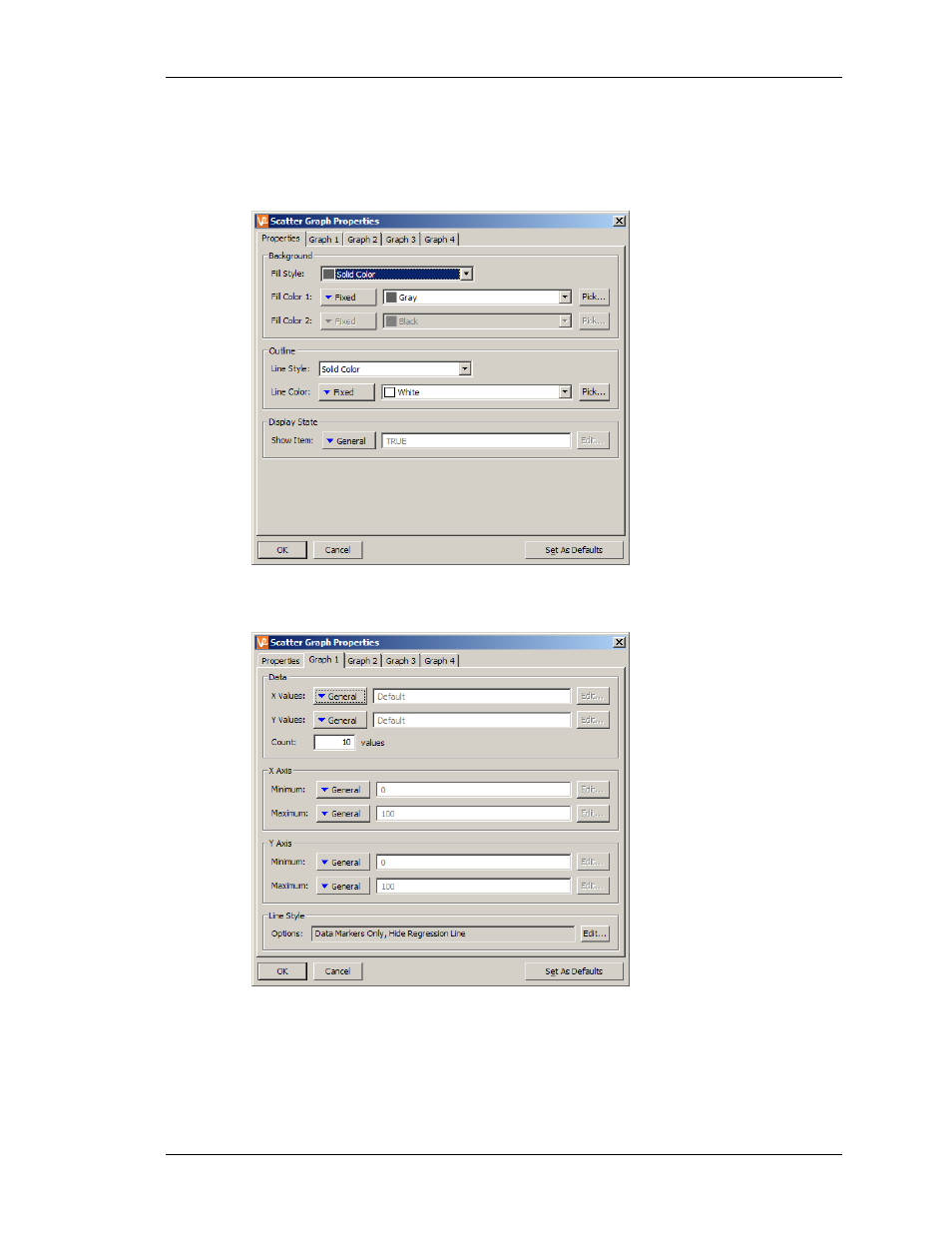

The properties are split over five tabbed pages, one general, and one for each set/graph, and
are accessed by double-clicking the primitive. The Properties tab defines the common
features for all the graphs such as the background and outline color or if the primitive should
be displayed or not using the Show Item field.
Each graph is composed of the same proprietary set of properties. Data sources and scaling
are defined directly on the graph tab. The format and style are accessible via the Edit button.
• The X Values property is used to define the array element that contains the first x
coordinate to be plotted, while the Y Values property is used to define the array
element that contains associated y coordinate.
• The Count property is used to specify the number of values to be shown.
