The X Axis Minimum and X Axis Maximum properties are used to specify the
scaling for the horizontal axis, while the Y Axis Minimum and Y Axis Maximum
properties are used to specify the scaling for the vertical axis.

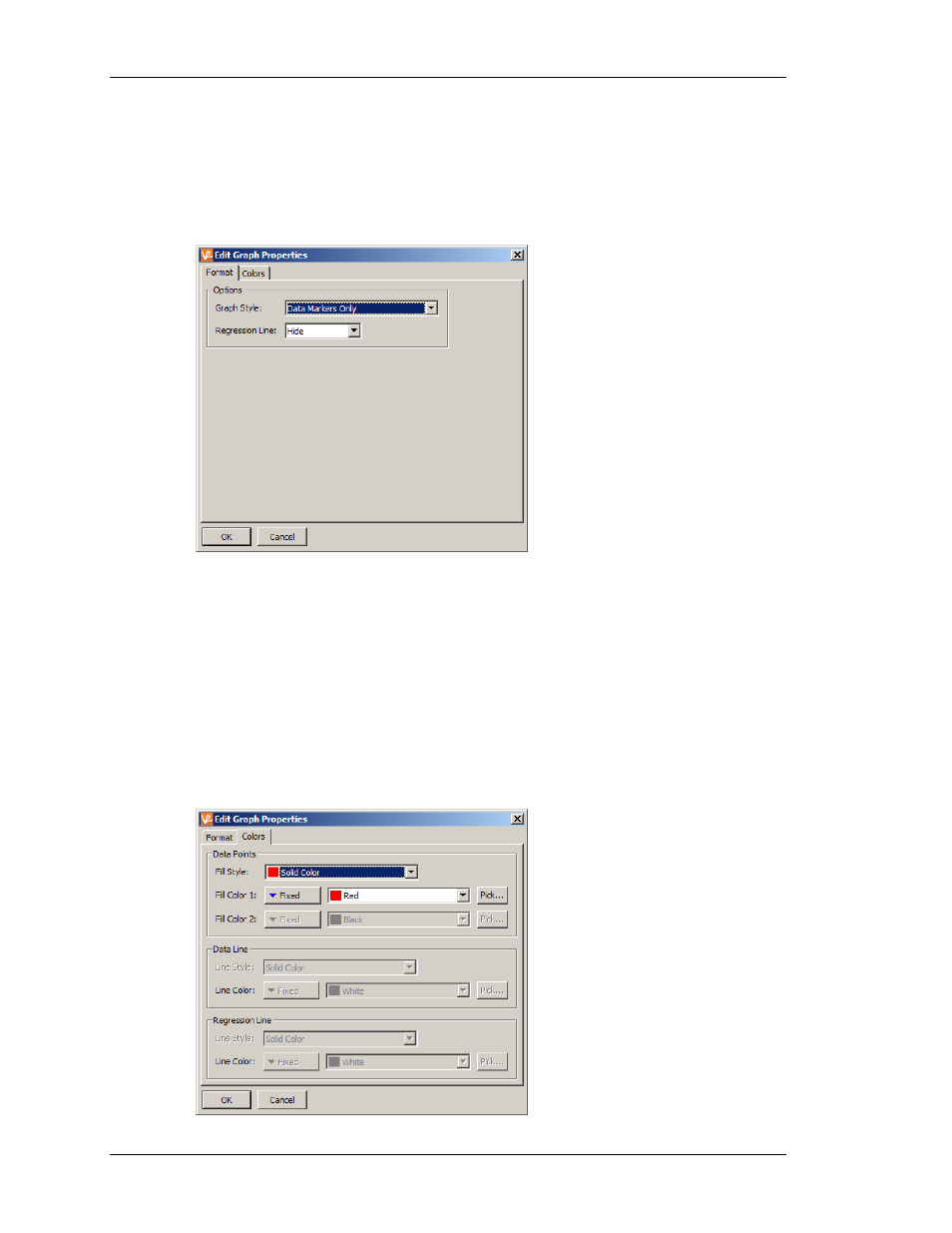

The Edit Graph Properties window accessed via the Edit button defines various formatting
options.
•
The Graph Style property is used to select between a line graph, a line graph
with data markers, or a set of data markers without a line. The various other
formatting options on the Color page will be enabled or disabled as required.
•
The Regression Line property is used to show or hide the regression line for the
data sets. If the line is enabled, the software will calculate a best-fit line based
upon the least-squares method, and draw it on top of the data sets.
•
The remaining properties are used to define the background color of the
primitive, and whether or not an outline should be drawn around its outer edge.
The Colors tab defines the colors of the various chart elements for this graph…
