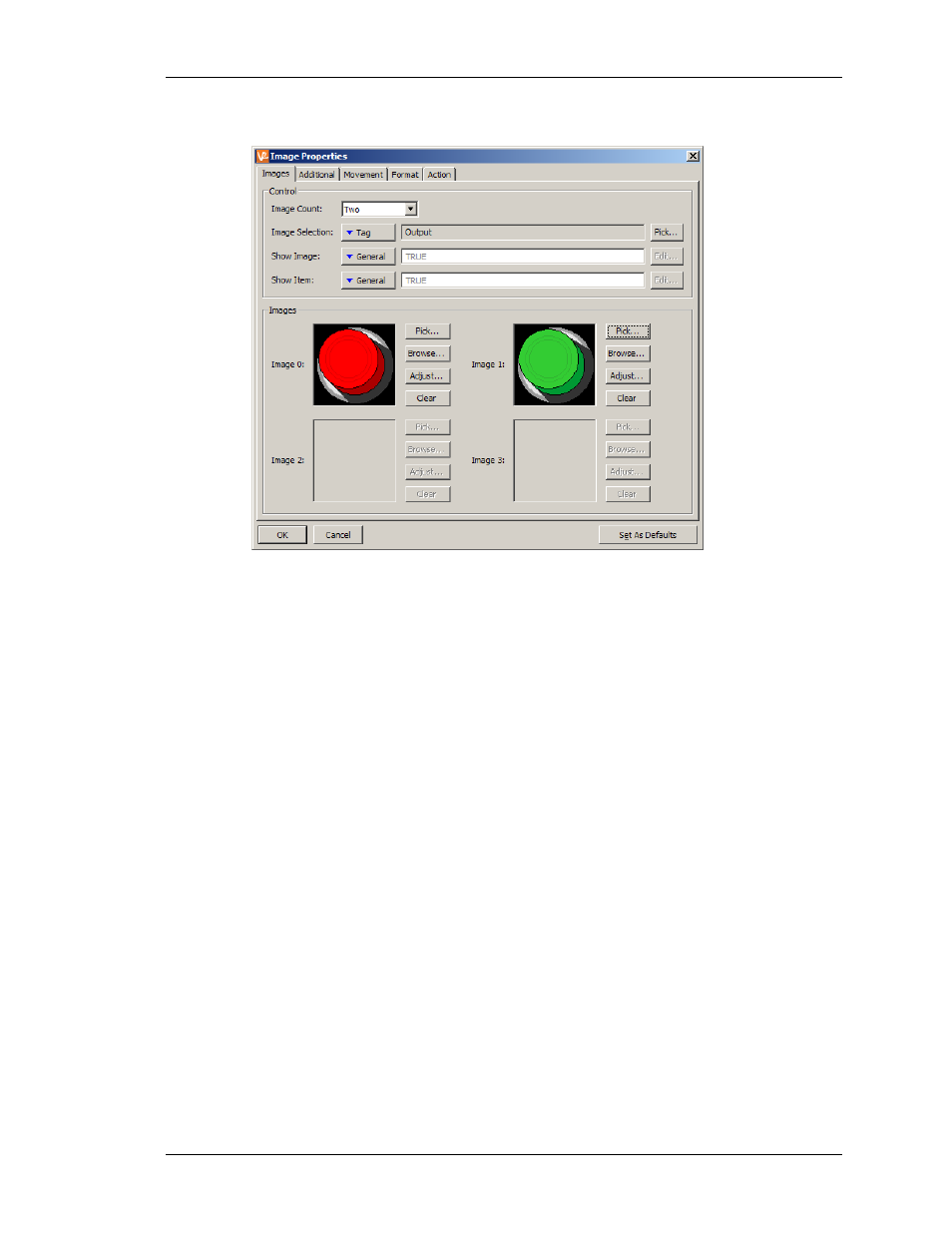

The first tab is used to select the images to be displayed…
• The Image Count property is used to indicate how many different images should
be displayed by this primitive. Up to ten different images can be shown.
• The Image Selection property is a numeric value used to select between the
various images if an Image Count of greater than one has been configured. A
value of zero will display Image 0 and so on.
• The Image Visible property is a true-or-false value used to hide or show the
selected image. If you want the image to be hidden, you must not select No Fill
for the Background when defining the background format.
• The Image properties define each particular image. The Pick button next to each
image can be used to launch the image library to allow an image to be selected;
the Browse button can be used to open a file containing a bitmap, a JPEG or a
Windows metafile; the Clear button can be used to remove the image; and the
Adjust button can be used to edit the image as discussed below.
