A DVANCED C OMMUNICATIONS W ORKING WITH M ODEMS
R EVISION 1 P AGE 35
specify the timeout after which the link will be terminated if no packets have
been transmitted by the Gateway.
• The Logon Username and Logon Password properties are used to define the
credentials that will be passed to the remote server when attempting to initialize
this connection. The username is not case sensitive, while the password is.
Fieldbus Gateway Manager’s PPP implementation will ask its peer to use CHAP
authentication to avoid transmitting or receiving plaintext password, but will
fallback to using PAP if the remote server does not support CHAP.
• The Route Type property is used to define the data that will be transferred via
this interface. For on-demand connections, this effectively defines when the
connection will be activated. If Default Gateway is selected, any packets that do
not match the address and netmask of the Ethernet connection will be sent to this
interface. Note that in this mode, the Ethernet port must have a gateway setting
of 0.0.0.0, or it will take all the packets and leave none to activate the modem! If
Specific Network is selected, you must provide the address and netmask that
defines the network to which packets will be routed.
A DDING AN SMS C ONNECTION
SMS connections are used when text messaging functionality is required, but where neither
dial-in nor dial-out PPP connections will be established. They are configured as described
above, except that the SMS via GSM Modem device should be selected for the required port.

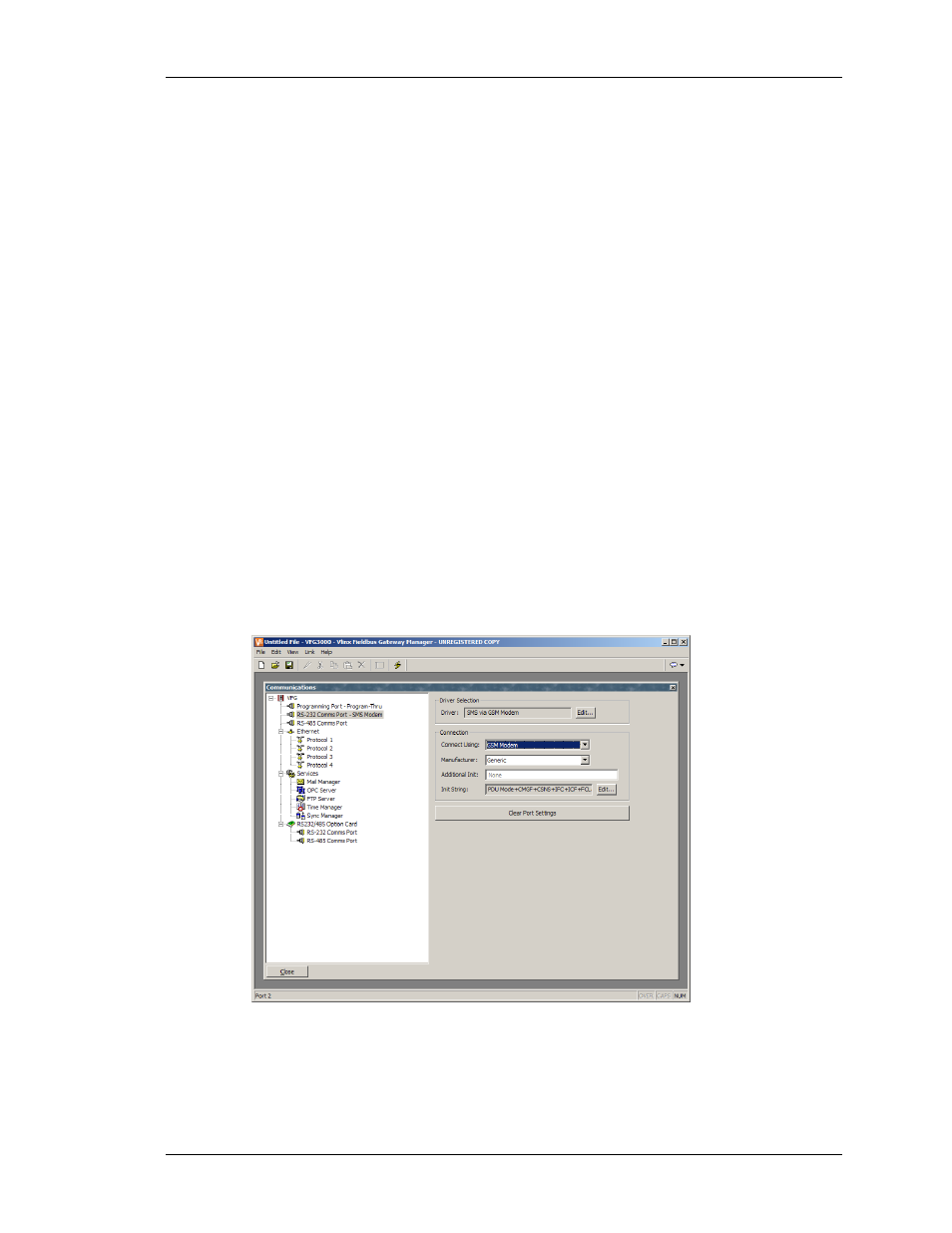

The configuration options for this modem are shown below…
The device properties are a subset of those provided for dial-in connections. SMS support is
always enabled with this driver, but once again, note that in order for SMS messaging to
operate properly, you will also have to enable the SMS Transport using the Mail icon in the
Communications window.
