Figure 10 installation scenario a – ZyXEL Communications IES-612-51A User Manual
Page 54
Chapter 3 Front Panel
IES-612-51A User’s Guide
54

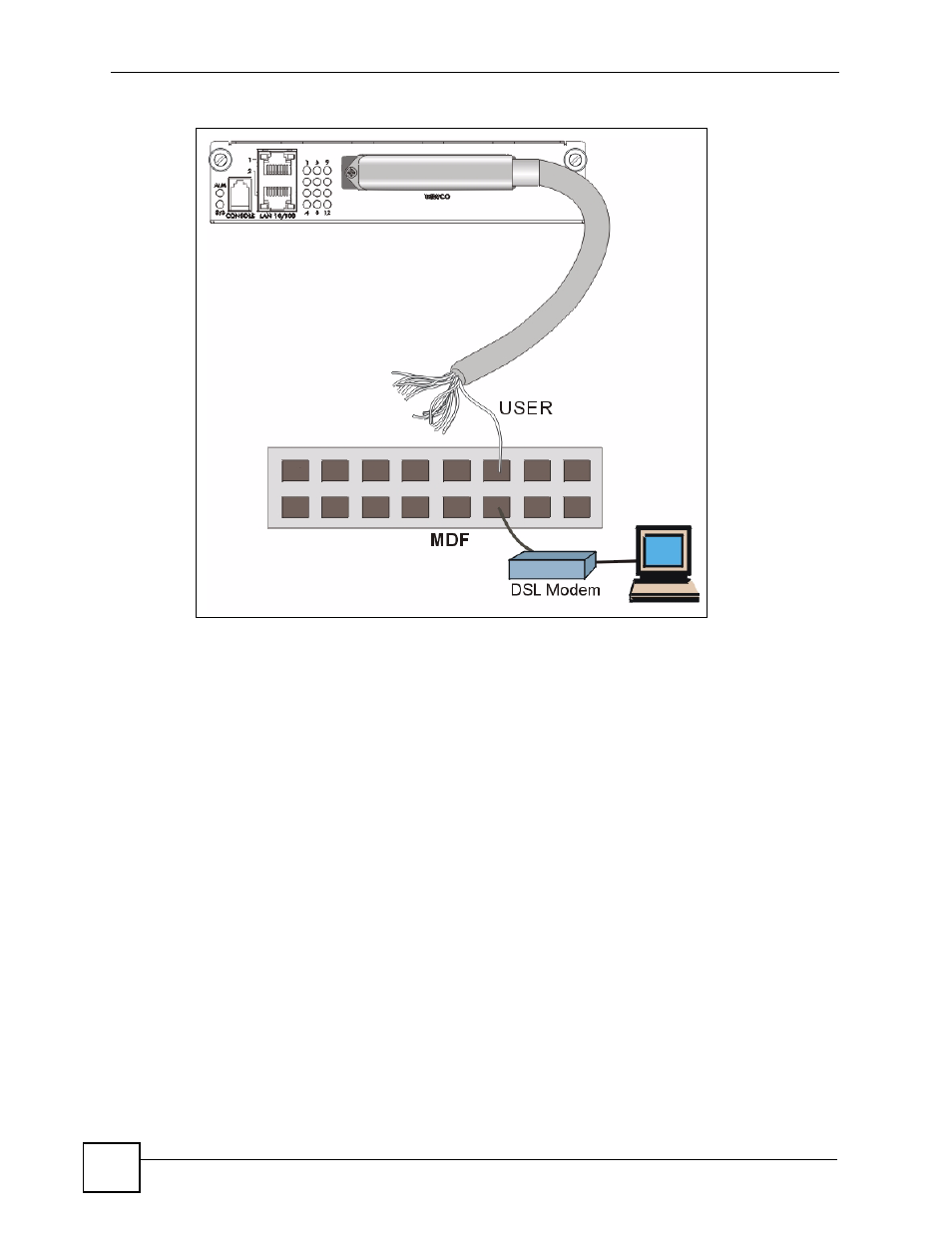

Figure 10 Installation Scenario A
3.2.7.1.1 Procedure To Connect To An MDF
1 Connect the Telco-50 connector end of the cable to the Telco-50 connector.
2 Connect the USER wiring on the other end of the Telco-50 cable to the upper ports of the
MDF using a punch-down tool.
3 Connect the telephone wiring from each end-user's DSL modem to the lower ports of the
MDF.
3.2.7.2 Installation Scenario B
Phone service is available. There is one MDF from which end-users CO connections are made
(see next figure).
