Page 168
Chapter 19 Multicast VLAN
IES-612-51A User’s Guide
168
19.4 MVLAN Group Screen
Use this screen to configure ranges of multicast IP addresses for each multicast VLAN. To
open this screen, click Advanced Application, Multicast VLAN, MVLAN Group.

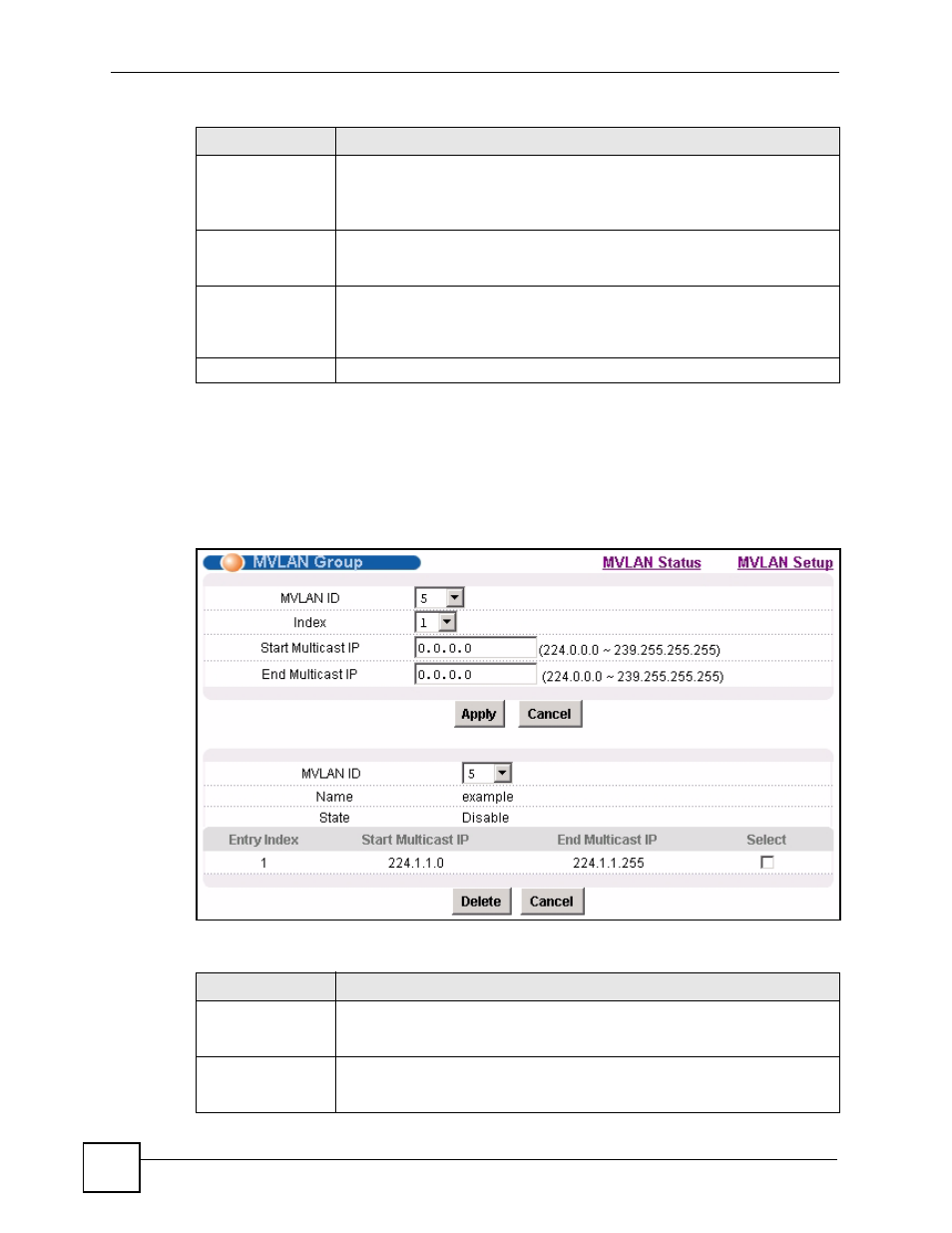

Figure 79 MVLAN Group
The following table describes the labels in this screen.
Control
Select Fixed for the port to be a permanent member of this multicast VLAN. Use
the Select All button to include every port.
Select Forbidden if you want to prohibit the port from joining this multicast
VLAN. Use the Select All button to include every port.
Tagging
Select TX Tagging if you want the port to tag all outgoing frames transmitted
with this VLAN ID. Use the All button to include every port. Use the None button
to clear all of the ports check boxes.
Add
Click Add to save your changes to the IES-612-51A’s volatile memory. The IES-
612-51A loses these changes if it is turned off or loses power, so use the Config
Save link on the navigation panel to save your changes to the non-volatile
memory when you are done configuring.
Cancel
Click Cancel to begin configuring the fields afresh.
Table 44 MVLAN Setup (continued)
LABEL
DESCRIPTION
Table 45 MVLAN Group
LABEL
DESCRIPTION
MVLAN Status
Click MVLAN Status to open the MVLAN Status screen where you can view a
summary of all multicast VLAN on the IES-612-51A (see
).
MVLAN Setup
Click MVLAN Setup to open the MVLAN Setup screen where you can
configure basic settings and port members for each multicast VLAN (see
).
