Chapter 17 IGMP
IES-612-51A User’s Guide
155

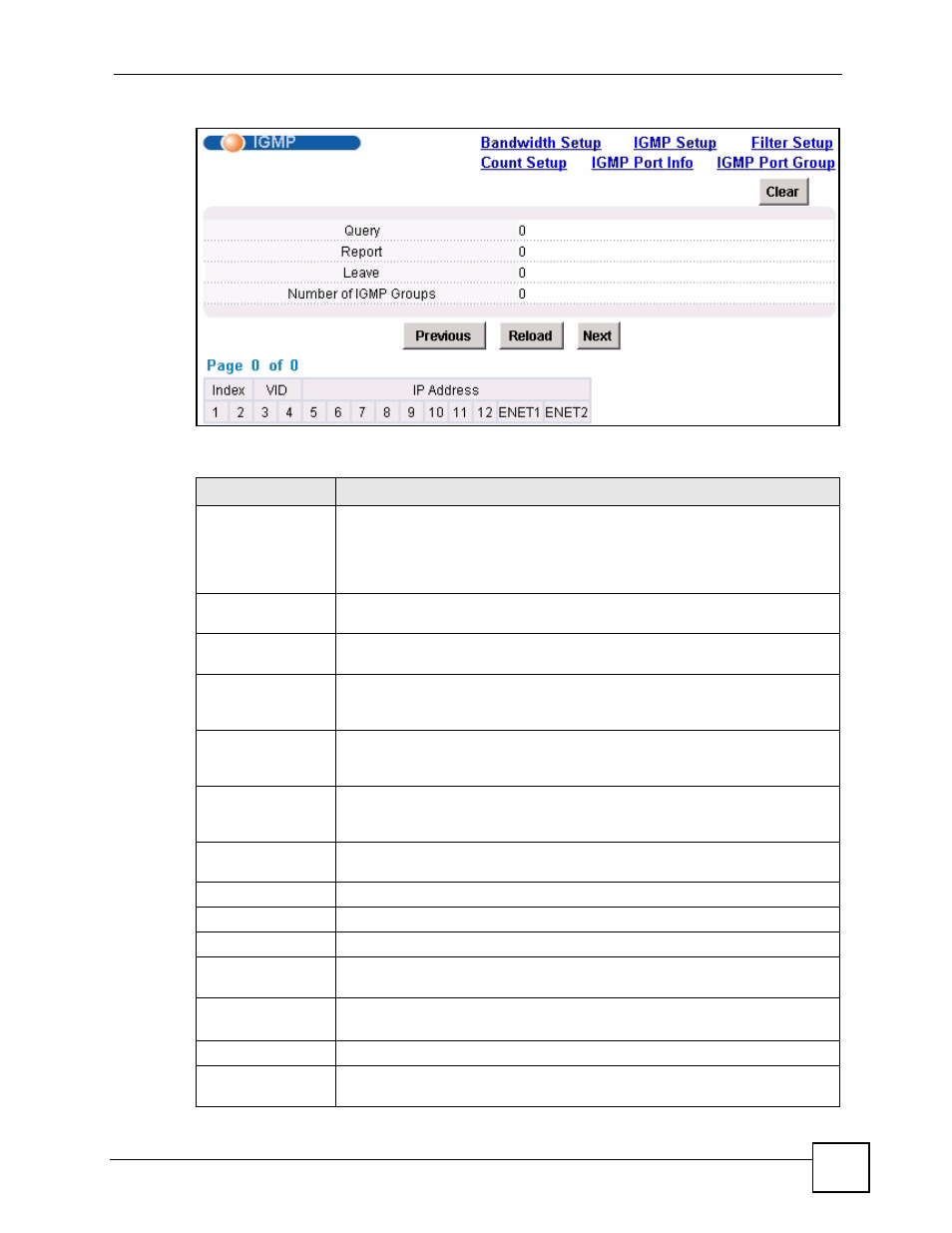

Figure 69 IGMP (Status)
The following table describes the labels in this screen.
Table 35 IGMP (Status)
LABEL
DESCRIPTION
Bandwidth Setup
Click Bandwidth Setup to open the IGMP Bandwidth screen where you can
set up bandwidth requirements for multicast channels (see
). You can also open the Bandwidth Port Setup screen to set up
multicast bandwidth requirements for selected ports (see
).
IGMP Setup
Click IGMP Setup to open the IGMP Setup screen where you can configure
IGMP settings (see
).
Filter Setup
Click Filter Setup to open the IGMP Filter Profile screen where you can
configure IGMP multicast filter profiles (see
).
Count Setup
Click Count Setup to open the IGMP Count screen where you can limit the
number of IGMP groups a subscriber on a port can join (see
).
IGMP Port Info
Click IGMP Port Info to open the IGMP Port Info screen where you can look at
the current number of IGMP-related packets received on each port (see
IGMP Port Group
Click IGMP Port Group to open the IGMP Port Group screen where you can
look at the current list of multicast groups each port has joined (see
Clear
Click Clear to delete the information the IES-612-51A has learned about
multicast groups. This resets every counter in this screen.
Query
This is the total number of Query packets received.
Report
This is the total number of Report packets received.
Leave
This is the total number of Leave packets received.
Number of IGMP
Groups
This is how many IGMP groups the IES-612-51A has identified on the local
network.
Previous
Next
Click one of these buttons to show the previous/next screen if all of the
information cannot be seen in one screen.
Reload
Click this button to refresh the screen.
Page X of X
This identifies which page of information is displayed and the total number of
pages of information.
