Chapter 27 RFC 2684 Routed Mode
IES-612-51A User’s Guide
198
27.3 2684 Routed Domain Screen
Use this screen to configure domains for 2684 routed mode traffic. The domain is the range of
IP addresses behind the subscriber’s device (the CPE). This includes the CPE device’s LAN IP
addresses and the IP addresses of the LAN computers.
To open this screen, click Advanced Application, 2684 Routed Mode, Routed Domain.

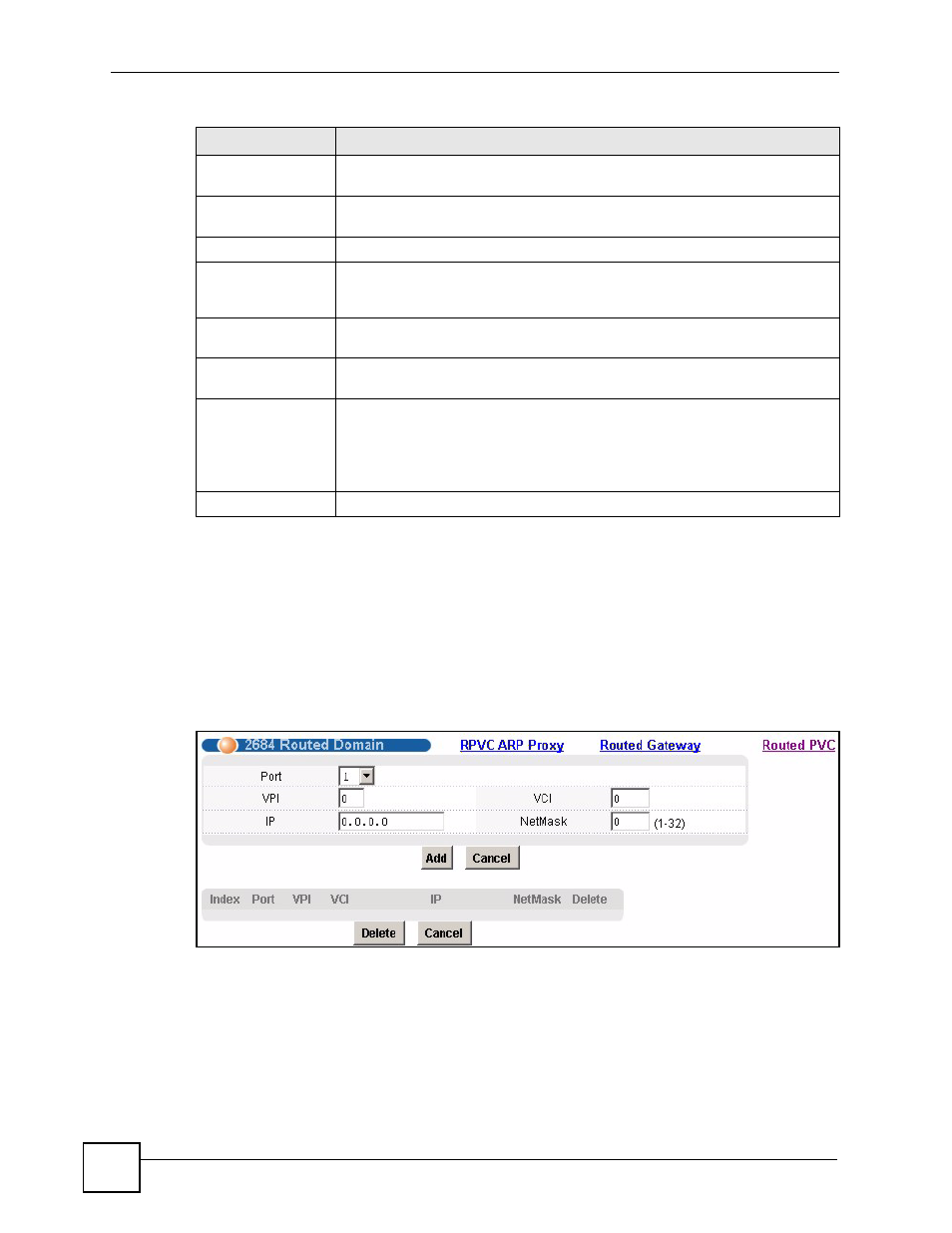

Figure 98 2684 Routed Domain
VPI This field displays the Virtual Path Identifier (VPI) The VPI and VCI identify a
channel on this port.
VCI This field displays the Virtual Circuit Identifier (VCI). The VPI and VCI identify a
channel on this port.
IP This field displays the subscriber’s IP address.
DS / US VC Profile This shows which VC profile this channel uses for downstream traffic shaping.
The VC profile for upstream policing also displays if the channel is configured to
use one.
NetMask This field displays the bit number of the subnet mask of the subscriber’s IP
address.
Gateway IP This field displays the IP address of the gateway to which you want to send the
traffic that the system receives from this PVC.
Delete Select an entry’s Delete check box and click Delete to remove the entry.
Clicking Delete saves your changes to the IES-612-51A’s volatile memory.
The IES-612-51A loses these changes if it is turned off or loses power, so use
the Config Save link on the navigation panel to save your changes to the non-
volatile memory when you are done configuring.
Cancel Click Cancel to start configuring the screen again.
Table 59 RFC 2684 Routed PVC (continued)
LABEL DESCRIPTION
