Chapter 31 ACL
IES-612-51A User’s Guide
220

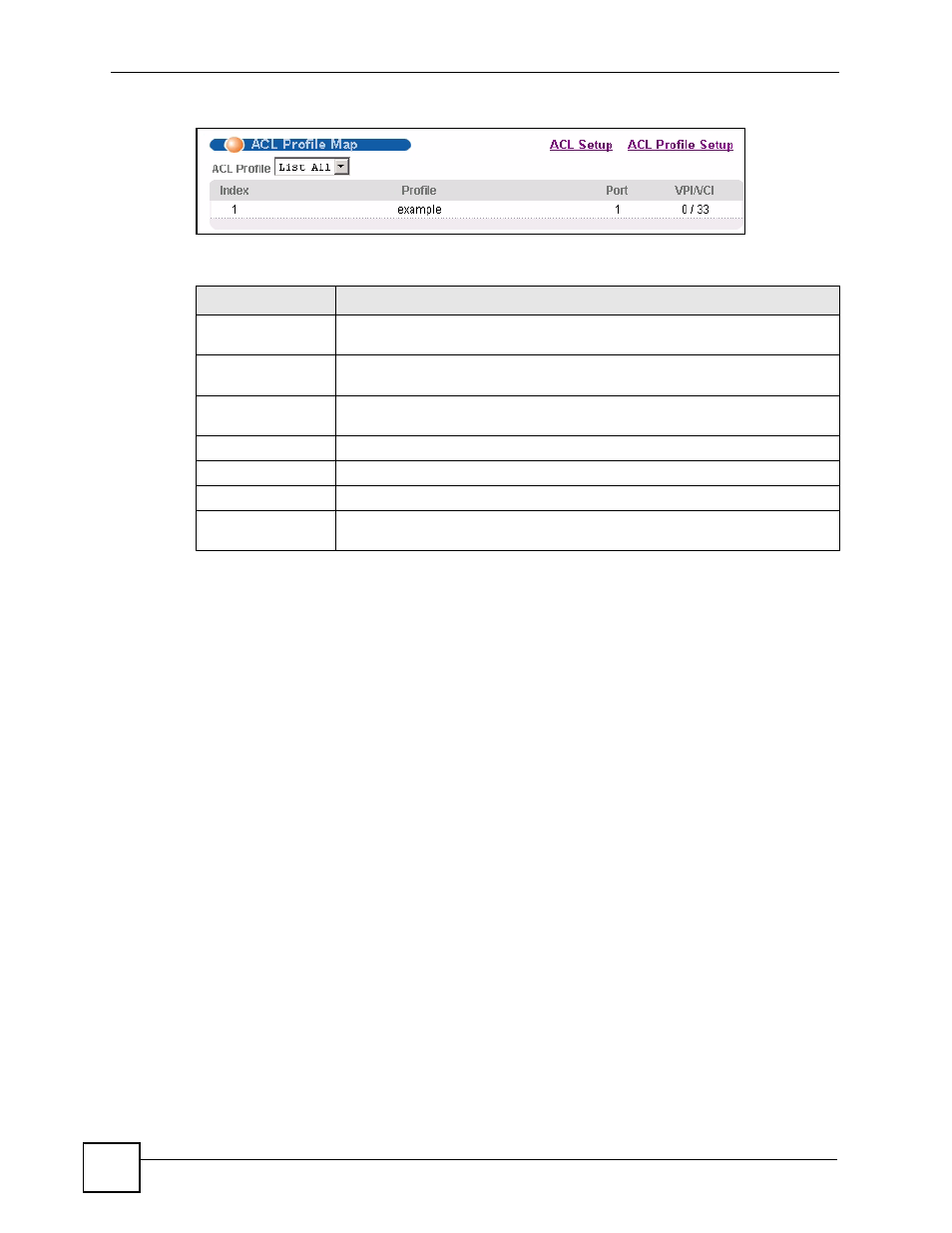

Figure 110 ACL Profile Map
The following table describes the labels in this screen.
Table 70 ACL Profile Map
LABEL DESCRIPTION
ACL Setup Click ACL Setup to open the screen where you can assign ACL profiles to
PVCs (see
Section 31.2 on page 216 ).
ACL Profile Setup Click ACL Profile Setup to open the screen where you can set up ACL profiles
(see
Section 31.3 on page 218 ).
ACL Profile Select the ACL profile(s) for which you want to see which PVCs are assigned to
it.
Index This field displays the number of an entry.
Profile This field shows the ACL profile assigned to this PVC.
Port This field displays the DSL port number on which the PVC is configured.
VPI/VCI This field displays the Virtual Path Identifier (VPI) and Virtual Circuit Identifier
(VCI). The VPI and VCI identify a channel on this port.
