Chapter 22 Spanning Tree Protocol
IES-612-51A User’s Guide
177
22.2 Spanning Tree Protocol Status Screen
To open this screen, click Advanced Application, Spanning Tree Protocol.

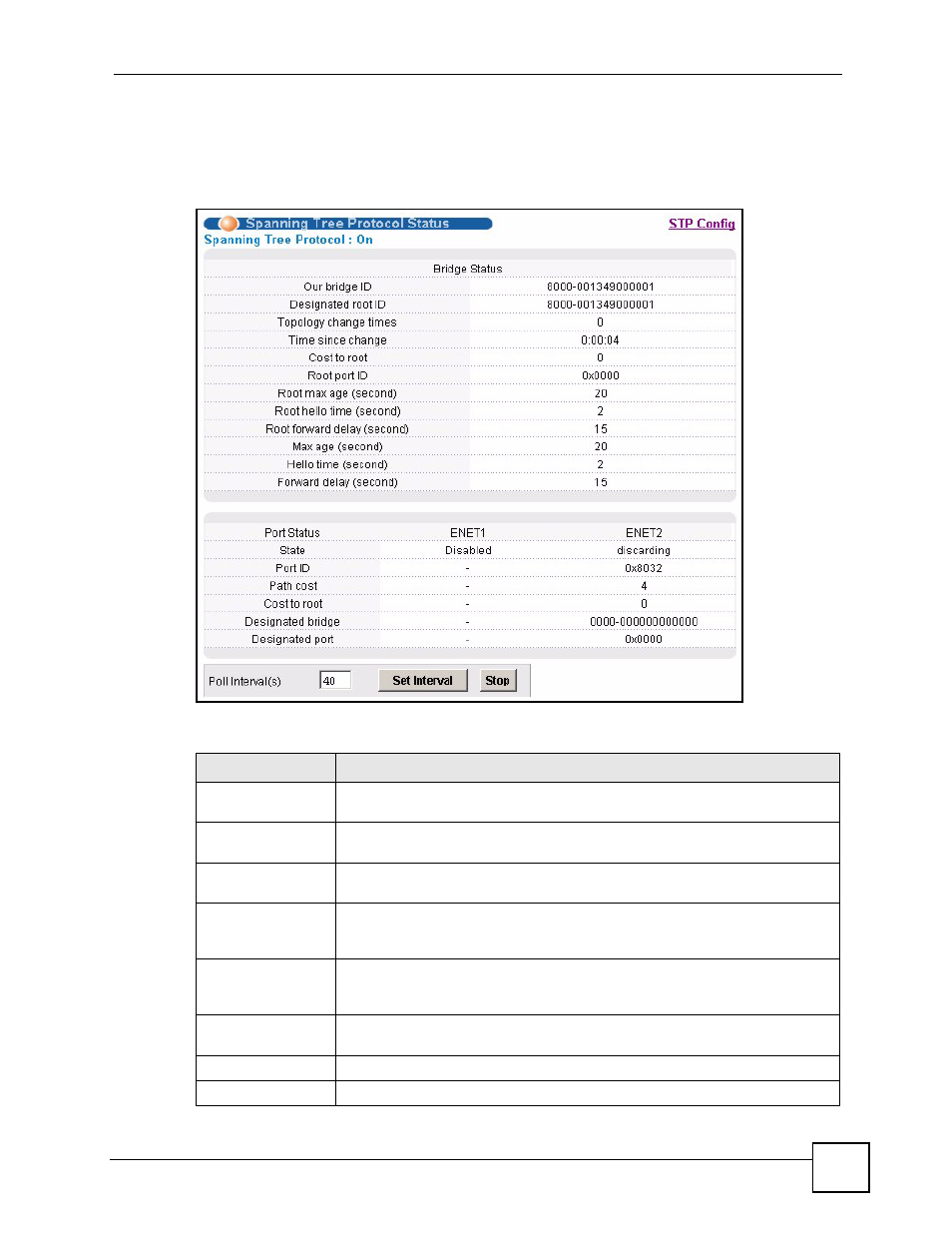

Figure 83 Spanning Tree Protocol Status
The following table describes the labels in this screen.
Table 50 Spanning Tree Protocol Status
LABEL DESCRIPTION
STP Config Click STP Config to modify the IES-612-51A’s STP settings (see Section 22.3
on page 178 ).
Spanning Tree
Protocol This field displays On if STP is activated. Otherwise, it displays Off.
Bridge Status If STP is activated, the following fields appear. If STP is not activated, Disabled
appears.
Our bridge ID This is the unique identifier for this bridge, consisting of bridge priority plus MAC
address. This ID is the same in Designated root ID if the IES-612-51A is the
root switch.
Designated root ID This is the unique identifier for the root bridge, consisting of bridge priority plus
MAC address. This ID is the same in Our bridge ID if the IES-612-51A is the
root switch.
Topology change
times This is the number of times the spanning tree has been reconfigured.
Time since change This is the time since the spanning tree was last reconfigured.
Cost to root This is the path cost from the root port on this switch to the root switch.
