Chapter 13 xDSL Port Setup
IES-612-51A User’s Guide
117

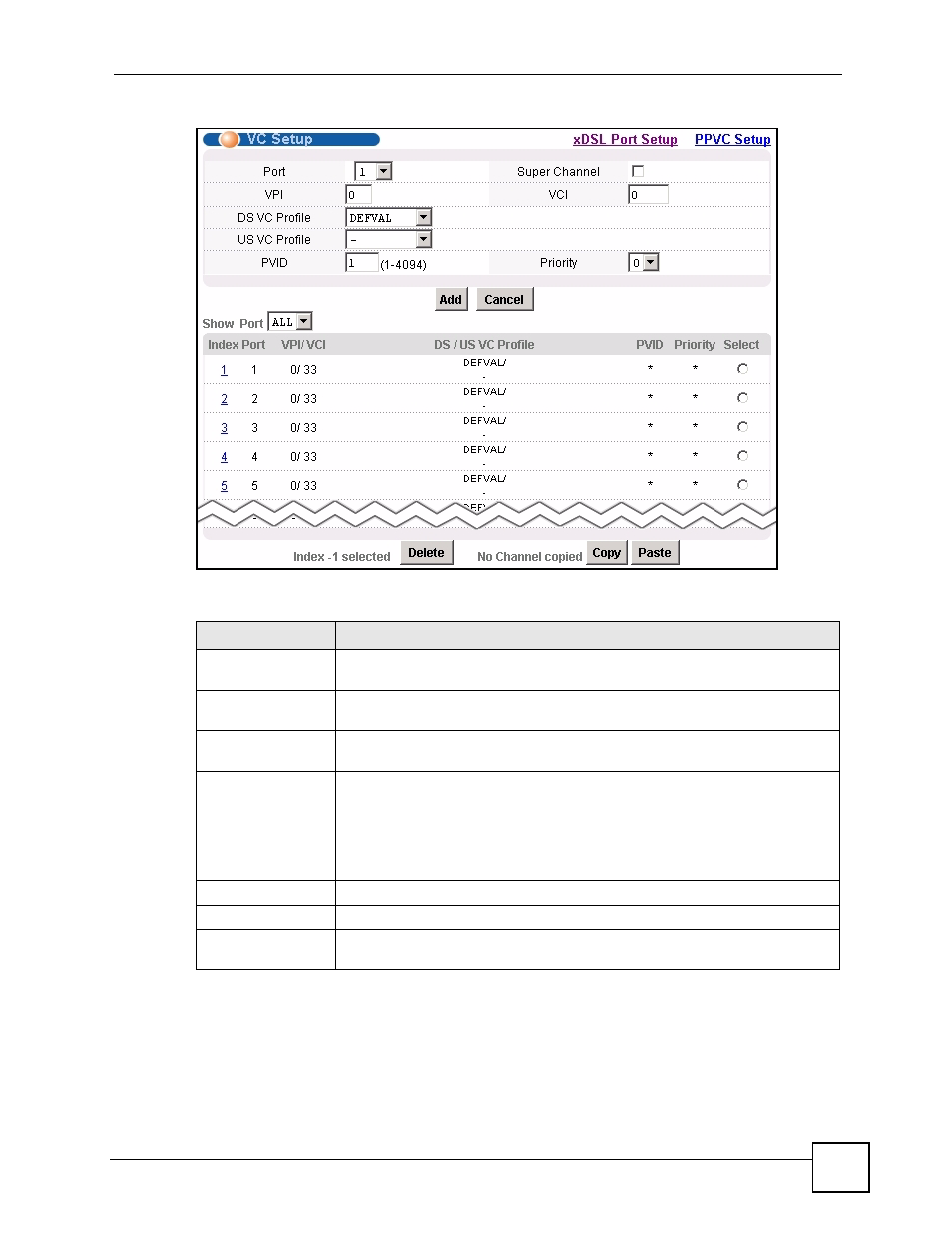

Figure 49 VC Setup
The following table describes the labels in this screen.
Table 21 VC Setup
LABEL DESCRIPTION
xDSL Port Setup Click xDSL Port Setup to go to the screen where you can configure DSL port
settings (see
Section 13.7 on page 109 ).
PPVC Setup Click PPVC Setup to open the PPVC Setup screen where you can configure
priority PVC settings for the DSL ports (see
Section 13.11 on page 121 ).
Port Use this drop-down list box to select a port for which you wish to view or
configure settings. This field is read-only once you click on a port number below.
Super Channel The IES-612-51A forwards frames belonging to VLAN groups that are not
assigned to specific channels to the super channel.
Enable the super channel option to have this channel forward frames belonging
to multiple VLAN groups (that are not assigned to other channels).
The super channel functions in the same way as the channel in a single channel
environment.
VPI Type the Virtual Path Identifier for a channel on this port.
VCI Type the Virtual Circuit Identifier for a channel on this port.
DS VC Profile Use the drop-down list box to select a VC profile to use for this channel’s
downstream traffic shaping.
