Chapter 27 RFC 2684 Routed Mode
IES-612-51A User’s Guide
197

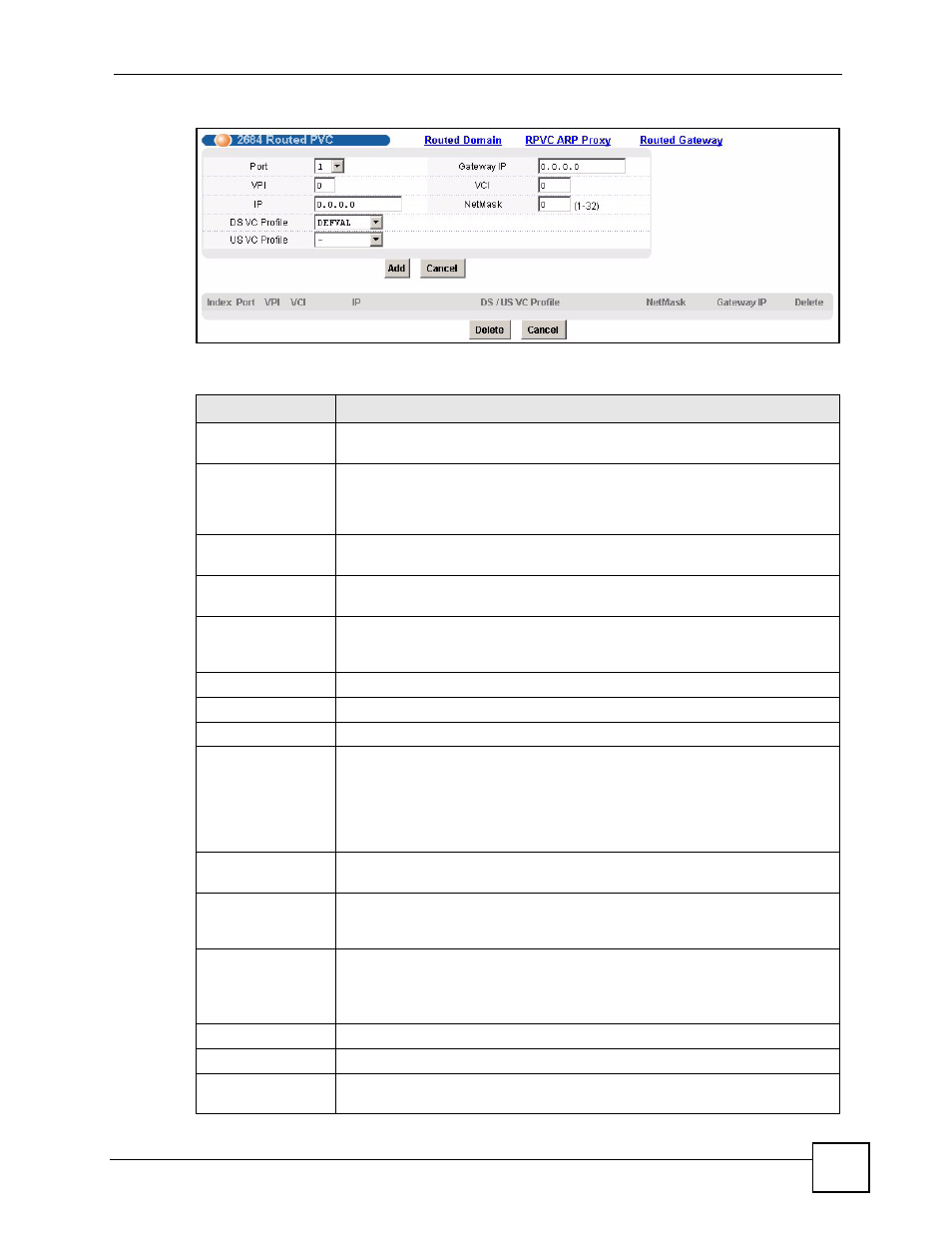

Figure 97 RFC 2684 Routed PVC
The following table describes the labels in this screen.
Table 59 RFC 2684 Routed PVC
LABEL DESCRIPTION
Routed Domain Click Routed Domain to open this screen where you can configure domains for
2684 routed mode traffic (see
Section 27.3 on page 198 ).
RPVC ARP Proxy Click RPVC ARP Proxy to go to the screen where you can view the Address
Resolution Protocol table of IP addresses of CPE devices using 2684 routed
mode and configure how long the device is to store them (see
Section 27.4 on
page 199 ).
Routed Gateway Click Routed Gateway to go to the screen where you can configure gateway
settings (see
Section 27.5 on page 200 ).
Port Use this drop-down list box to select a port for which you wish to configure
settings.
Gateway IP Enter the IP address of the gateway to which you want to send the traffic that
the system receives from this PVC. Enter the IP address in dotted decimal
notation.
VPI Type the Virtual Path Identifier for this routed PVC.
VCI Type the Virtual Circuit Identifier for this routed PVC.
IP Enter the subscriber’s CPE WAN IP address in dotted decimal notation.
NetMask The bit number of the subnet mask of the subscriber’s WAN IP address. To find
the bit number, convert the subnet mask to binary and add all of the 1’s together.
Take “255.255.255.0” for example. 255 converts to eight 1’s in binary. There are
three 255’s, so add three eights together and you get the bit number (24).
Make sure that the routed PVC’s subnet does not include the IES-612-51A’s IP
address.
DS VC Profile Use the drop-down list box to select a VC profile to use for this channel’s
downstream traffic shaping.
US VC Profile Use the drop-down list box to select a VC profile to use for this channel’s
upstream traffic. The IES-612-51A does not perform upstream traffic policing if
you do not specify an upstream VC profile.
Add Click Add to save your changes to the IES-612-51A’s volatile memory.
The IES-612-51A loses these changes if it is turned off or loses power, so use
the Config Save link on the navigation panel to save your changes to the non-
volatile memory when you are done configuring.
Cancel Click Cancel to start configuring the screen again.
Index This field displays the number of the routed PVC.
Port This field displays the number of the DSL port on which the routed PVC is
configured.
