17.4.1 Bandwidth Port Setup Screen
Use this screen to set up multicast bandwidth requirements for specific ports. To open this
screen, click Advanced Application, IGMP, Bandwidth Setup, Port Setup.

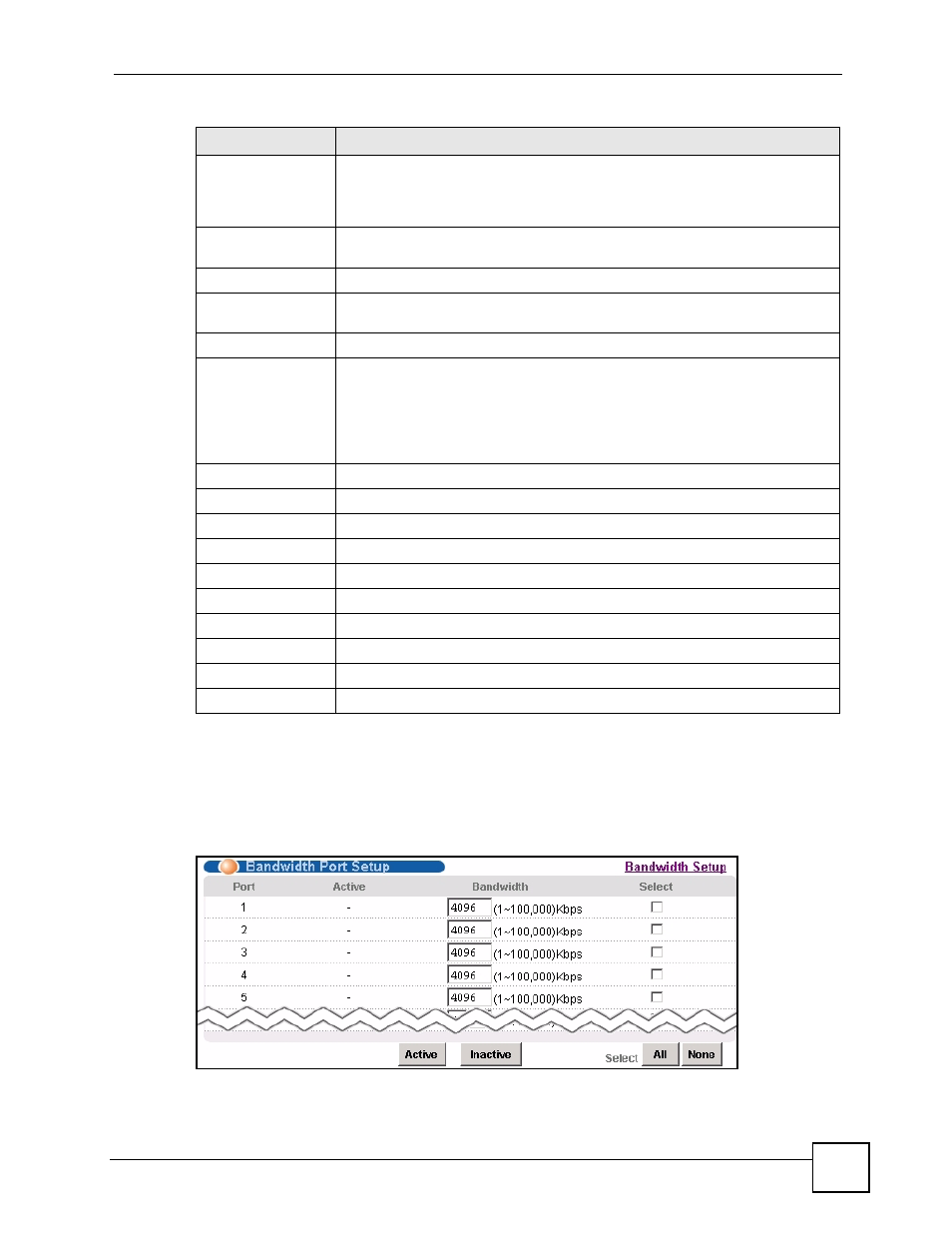

Figure 71 Bandwidth Port Setup
Apply Click Apply to save your changes to the IES-612-51A’s volatile memory. The
IES-612-51A loses these changes if it is turned off or loses power, so use the
Config Save link on the navigation panel to save your changes to the non-
volatile memory when you are done configuring.
Index Select a unique number for this setting. If you select a number that is already
used, the new setting overwrites the old one when you click Apply.
Start Multicast IP Enter the beginning of the multicast range.
End Multicast IP Enter the end of the multicast range. For one multicast address, enter the start
of the multicast range again.
Bandwidth Enter the bandwidth requirement for the specified multicast range.
Apply Click Apply to save the filter settings. The settings then display in the summary
table at the bottom of the screen.
Clicking Apply saves your changes to the IES-612-51A’s volatile memory. The
IES-612-51A loses these changes if it is turned off or loses power, so use the
Config Save link on the navigation panel to save your changes to the non-
volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring the fields afresh.
This table shows the multicast range settings.
Index This field displays the number that identifies this setting.
Start Multicast IP This field displays the beginning of the multicast range.
End Multicast IP This field displays the end of the multicast range.
Bandwidth This field displays the allowed bandwidth for the specified multicast range.
Select Select this, and click Delete to remove the setting.
Delete Click this to remove the selected settings.
Select All Click this to select all entries in the table.
Select None Click this to un-select all entries in the table.
Table 36 IGMP Bandwidth (continued)
LABEL DESCRIPTION
