Chapter 16 VLAN
IES-612-51A User’s Guide
150

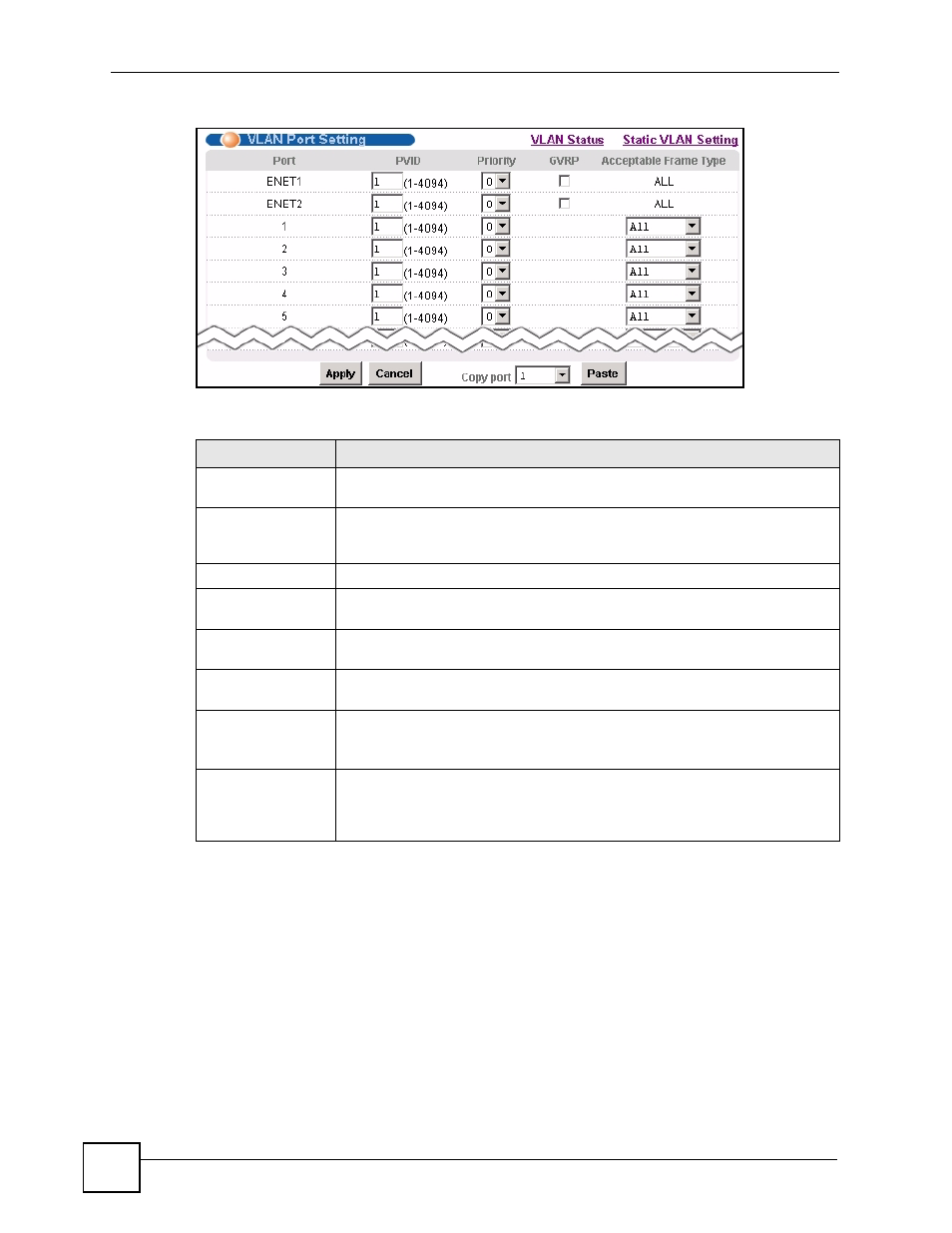

Figure 66 VLAN Port Setting
The following table describes the labels in this screen.
Table 34 VLAN Port Setting
LABEL DESCRIPTION
VLAN Status Click VLAN Status to see which of the IES-612-51A’s ports are members of
which VLANs (see
Section 16.3 on page 146 ).
Static VLAN Click Static VLAN to configure ports to dynamically join a VLAN group or
permanently assign ports to a VLAN group or prohibit ports from joining a VLAN
group (see
Section 16.4 on page 148 ).
Port The port numbers identify the IES-612-51A’s ports.
PVID Type the Port VLAN ID (PVID) from 1 to 4094. The IES-612-51A assigns the
PVID to untagged frames or priority frames (0 VID) received on this port.
Priority Select an IEEE 802.1p priority to assign to untagged frames or priority frames (0
VID) received on this port.
GVRP Select this check box if the IES-612-51A should use GVRP to automatically
register and configure VLAN membership.
Acceptable Frame
Type Select All to have the port accept both tagged and untagged incoming frames.
A
Select Tag Only to have the port only accept incoming frames that have a
VLAN tag.
Apply Click Apply to save your changes to the IES-612-51A’s volatile memory. The
IES-612-51A loses these changes if it is turned off or loses power, so use the
Config Save link on the navigation panel to save your changes to the non-
volatile memory when you are done configuring.
