Chapter 19 Multicast VLAN
IES-612-51A User’s Guide
167

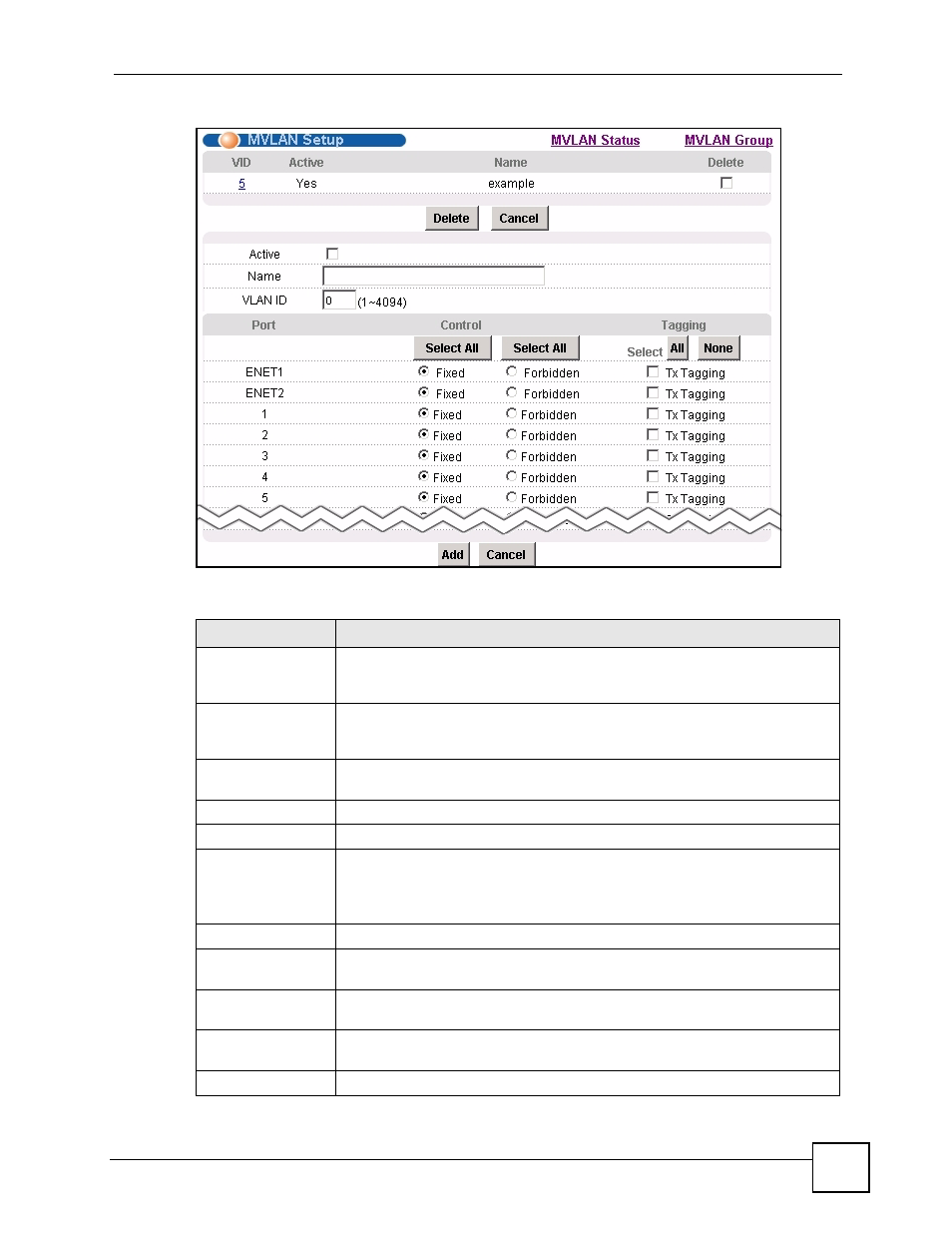

Figure 78 MVLAN Setup
The following table describes the labels in this screen.
Table 44 MVLAN Setup
LABEL
DESCRIPTION
MVLAN Status
Click MVLAN Status to open the MVLAN Status screen where you can view a
summary of all multicast VLAN on the IES-612-51A (see
).
MVLAN Group
Click MVLAN Group to open the MVLAN Group screen where you can
configure ranges of multicast IP addresses for each multicast VLAN (see
).
VID
This field shows the VLAN ID of each multicast VLAN. Click it to edit its basic
settings and port members in the fields below.
Active
This field shows whether this multicast VLAN is active (Yes) or inactive (No).
Name
This field shows the name of this multicast VLAN.
Delete
Select the check boxes of the rule(s) that you want to remove in the Delete
column and then click the Delete button.
You cannot delete a VLAN if any PVIDs are set to use the VLAN or the VLAN is
the CPU (management) VLAN.
Cancel
Click Cancel to begin configuring the fields afresh.
Active
Select this if you want the multicast VLAN to be active. Clear this if you want the
multicast VLAN to be inactive.
Name
Enter a descriptive name for the multicast VLAN. The name can be 1-31
printable ASCII characters long. Spaces are not allowed.
VLAN ID
Enter the VLAN ID of the multicast VLAN; the valid range is between 1 and
4094.
Port
This field displays each port number.
