Chapter 27 RFC 2684 Routed Mode
IES-612-51A User’s Guide
200

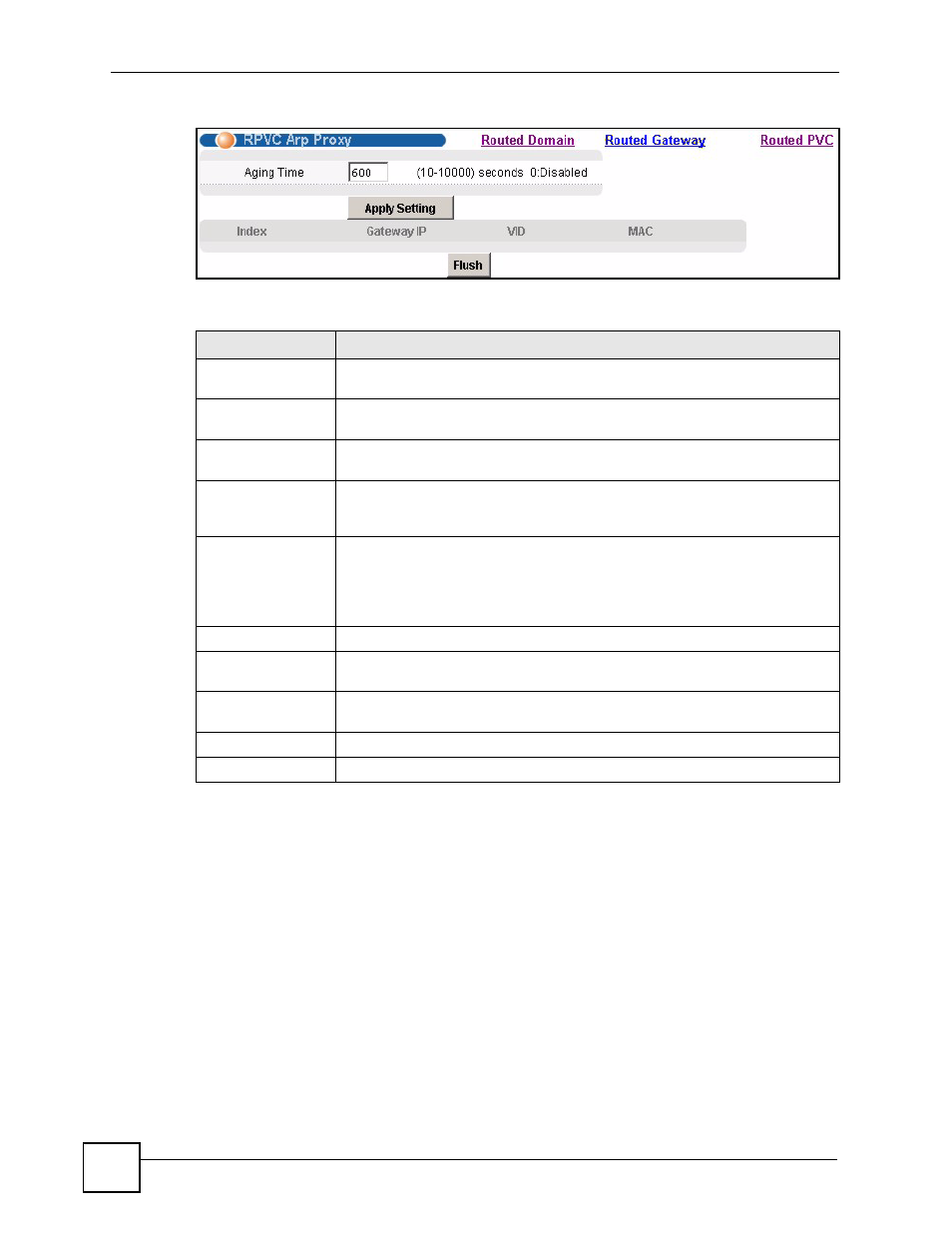

Figure 99 RPVC Arp Proxy
The following table describes the labels in this screen.
27.5 2684 Routed Gateway Screen
Use this screen to configure gateway settings.
To open this screen, click Advanced Application, 2684 Routed Mode, Routed Gateway.
Table 61 RPVC Arp Proxy
LABEL DESCRIPTION
Routed Domain Click Routed Domain to open this screen where you can configure domains for
2684 routed mode traffic (see
Section 27.3 on page 198 ).
Routed Gateway Click Routed Gateway to go to the screen where you can configure gateway
settings (see
Section 27.5 on page 200 ).
Routed PVC Click Routed PVC to go to the screen where you can configure routed PVC
settings (see
Section 27.2 on page 196 ).
Aging Time Enter a number of seconds (10~10000) to set how long the device keeps the
Address Resolution Protocol table’s entries of IP addresses of CPE devices
using 2684 routed mode. Enter 0 to disable the aging time.
Apply Setting Click Apply Setting to save your changes to the IES-612-51A’s volatile
memory.
The IES-612-51A loses these changes if it is turned off or loses power, so use
the Config Save link on the navigation panel to save your changes to the non-
volatile memory when you are done configuring.
Index This field displays the number of the IP address entry.
Gateway IP This field displays the IP address of the gateway to which the device sends the
traffic that it receives from this entry’s IP address.
VID This field displays the VLAN Identifier that the device adds to Ethernet frames
that it sends to this gateway.
MAC This field displays the subscriber’s MAC (Media Access Control) address.
Flush Click Flush to remove all of the entries from the ARP table.
