Telephone call
or manual
transmission
Calling
party Called
party
(TEL/FAX mode)
Ringing
CED
NSF, CSI, DIS
DCN
CNL"OFF"
Load document
Press START
Button
Manual
Transmission
CML ON
2.1 sec
TEL/FAX
Automatic
Switch Over
Time
(20/35 sec)
*2
*3
CNG
Detection
Period
14:14 [T/F]
Indication of LCD
To detect CNG signal
1 sec 1 sec
3.2 sec
FX050VP-C2-018
Ring Back Tone
*1
LIFT HANDSET
AUTO REC. START
OKI TOKYO
RECEIVING /144

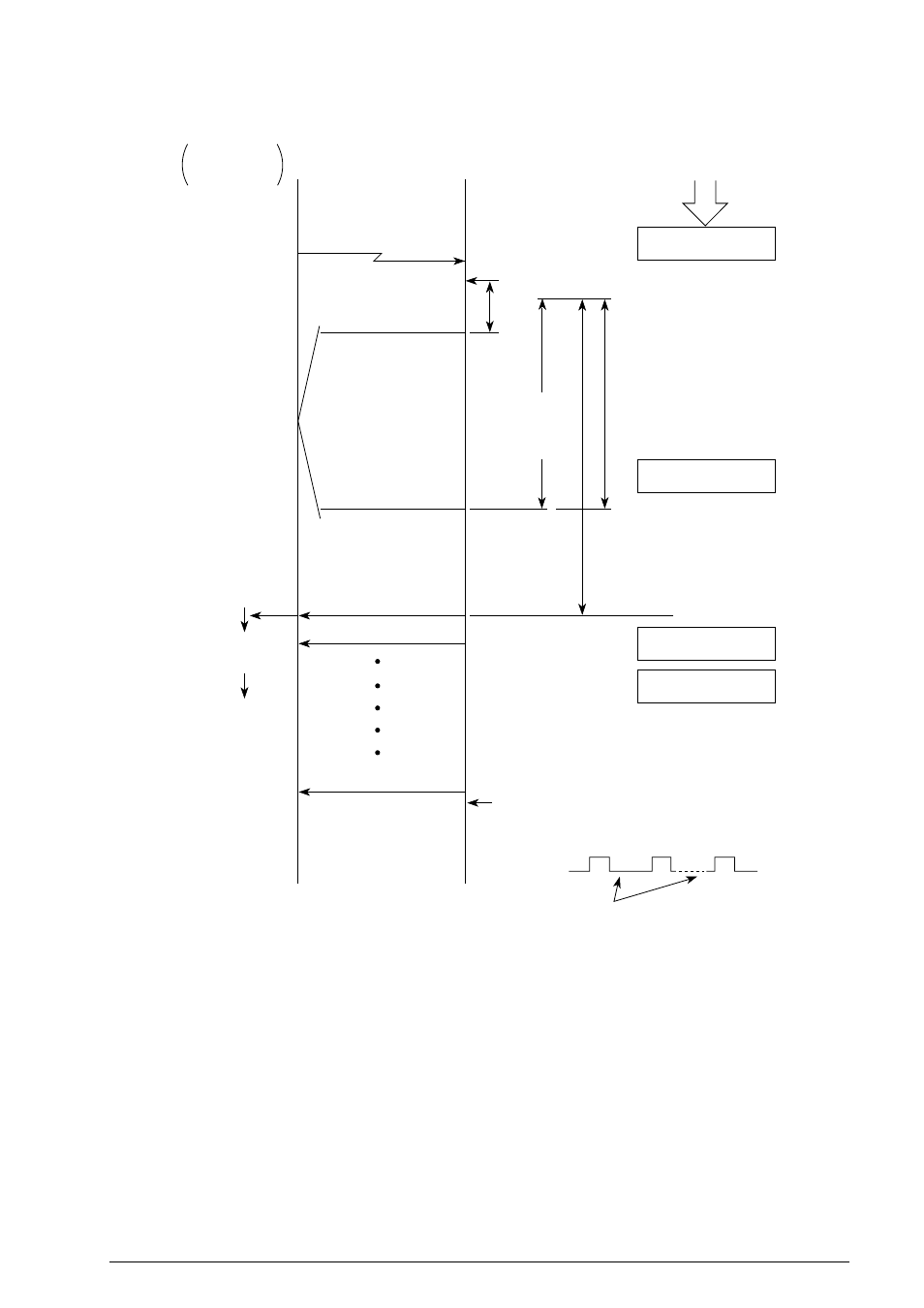

• TEL/FAX mode flow chart
[Notes]
*1: Ring Back Tone — 1 sec. ON, 3.2 sec. OFF
*2: When you want to talk by phone, pick up handset.
*3: The called party can send CED to the calling party immediately to start
FAX communication if the CNG is detected during the period.
*4: If the fax does not detect CNG signal during working of TEL/FAX mode, LCD display indicates
“LIFT HANDSET”.
