40055101TH Rev.4

173 /

4.1.3.12 Plate-Side M and Gear-Idle

(1)

Disassembly procedure

Perform parts replacement while making the base frame assembly stand so that Plate-Side M will face
upward.

a)

First, carry out procedure up to the point
of the 4.1.3.2 (ID Unit, Cover-Rear, Cover-
NCU and Cover-MAIN).

b)

Remove two screws 1 and two claws,
then dismount Plate-Side M.

c)

Dismount Plate-Earth, two idle gears P,
idle gear M, idle gear 3R, idle gear 2R, idle
gear heat idle gear R, and gear R.

(2)

Reassembly procedure

Reverse the disassembly procedure.

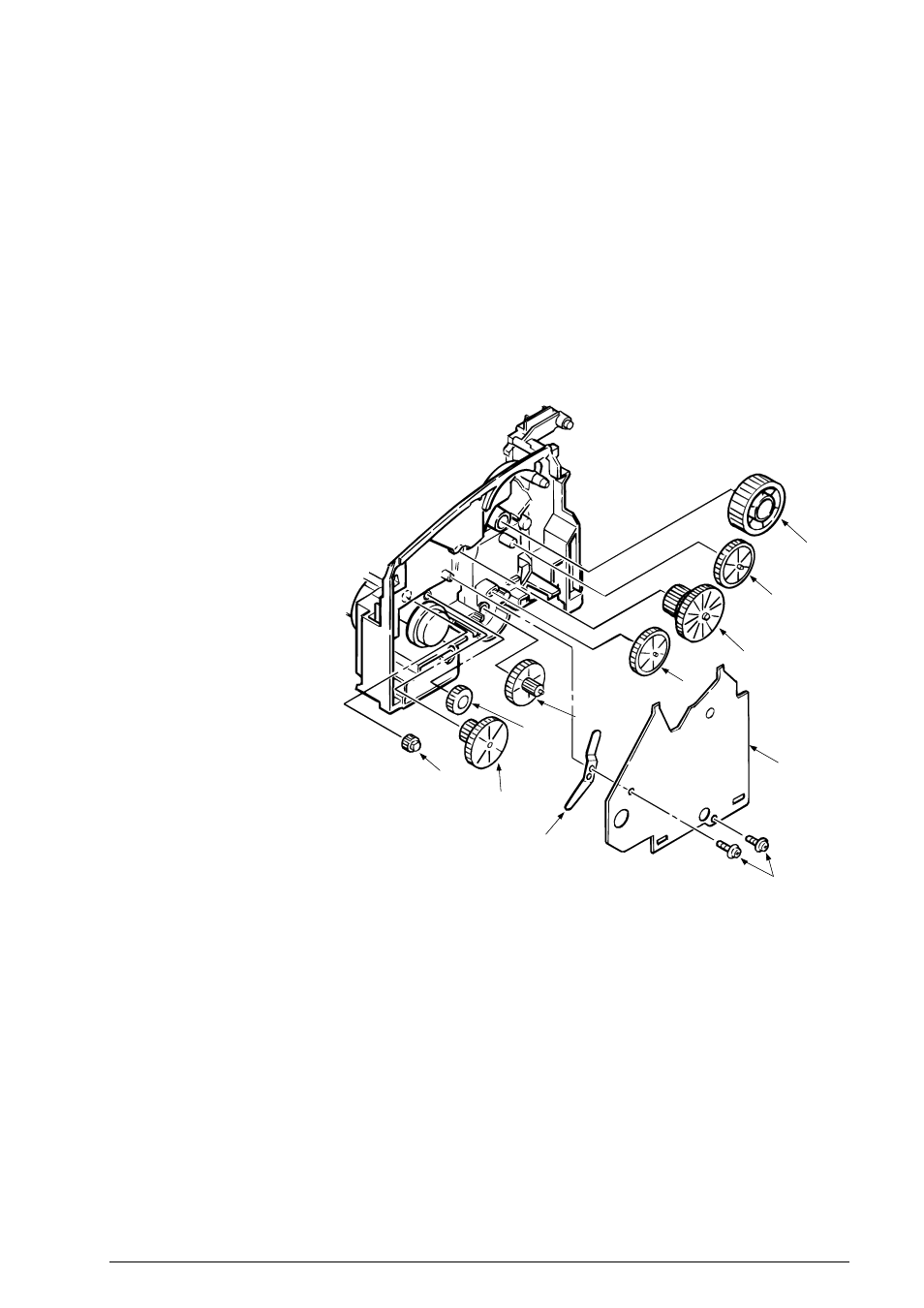

Screw 1

Gear R

Idle gear 2R

Earth plate

Idle gear M

Idle gear P

Idle gear 3P

Plate Side-M

Idle gear P

Idle gear heat

Idle gear R

(CP4.1 Fig. 27)
