40055101TH Rev.4

163 /

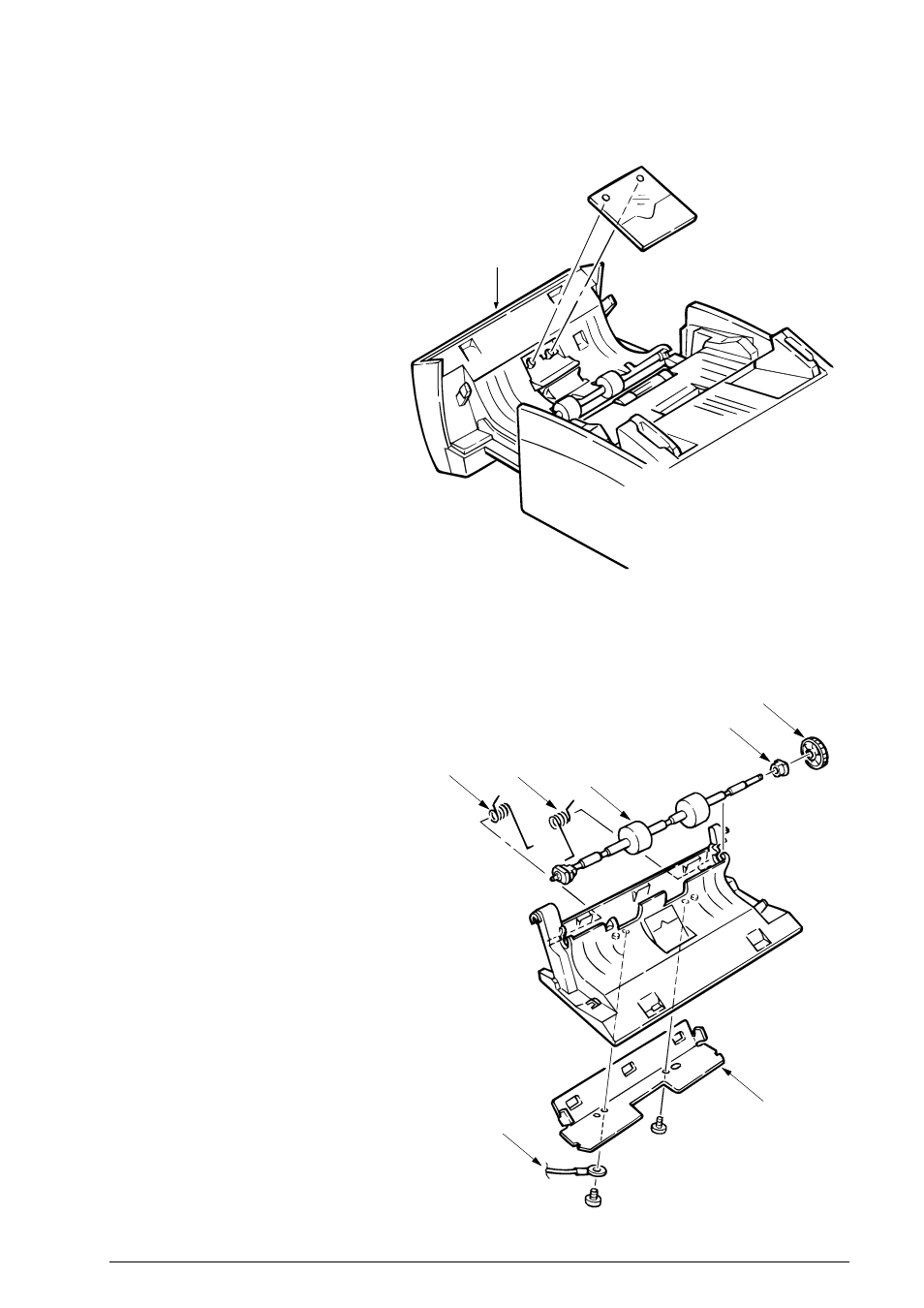

4.1.3.4 Separation Rubber, Roller Assembly Sensor

(1)

Disassembly procedure

a)

Separation rubber:
The separation rubber can be removed
from the Frame Assembly-Scanner (U).

b)

Roller Assembly Sensor:
Remove the Plate-Support by removing
the two screws 1.

Note: Just fitting to two bossess.

c)

Remove the two springs (L) and (R).

d)

Remove the Roller Assembly-Sensor by
removing the Gear (Z31).

(2)

Reassembly procedure

Reverse the disassembly procedure.

Frame Assembly-Scanner (U)

(CP4.1 Fig. 15)

(CP4.1 Fig. 16)

Gear (Z31)

Bearing S

Roller Assembly Sensor

Spring (L)

Spring (R)

Earth Cable

Plate-Support
