In case of OKIFAX 5000 series

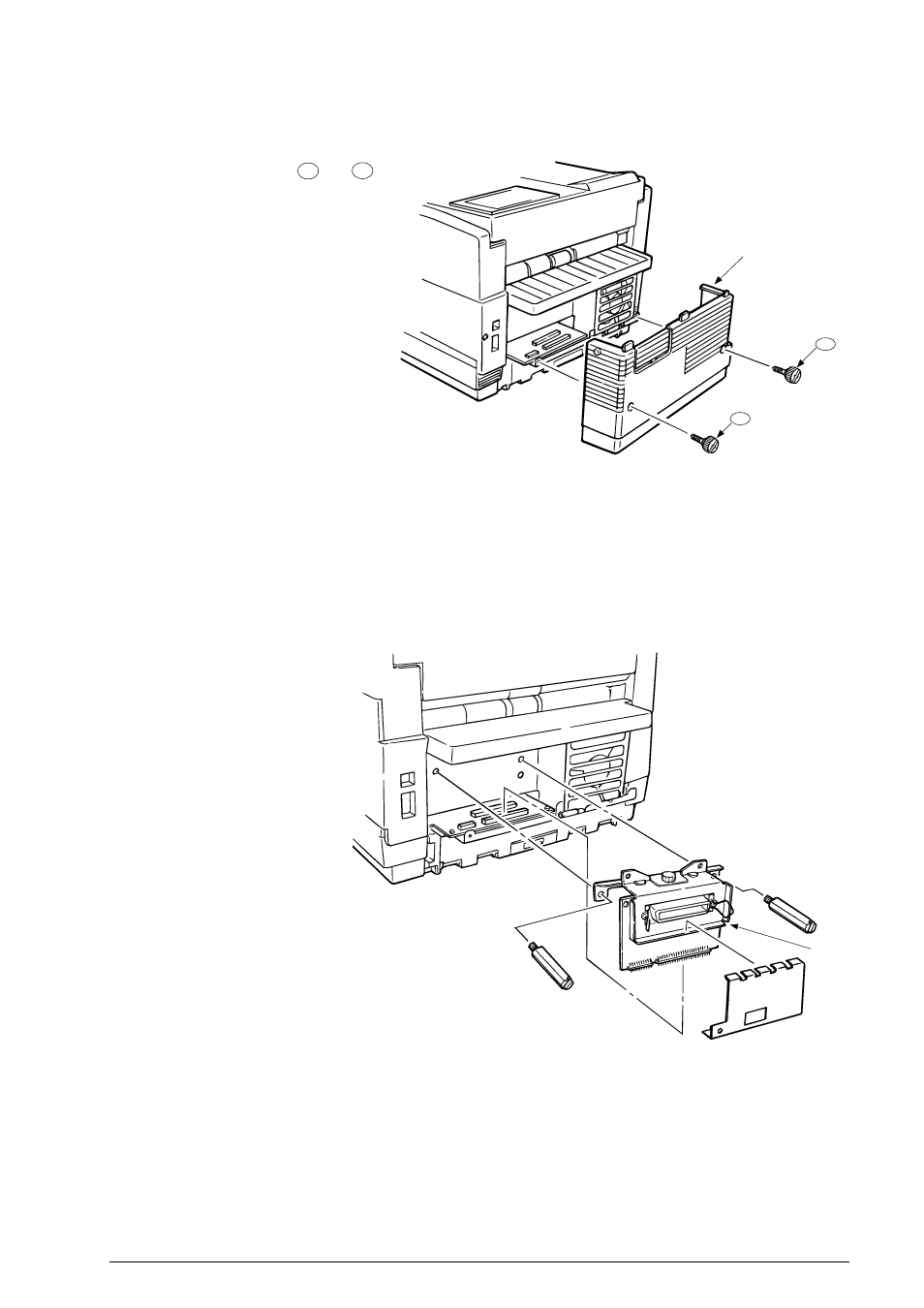

Remove Rear Cover.
Remove the rear cover by removing
the two screws S1 and S2 .
Install CTR board.
First, install CTR board on to the
connector CN12, CN17 of M17
board, and then tighten the two screws
to the separation plate.
Rear Cover
S1
S2
FX050-C2-025
Fig. C.2.3
CTR
Fig. C.2.4
