Table 7.1.22.3 Image Troubles
Fig. A Fig. B Fig. C
Fig. D Fig. E Fig. F

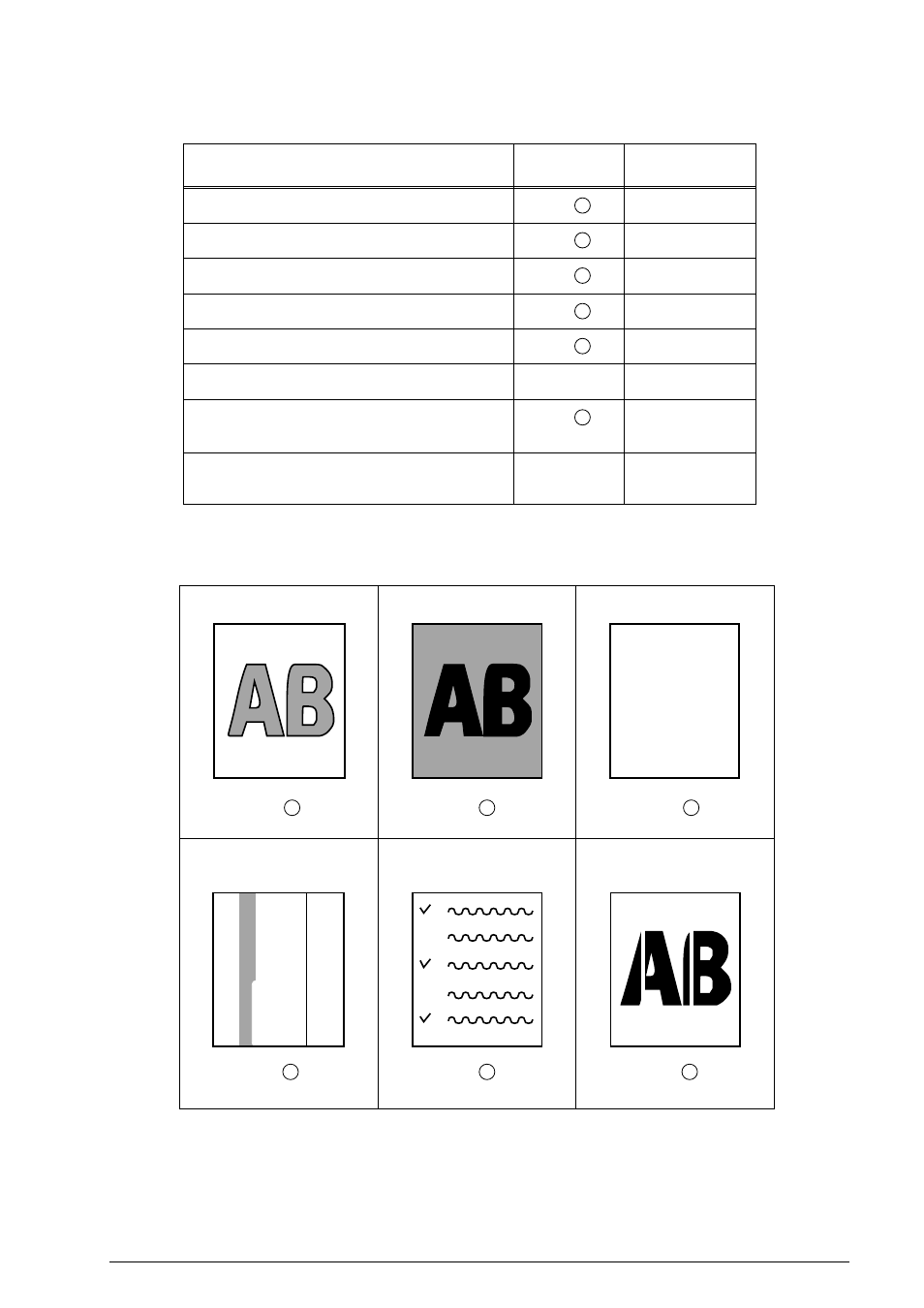

Figure 7.1.22.1 Abnormal Symptoms of Image Troubles (Example)
Abnormal Symptom
Images are light or blurred as a whole.
Troubleshooting
Flow Chart No.
Fig. 7
The blank background is smeared. Fig. 8
Blank paper is output. Fig. 9
Black belts or black stripes in vertical direction. Fig. 10
Periodic abnormal printing. Fig. 11
Some parts not printed. 12
White belts or some white stripes in vertical
direction Fig. 13
Poor fusing (Images are blurred or peeled off
when touched by hands)
14
Reference
Figure
___
___
A
B
C
D
E
F
