4.1.3.2 ID Unit, Rear-Cover, Cover-NCU, Cover-Main and Board-NCU
(1)
Disassembly procedure
a)
Open the cover assembly-top by raising.
b)
Take out the ID unit from the equipment.
c)
Cover-Rear:
Remove the Cover-Rear by removing the
screw 1 and the part of the fixing hooks
(2).
d)
Cover-NCU:
Remove the Cover-NCU by removing the
screw 2 and part of the fixing hooks (4).

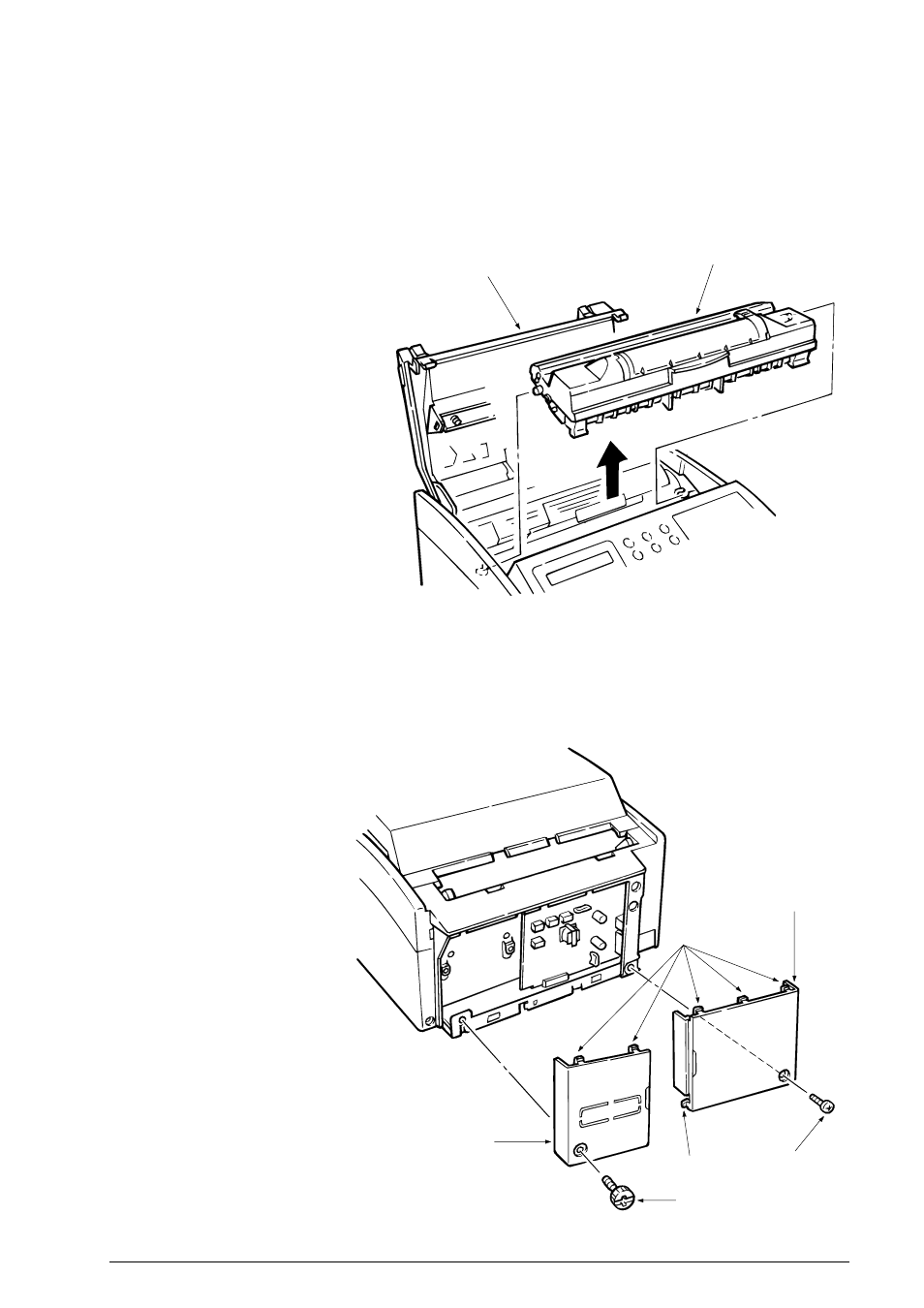

ID unit
Cover assembly-top
(CP4.1 Fig. 05)
(CP4.1 Fig. 06)
Cover-NCU
Cover-Rear
Hook
Fixing hook
Screw 1
Screw 2
