Oki B4100 User Manual
Page 136
40055101TH Rev.4
136 /

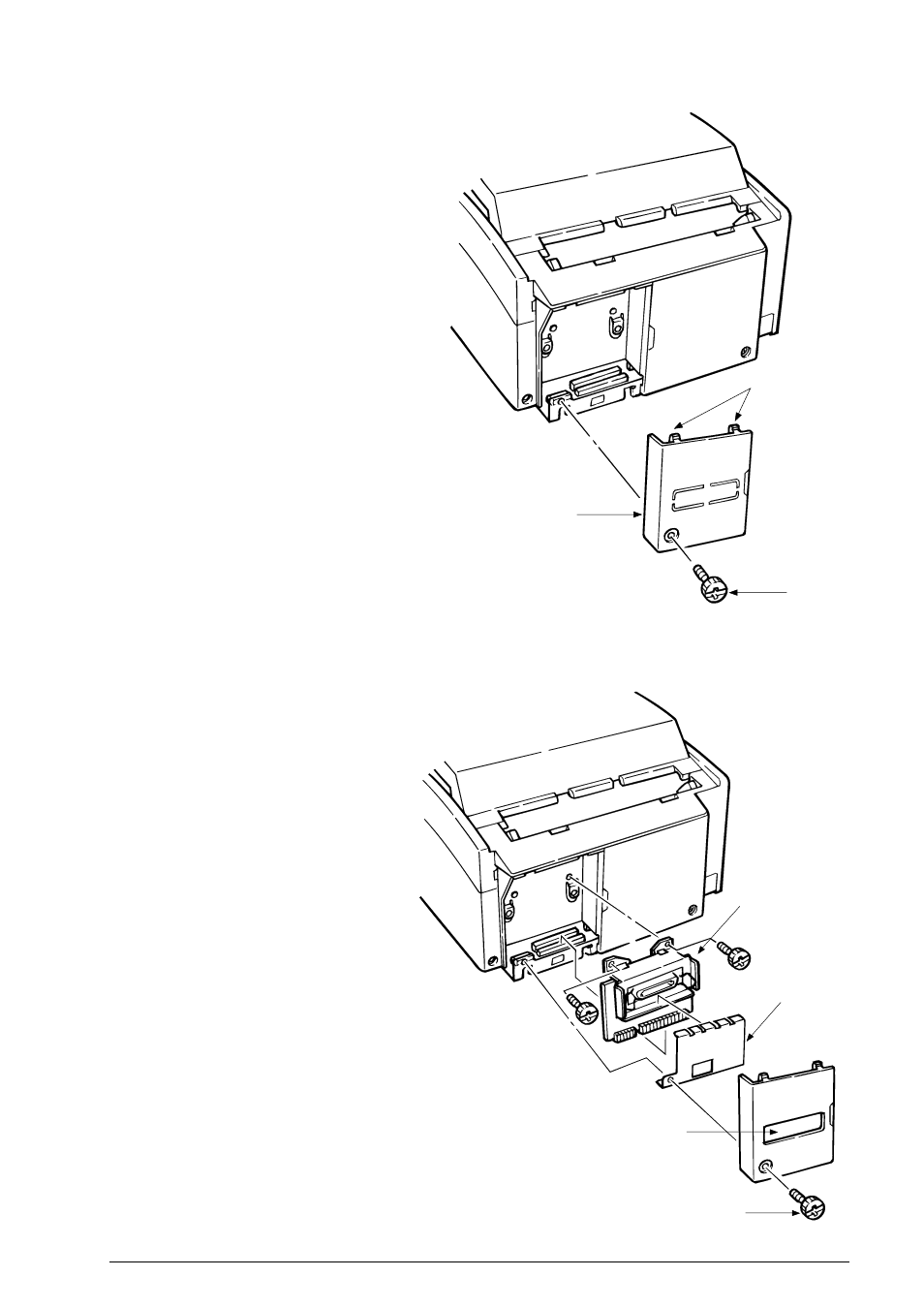

Fig. C.2.2
Fig. C.2.1
Cover-Rear
Fixing hook
Screw 1
Board-CTR
(PC Interface)
Plate-Earth
(PC I/F)
Cut out
Screw 1
2.
Installation of CTR (PC interface) board
(1)
In case of OKIOFFICE44/OKIFAX 4100
Remove Cover-rear.
Remove the Cover-rear by removing the
screw 1.
Install CTR board.
First, install CTR board on to the con-
nector CN11, CN12 of R44 board, and
then tighten the two screws to the sepa-
ration plate.
Push fit the plate-earth (PC I/F)
Note: Insert the tip of a cutter or nipper
between the mold of Cover-Rear
and cut out it.
