40055101TH Rev.4 194 /

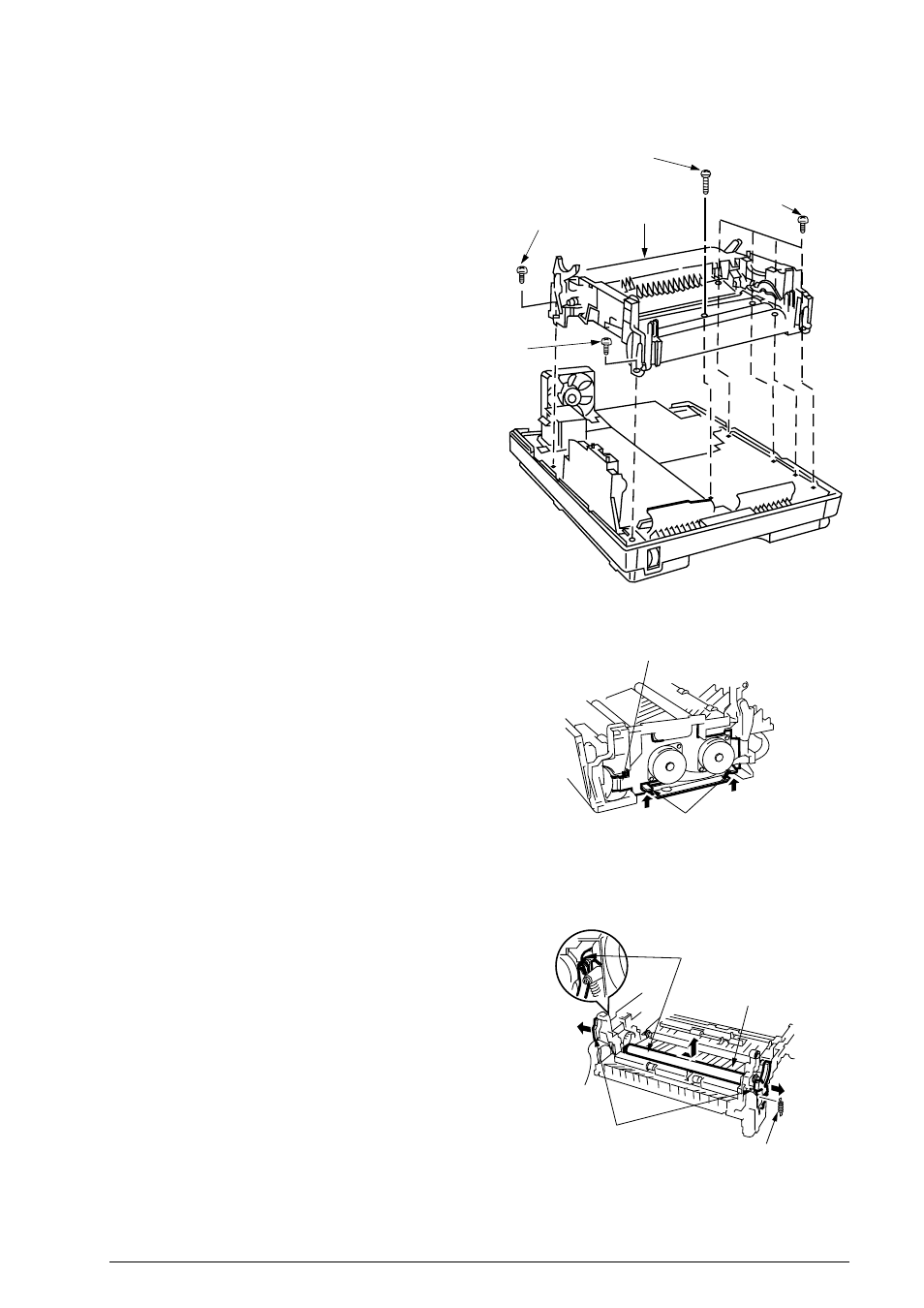

4.2.3.6 Lower Base, Motor Assembly, Back-up Roller, Transfer Roller
(FX050-C4-022)
Upper Cover
Back-up Roller
Reset lever (L and R)
Spring
(FX050-C4-024)
Motor Ass'y
Latches
(1) Disassembly procedure
1) Lower Base, Motor Assembly
a) First, carry out the disassembly
procedure up to the point of the
Fusing Unit removal.
(Refer to sub-item 4.2.3.5.)
b) Disconnect the two connectors
(CN3 and CN4 on the MCNT
board).
c) Remove the Lower Base by re-
moving the seven screws 1 to
3.
d) Press up and hold the two latches
while removing the Motor As-
sembly out.
2) Back-up Roller, Transfer Roller
a) After removing the Lower Base,
remove the spring.
b) Lift the left side of the Back-up
Roller and pull it out leftwards.
Screw 2
Screw 2
Screw 1
Screw 3
Lower Base
(FX-050VP-C4-023)
